Summary of Contents for Iiyama ProLite TF1732MC
- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
-
Page 4: Table Of Contents
SCREEN ADJUSTMENTS ............16 POWER MANAGEMENT FEATURE ..........19 TROUBLE SHOOTING ..............20 RECYCLING INFORMATION .............21 APPENDIX ..................22 SPECIFICATIONS : ProLite TF1732MC ........22 SPECIFICATIONS : ProLite TF1932MC ........23 DIMENSIONS : ProLite TF1732MC ..........24 DIMENSIONS : ProLite TF1932MC ..........24 DIMENSIONS : L-BRACKET............24 COMPLIANT TIMING ..............25... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor

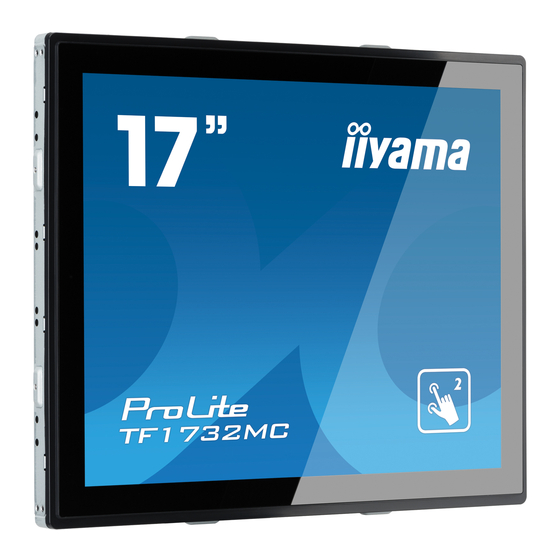

BEFORE YOU OPERATE THE MONITOR FEATURES Supports Resolutions up to 1280 × 1024 High Contrast 1000:1 (Typical: with Touch panel) / Brightness 225cd/m (Typical: with Touch panel) Digital Character Smoothing Automatic Set-up Plug & Play VESA DDC2B Compliant ®... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control OSD Key* <Front> <Back> Menu Button ( Scroll Up / Brightness Button ( Scroll Down / Contrast Button ( Select / Auto Button ( ) Power Switch ( Keyhole for Security Lock You can fasten a security lock and cable to prevent the monitor from being removed NOTE without your permission. -
Page 11: Special Notes
SPECIAL NOTES L-Brackets and screws are necessary to install an open frame monitor. The L-Brackets are designed to be mounted to specific wall types and CAUTION hardware, in accordance with the installation instructions supplied with the Mounting Kit. Using L-Bracket or screws other than those specified in the installation instructions may damage the monitor. - Page 12 L-Brackets and screws are necessary to install an open frame monitor. For details regarding open frame monitor temperature and humidity operating conditions, see the User Manual on IIYAMA website. http://www.iiyama.com. The position of the L-bracket can be either 2.9 mm or 44.9 mm from the front of the monitor depending on...
-
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 14: Computer Setting
Change to the desired signal timing listed on page 25: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 15: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 25. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 16 for SCREEN ADJUSTMENTS. -
Page 16: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS C O N T R A S T B R I G H T N E S S 1 2 8 0 x 1 0 2 4 FH : 6 3K H z F V: 5 9 .9 Hz Adjustment Item Problem / Option Button to Press... - Page 17 A UTO A D J US T Only Analog Input H -P O SI T I ON V-P O SI T IO N H - SI Z E F I NE Adjustment Item Problem / Option Button to Press Direct Adjust H/V-POSITION, H-SIZE and FINE automatically.
- Page 18 OS D H -P OS ITI ON OS D V-P OS ITIO N O SD T IME OU T R E S E T IN P U T S EL E C T Adjustment Item Problem / Option Button to Press OSD is too left OSD H-POSITION OSD is too right...
- Page 19 9300 6500 5500 GREEN BLUE 7500 USER Adjustment Item Problem / Option Button to Press 9300 Bluish white 6500 Reddish white 5500 Greenish white COLOR TEMP. Yellowish white 7500 Too weak GREEN USER Too strong BLUE OPERATING THE MONITOR 15...
-
Page 20: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 21 C Press the AUTO Button. (AUTO ADJUST) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. E Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 22 G Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps F NOTE and G because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 23: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 24: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 25: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. RECYCLING INFORMATION 21... -
Page 26: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite TF1732MC Touch Technology Projected capacitive Screen Light transmission 90% Communication USB serial transfer system Size Category 17" Driving system a-Si TFT Active Matrix Panel Size Diagonal: 17"... -
Page 27: Specifications : Prolite Tf1932Mc
SPECIFICATIONS : ProLite TF1932MC Touch Technology Projected capacitive Screen Light transmission 90% Communication USB serial transfer system Size Category 19" Driving system a-Si TFT Active Matrix Panel Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V Brightness 225cd/m (Typical: with Touch panel) Contrast ratio 1000 : 1 (Typical: with Touch panel) -
Page 28: Dimensions : Prolite Tf1732Mc
DIMENSIONS : ProLite TF1732MC 389.5mm/15.5” 57.0mm/2.2” 339.0mm/13.3” DIMENSIONS : ProLite TF1932MC 433.0mm/17.0” 58.5mm/2.3” 377.5mm/14.9” DIMENSIONS : L-BRACKET <Bracket A> <Bracket B> 1.0 mm 1.0 mm 142.0 mm Screw holes for fixing the bracket 186.0 mm 220.0 mm Screw holes for mounting the monitor 130.0 mm... -
Page 29: Compliant Timing
COMPLIANT TIMING Dot Clock Horizontal Vertical Video Mode Frequency Frequency 25.175MHz 59.940Hz 31.469kHz 640 × 480 75.000Hz 31.500MHz 37.500kHz 72.809Hz 31.500MHz 37.861kHz 56.250Hz 36.000MHz 35.156kHz 40.000MHz 60.317Hz 37.879kHz SVGA 800 × 600 75.000Hz 49.500MHz 46.875kHz VESA 72.188Hz 50.000MHz 48.077kHz 60.004Hz 65.000MHz 48.363kHz 1024 ×...
