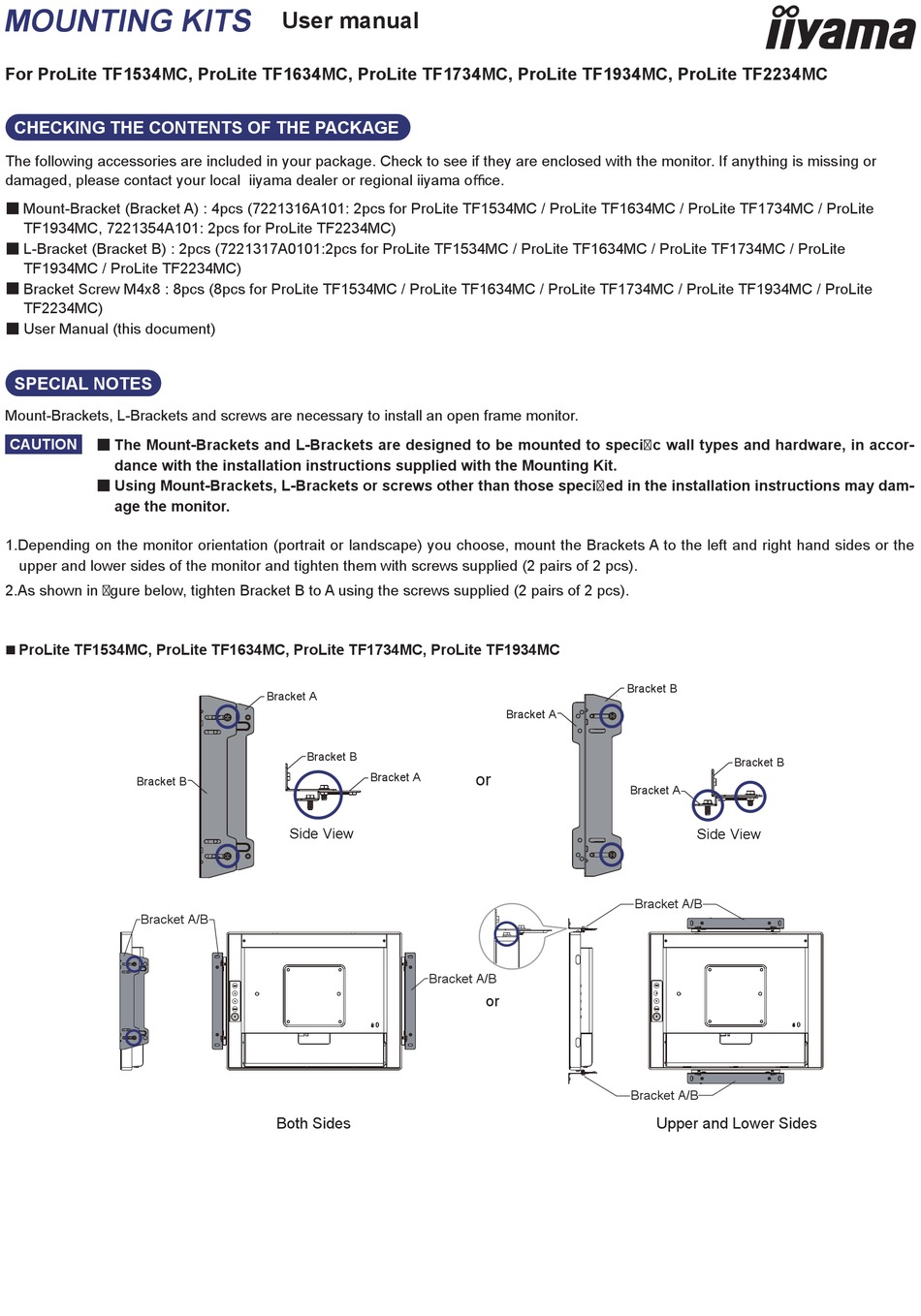

MOUNTING KITS

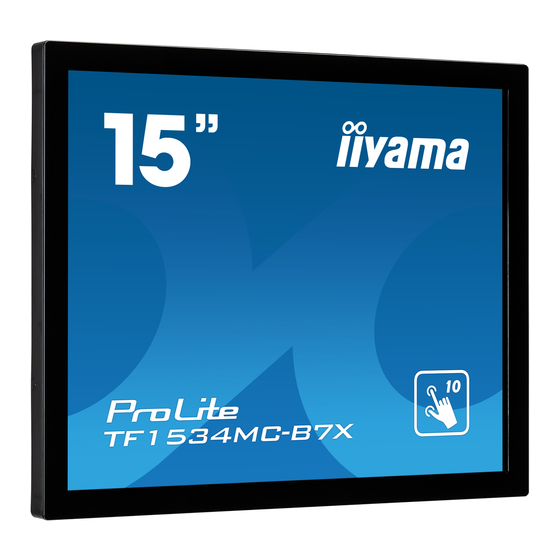

For ProLite TF1534MC, ProLite TF1634MC, ProLite TF1734MC, ProLite TF1934MC, ProLite TF2234MC
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or
damaged, please contact your local iiyama dealer or regional iiyama o ce.
■ Mount-Bracket (Bracket A) : 4pcs (7221316A101: 2pcs for ProLite TF1534MC / ProLite TF1634MC / ProLite TF1734MC / ProLite
TF1934MC, 7221354A101: 2pcs for ProLite TF2234MC)
■ L-Bracket (Bracket B) : 2pcs (7221317A0101:2pcs for ProLite TF1534MC / ProLite TF1634MC / ProLite TF1734MC / ProLite
TF1934MC / ProLite TF2234MC)
■ Bracket Screw M4x8 : 8pcs (8pcs for ProLite TF1534MC / ProLite TF1634MC / ProLite TF1734MC / ProLite TF1934MC / ProLite
TF2234MC)
■ User Manual (this document)
SPECIAL NOTES
Mount-Brackets, L-Brackets and screws are necessary to install an open frame monitor.
CAUTION ■ The Mount-Brackets and L-Brackets are designed to be mounted to speci c wall types and hardware, in accor-
dance with the installation instructions supplied with the Mounting Kit.
■ Using Mount-Brackets, L-Brackets or screws other than those speci ed in the installation instructions may dam-
age the monitor.
1.Depending on the monitor orientation (portrait or landscape) you choose, mount the Brackets A to the left and right hand sides or the
upper and lower sides of the monitor and tighten them with screws supplied (2 pairs of 2 pcs).
2.As shown in gure below, tighten Bracket B to A using the screws supplied (2 pairs of 2 pcs).
n ProLite TF1534MC, ProLite TF1634MC, ProLite TF1734MC, ProLite TF1934MC
Bracket B
Bracket A/B
User manual
Bracket A
Bracket B
Bracket A
Side View
Both Sides
Bracket A
or
Bracket A/B
or
Bracket B
Bracket B
Bracket A
Side View
Bracket A/B
Bracket A/B
Upper and Lower Sides
