Summary of Contents for Iiyama ProLite TF1934MC-B2X

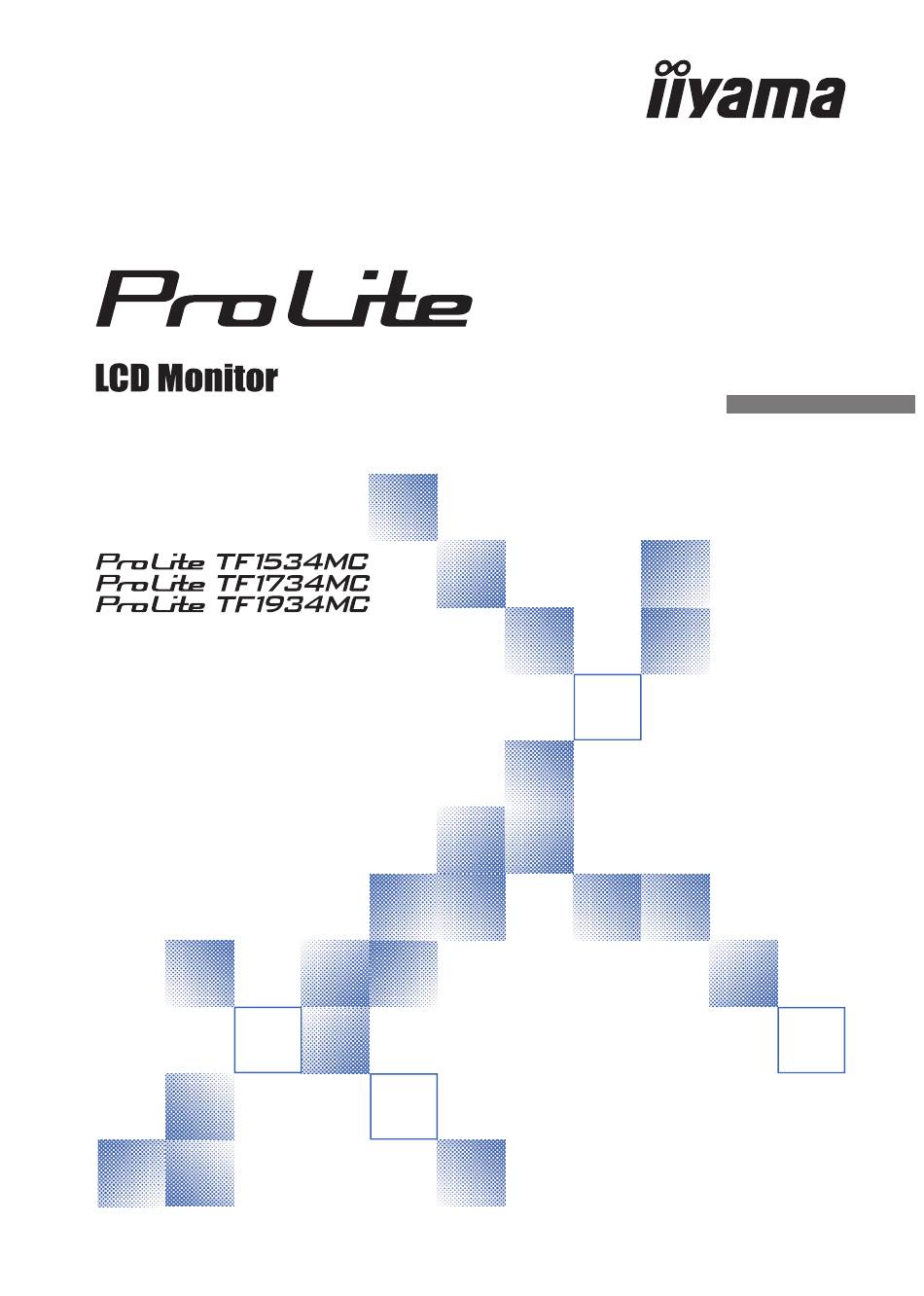

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLTF1534, PLTF1734, PLTF1934 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......5 SPECIAL NOTES ON THE TOUCH PANEL ........5 INSTALLATION ................6 CONTROLS AND CONNECTORS..........7 SPECIAL NOTES ................8... -
Page 5: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. To protect the Touch screen surface, do not scratch or rub the screen with a hard NOTE object. -
Page 8: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES Supports Resolutions up to 1024 × 768 : ProLite TF1534MC Supports Resolutions up to 1280 × 1024 : ProLite TF1734MC / ProLite TF1934MC High Contrast 700:1 (Typical) / Brightness 330cd/m (Typical: with Touch panel) : ProLite TF1534MC ... -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Installation
INSTALLATION WARNING Before installation, make sure the wall, ceiling or desktop arm is strong enough to hold the necessary weight of the display and the mount. < WALL MOUNTING > WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L”... -
Page 11: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control Touch V01* <Front> <Back> Menu Button (MENU)* Scroll Up / Brightness Button ( Scroll Down / Contrast Button ( Select Button (SELECT)* Power Switch ( Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 12: Special Notes
SPECIAL NOTES L-Brackets and screws are necessary to install an open frame monitor. The L-Brackets are designed to be mounted to specific wall types and CAUTION hardware, in accordance with the installation instructions supplied with the Mounting Kit. Using L-Bracket or screws other than those specified in the installation instructions may damage the monitor. - Page 13 L-Brackets and screws are necessary to install an open frame monitor. For details regarding open frame monitor temperature and humidity operating conditions, see the User Manual on IIYAMA website. http://www.iiyama.com. <ProLite TF1534MC-B6X> The position of the L-bracket can be either 1.3 mm or 40.7 mm from the front of the monitor depending on which screw holes you choose for mounting it.
-
Page 14: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. - Page 15 [Fitting and Removal of Cable Cover] Step 1 Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. < Removal > Cable Cover Remove the cable cover as shown in Step1.
-
Page 16: Computer Setting
Change to the desired signal timing listed on page 29: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 17: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 29. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 19 for SCREEN ADJUSTMENTS. - Page 18 Direct LOCK MODE: Simultaneously press the MENU button and the button when an image is displayed through VGA, HDMI or DisplayPort. * The OSD menu is not displayed when the OSD is locked. Press the MENU button and the button simultaneously again.
-
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Option Picture Advanced Contrast Brightness H-Position V-Position Phase Clock Auto Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast Direct Too intense Too dark Brightness* Direct Too bright Too left H-Position* Too right Too low V-Position* Too high... - Page 20 Advanced Picture Advanced Option Color Temp User Green Blue Sharpness Adjustment Item Problem / Option Button to Press 5500 Greenish white 6500 Reddish white Yellowish white 7500 Color Temp 9300 Bluish white Too weak Green User Too strong Blue You can change the picture quality from 0 to 100 (soft to sharp).
- Page 21 Picture Advanced Option OSD Timeout OSD Position User OSD H-Position OSD V-Position Adjustment Item Problem / Option Button to Press You can set the OSD display duration time OSD Timeout between 5 and 60 seconds. You can set the OSD position. OSD Position User (Upper left / Lower left / Upper right / Lower right / Center)
- Page 22 Option Picture Advanced Option Reset Language English Source Select DisplayMode Factory Adjustment Item Problem / Option Button to Press Return to Menu. Reset Factory-preset data is restored. English English Español Spanish Japanese Français French Language Traditional Chinese Deutsch German 繁中 Italiano Italian Simplifi...
-
Page 23: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 24 Perform the auto adjustment. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 25 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 26: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is confi... -
Page 27: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 28: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. 24 RECYCLING INFORMATION... -
Page 29: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite TF1534MC-B6X Technology Projected capacitive 10pt touch Light transmission Touch Screen Communication system Surface fi nish Anti fi ngerprint coating Size Category 15" Panel technology Size Diagonal: 15"... -
Page 30: Specifications : Prolite Tf1734Mc-B6X
SPECIFICATIONS : ProLite TF1734MC-B6X Technology Projected capacitive 10pt touch Light transmission Touch Screen Communication system Surface fi nish Anti fi ngerprint coating Size Category 17" Panel technology Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V 350cd/m (Typical: without Touch panel), Brightness Panel 315cd/m... -
Page 31: Specifications : Prolite Tf1934Mc-B6X
SPECIFICATIONS : ProLite TF1934MC-B6X Technology Projected capacitive 10pt touch Light transmission Touch Screen Communication system Surface fi nish Anti fi ngerprint coating Size Category 19" Panel technology Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V 350cd/m (Typical: without Touch panel), Brightness Panel 315cd/m... -
Page 32: Dimensions : Prolite Tf1534Mc
DIMENSIONS : ProLite TF1534MC 337.5mm/13.3” 44.5mm/1.7” 305.0mm/12.0” DIMENSIONS : ProLite TF1734MC 369.0mm/14.5” 47.5mm/1.9” 339.0mm/13.3” DIMENSIONS : ProLite TF1934MC 416.0mm/16.4” 46.5mm/1.8” 377.5mm/14.9” 28 APPENDIX... -
Page 33: Dimensions : L-Bracket
DIMENSIONS : L-BRACKET <Bracket A> <Bracket B> 142.0mm Screw holes for 1.0 mm 1.0mm fixing the bracket 186.0 mm 170.0 mm 170.0mm 130.0 mm Screw holes for mounting the monitor Screw holes for mounting the chassis 4.3 mm COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock...
