Summary of Contents for Iiyama TF1934MC-B5X

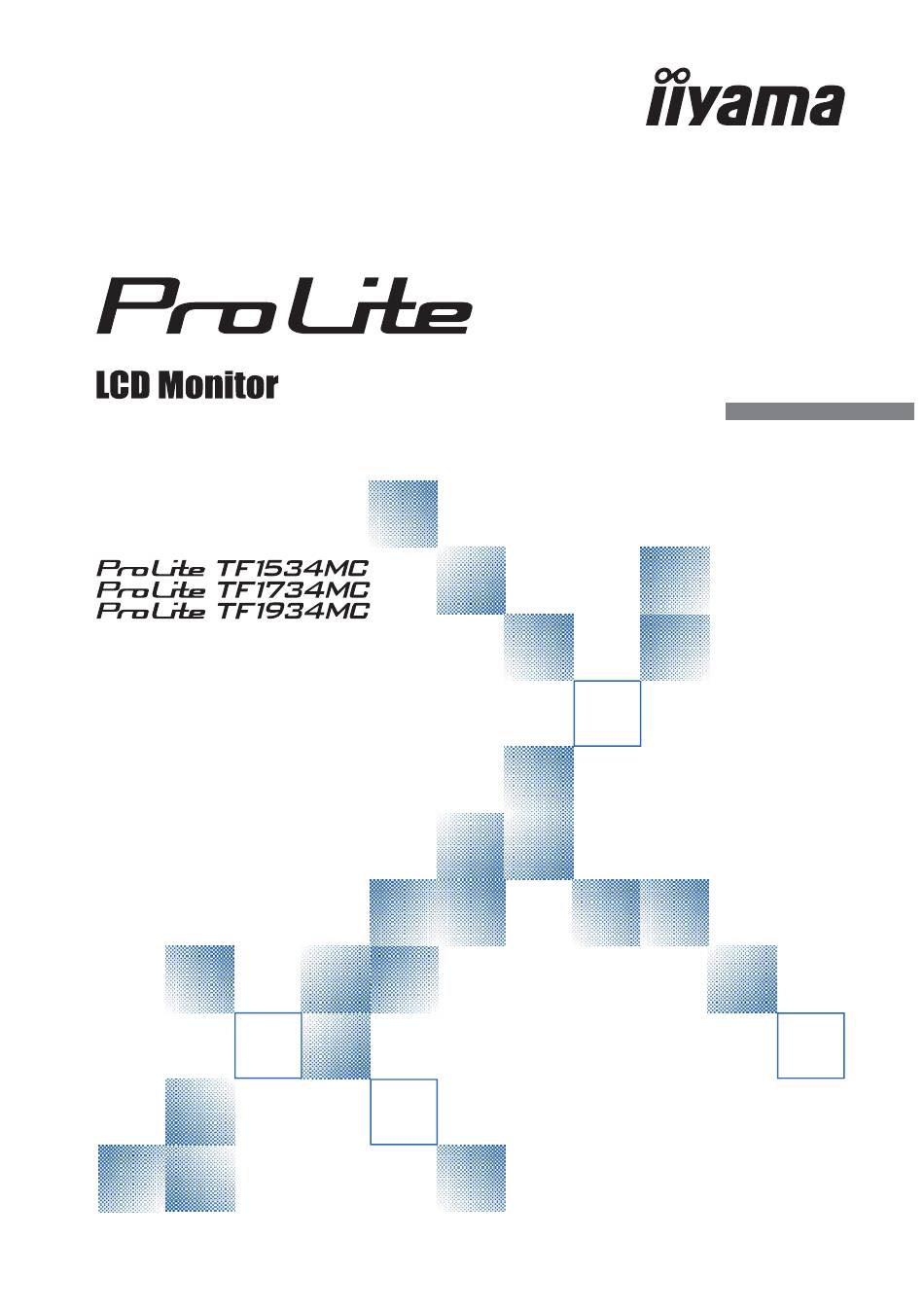

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PLTF1534, PLTF1734, PLTF1934 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 BUILT-IN EQUIPMENT ..............5 ROTATING THE DISPLAY ..............5 CONTROLS AND CONNECTORS..........6 SPECIAL NOTES ................7... -
Page 5: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. To protect the Touch screen surface, do not scratch or rub the screen with a hard NOTE object. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 8mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS Remote Control Touch V01* <Front> <Back> Menu Button (MENU)* Scroll Up / Brightness Button ( Scroll Down / Contrast Button ( Select Button (SELECT)* Power Switch ( Power Indicator NOTE Green: Normal operation Orange: Power Management USB Connector (USB) Remote Control Touch V01 Connector (RJ11) VGA Connector (VGA) HDMI Connector (HDMI) -
Page 11: Special Notes
SPECIAL NOTES L-Brackets and screws are necessary to install an open frame monitor. The L-Brackets are designed to be mounted to specific wall types and CAUTION hardware, in accordance with the installation instructions supplied with the Mounting Kit. Using L-Bracket or screws other than those specified in the installation instructions may damage the monitor. - Page 12 L-Brackets and screws are necessary to install an open frame monitor. For details regarding open frame monitor temperature and humidity operating conditions, see the User Manual on IIYAMA website. http://www.iiyama.com. The position of the L-bracket can be either 2.9 mm or 44.9 mm from the front of the monitor depending on...
-
Page 13: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. - Page 14 [Fitting and Removal of Cable Cover] Step 1 Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. < Removal > Cable Cover Remove the cable cover as shown in Step1.
-
Page 15: Computer Setting
Change to the desired signal timing listed on page 27: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 27. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS C O N T R A S T BRIG HTNESS 1 2 8 0 x 1 0 2 4 F H : 6 3K H z F V: 5 9. 9H z Adjustment Item Problem / Option Button to Press Too dull CONTRAST... - Page 18 Only Analog Input A U TO A D J U S T H-POSITION V-POSITION H-SIZE FINE Adjustment Item Problem / Option Button to Press AUTO ADJUST * Adjust H/V-POSITION, H-SIZE and FINE automatically. Too left H-POSITION Too right Too low V-POSITION Too high Too narrow...
- Page 19 OSD H-POSITION OSD V-POSITION O SD TIME O U T R E SE T IN P U T SE LE C T Adjustment Item Problem / Option Button to Press OSD is too left OSD H-POSITION OSD is too right OSD is too low OSD V-POSITION OSD is too high...
- Page 20 ENGLISH ESPAÑOL FRANÇAIS DEUTSCH ITALIANO Adjustment Item Problem / Option Button to Press ENGLISH English ESPAÑOL Spanish Japanese FRANÇAIS French OSD LANGUAGE Traditional Chinese DEUTSCH German Simplifi ed Chinese ITALIANO Italian 9300 6500 5500 GREEN 7500 BLUE USER Adjustment Item Problem / Option Button to Press 9300...
-
Page 21: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 22 Press the SELECT Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 23 Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 24: Power Management Feature
POWER MANAGEMENT FEATURE When your computer is not in use, the power management feature will automatically reduce the power consumption of your monitor. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. The power management function, including any timer settings is confi... -
Page 25: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 26: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 22 RECYCLING INFORMATION... -
Page 27: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite TF1534MC Technology Projected capacitive 10pt touch Touch Light transmission Screen Communication system Size Category 15" Panel technology Size Diagonal: 15" (38cm) Pixel pitch 0.297mm H × 0.297mm V 370cd/m (Typical: without Touch panel), Brightness... -
Page 28: Specifications : Prolite Tf1734Mc
SPECIFICATIONS : ProLite TF1734MC Technology Projected capacitive 10pt touch Touch Light transmission Screen Communication system Size Category 17" Panel technology Size Diagonal: 17" (43cm) Pixel pitch 0.264mm H × 0.264mm V 250cd/m (Typical: without Touch panel), Brightness Panel 225cd/m (Typical: with Touch panel) Contrast ratio 1000 : 1 (Typical) Viewable angle... -
Page 29: Specifications : Prolite Tf1934Mc

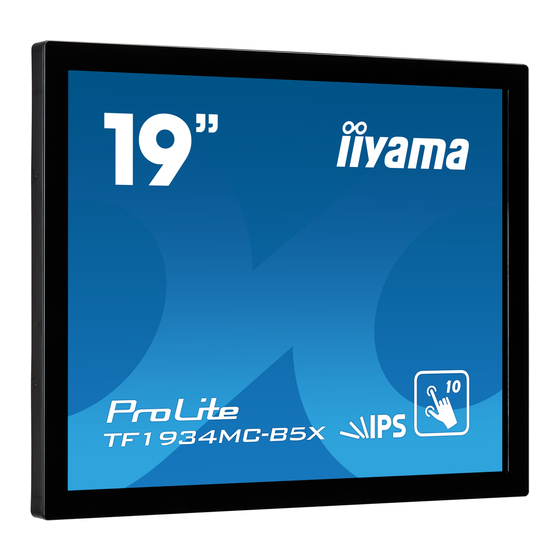

SPECIFICATIONS : ProLite TF1934MC Technology Projected capacitive 10pt touch Touch Light transmission Screen Communication system Size Category 19" Panel technology Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V 250cd/m (Typical: without Touch panel), Brightness Panel 225cd/m (Typical: with Touch panel) Contrast ratio 1000 : 1 (Typical) Viewable angle... -
Page 30: Dimensions : Prolite Tf1534Mc
DIMENSIONS : ProLite TF1534MC 337.5mm/13.3” 44.5mm/1.7” 305.0mm/12.0” DIMENSIONS : ProLite TF1734MC 369.0mm/14.5” 47.5mm/1.9” 339.0mm/13.3” DIMENSIONS : ProLite TF1934MC 416.0mm/16.4” 46.5mm/1.8” 377.5mm/14.9” 26 APPENDIX... -
Page 31: Dimensions : L-Bracket
DIMENSIONS : L-BRACKET <Bracket A> <Bracket B> 1.0 mm 1.0 mm 142.0 mm Screw holes for fixing the bracket 186.0 mm 220.0 mm Screw holes for mounting the monitor 130.0 mm Screw holes for mounting the chassis 4.3 mm COMPLIANT TIMING Horizontal Vertical Video Mode...
