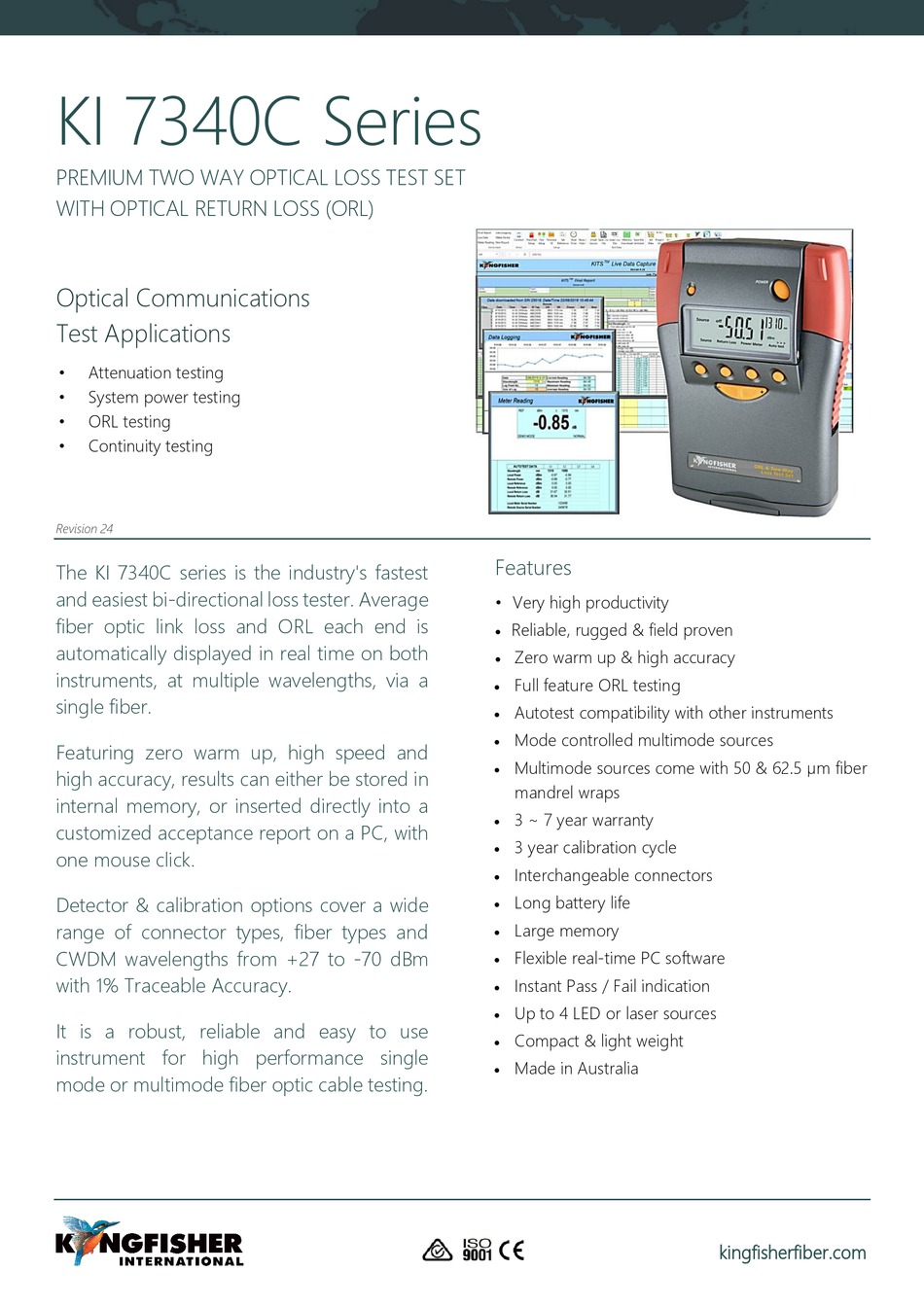

KI 7340C Series
PREMIUM TWO WAY OPTICAL LOSS TEST SET
WITH OPTICAL RETURN LOSS (ORL)
Optical Communications
Test Applications
• Attenuation testing
• System power testing
• ORL testing
• Continuity testing
Revision 24
The KI 7340C series is the industry's fastest
and easiest bi-directional loss tester. Average
fiber optic link loss and ORL each end is
automatically displayed in real time on both
instruments, at multiple wavelengths, via a
single fiber.
Featuring zero warm up, high speed and
high accuracy, results can either be stored in
internal memory, or inserted directly into a
customized acceptance report on a PC, with
one mouse click.
Detector & calibration options cover a wide
range of connector types, fiber types and
CWDM wavelengths from +27 to -70 dBm
with 1% Traceable Accuracy.
It is a robust, reliable and easy to use
instrument for high performance single
mode or multimode fiber optic cable testing.
Features
• Very high productivity
Reliable, rugged & field proven

Zero warm up & high accuracy

Full feature ORL testing

Autotest compatibility with other instruments

Mode controlled multimode sources

Multimode sources come with 50 & 62.5 µm fiber

mandrel wraps
3 ~ 7 year warranty

3 year calibration cycle

Interchangeable connectors

Long battery life

Large memory

Flexible real-time PC software

Instant Pass / Fail indication

Up to 4 LED or laser sources

Compact & light weight

Made in Australia

