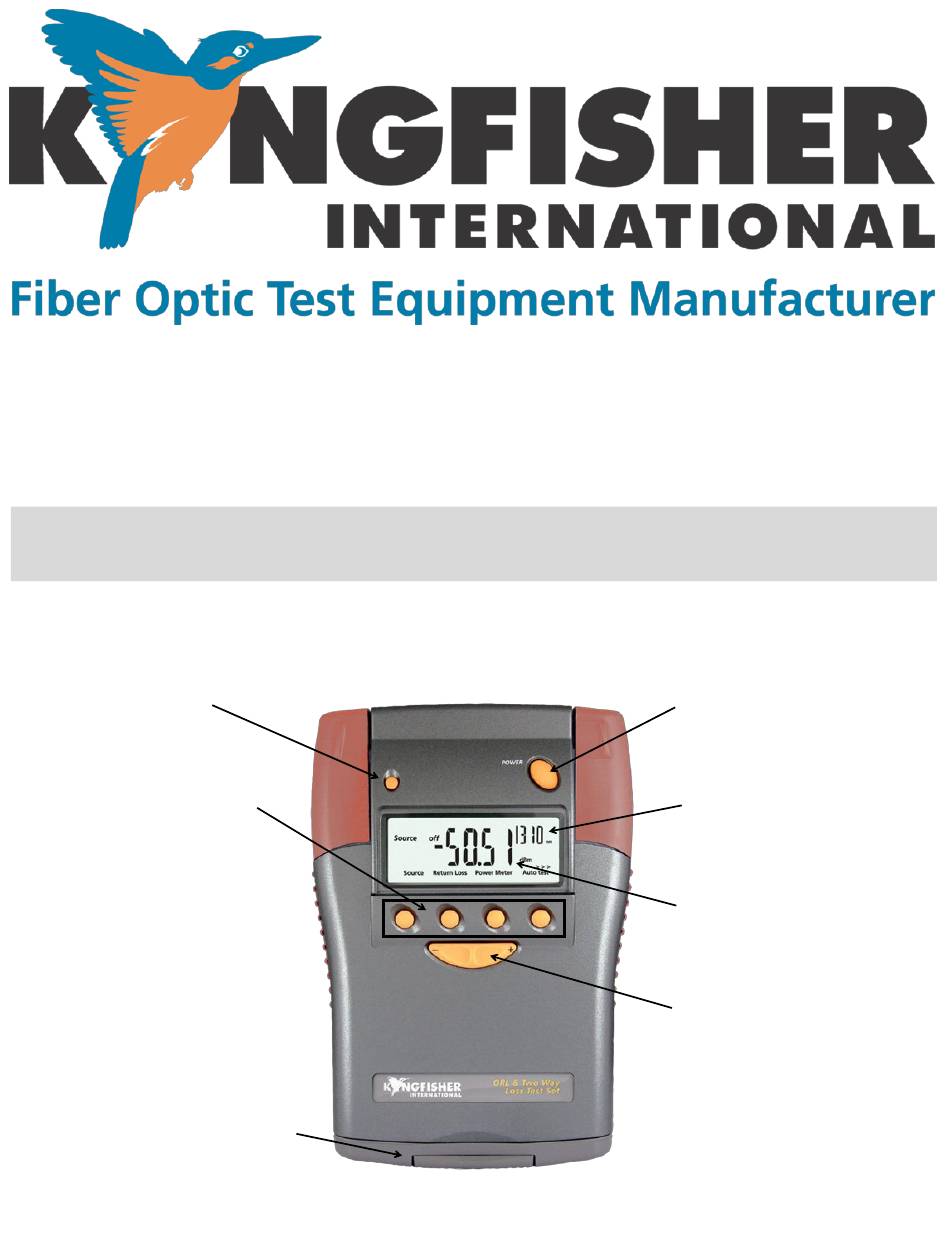

- Page 1 QUICK REFERENCE GUIDE KI7347C Series Optical Two Way Loss Test Set with ORL Machine Layout Basics Save Test Data Power Hard Key Functions Wavelength Tested Light Source ORL Meter Measurement Power Meter Auto Test Toggle Buttons Battery Compartment Latch...
- Page 2 Layout Basics Continued Screen Cover Save Test Data Hidden Key Pad Memory Recall Power Exit Toggle Test Results Backlight Hard Key Functions Light Source Power Meter ORL Meter Bi-Directional Test Port...
- Page 3 Layout Basics Continued Interchangeable Interchangeable Mating Sleeve Mating Sleeve Mating Sleeve Mating Sleeve Release Release Mating Sleeve in Closed Position Mating Sleeve in Pivot Position Provides protection for sleeve and connector Easy access for cleaning, inspecting and changing adapters...
- Page 4 Reference Procedures Loopback Reference Procedure for Two Way Measurements NOTE: Light Source/Two Way/ ORL port must use a connector with APC polish NOTE: For two or one direction testing involving two instruments, referencing should be independently performed on both Loss Test Sets. The following will set reference at all wavelengths: Clean and inspect patch cables and testing ports before connecting any cables.
-
Page 5: Measurement Procedures
Reference Procedures Continued Side by Side Reference for Single Direction Testing Connect the Light Source/Two Way/ORL port to the power meter of the second instrument. Select [POWER] on both instruments On Light source, Press [Auto test] On Power meter, press [Abs/Rel] and [Set Ref] for 3 seconds. Meter will briefly display ‘BUSY’ and then 0.00 dB R. - Page 6 Two Way Test Measurements Continued Both units also display ‘A B’. ‘A’ will be flashing on the unit where Autotest was initiated, and it has be- come the A unit. The other unit will flash ‘B’, and it has become the B unit. This only indicated which unit is A and B not the direction of test results being displayed.
-
Page 7: Memory Functions
One Way Test Measurements ONE WAY LOSS IN AUTOTEST This method is applicable for loss measurements where data communication is one way only. Testing on one fiber can be achieved with: Single Two Way Loss Test Set Two instruments used as a combination of Light source and Power meter Perform Side by Side Reference for single direction testing. - Page 8 Transferring Saved Data Data transfer between the KI 7347 and Kits external software package must be completed using the USB to RS 232 cable. Install KITS software from CD provided with the Test Set or go to http://www.kingfisherfiber.com Once KITS program has been loaded on the computer open the program. KITS program will display the wel- come screen with option for setting up the report.
- Page 9 This menu will allow you to select the parameters for testing as well as the report build. Be sure to con- firm your Test Directions are set properly including ORL Tests at A and B locations. Otherwise this data will not be transferred. Reference End may be different depending on the reference style chosen.
- Page 10 Now the computer should display the Live Data Worksheet without test results. To import results from the meter select Add-ins to access the KITS menu. Next Select Test Data and then Memory Download to start loading results from the machine. Once activating the memory download be sure to indicate where to start memory download from, how many results or fibers to be downloaded, wavelengths to be downloaded and what fiber ID to start at.
- Page 11 The Final Report Final report will populate with the values downloaded from the machine. This example shows failing results based on the Pass/Fail criteria the user established in previous menus. In this case Insertion Loss was exces- sive on all fibers at 1310 and one fiber/wavelength failed the ORL test. Certain items such as Statistical Analysis can be hidden to make the report smaller.
