REFRIGERATOR
USER'S MANUAL
PTL 1343

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTL 1343 and is the answer not in the manual?

Questions and answers

Related Manuals for Philco PTL 1343

Summary of Contents for Philco PTL 1343

  • Page 1 REFRIGERATOR USER’S MANUAL PTL 1343...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user‘s manual.

  • Page 3: Table Of Contents

    CONTENTS PART 1: SAFETY AND WARNING INFORMATION ..................2 PART 2: DESCRIPTION OF THE APPLIANCE ....................9 PART 3: CONTROL PANEL ..........................10 PART 4: FIRST USE AN INSTALLATION ......................11 PART 5: DAILY USE ............................14 PART 6: PROCEDURE FOR SWITCHING THE DOOR OPENING DIRECTION ..........16 PART 7: INSTALLING THE DOOR HANDLE ....................

  • Page 4: Part 1: Safety And Warning Information

    PART 1: SAFETY AND WARNING INFORMATION This appliance is in accordance EU guidelines For your safety and correct usage, before installing and fi rst using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 5 • If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child General safety WARNING!
  • Page 6 • WARNING — Do not damage the refrigerant circuit. • WARNING — Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. • WARNING — The refrigerant and insulation blowing gas are fl ammable.
  • Page 7 Caution: risk of fi re If the refrigerant circuit should be damaged: - Avoid opening fl ames and sources of ignition. - Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifi cations or modify this product in any way.
  • Page 8 be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. Daily use •...
  • Page 9 • The appliance is heavy. Care should be taken when moving it. • Do not remove nor touch items from the freezer comartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. • Never use the base, drawers, doors etc. to stand on or as supports. •...
  • Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing. •...

  • Page 11: Part 2: Description Of The Appliance

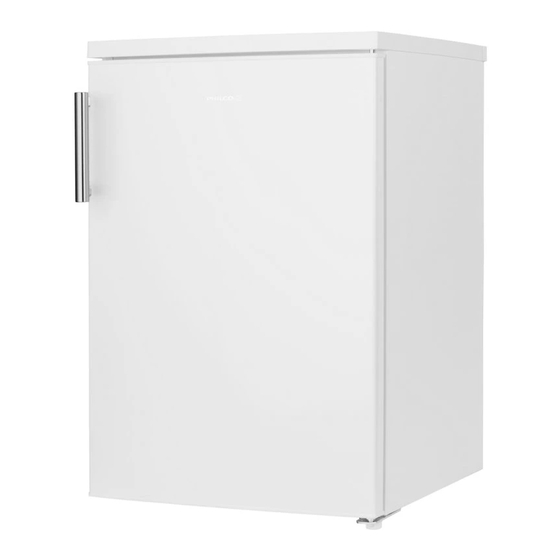

    PART 2: DESCRIPTION OF THE APPLIANCE View of the appliance decorative board(some models have) Storage shelf Bulb & temperature regulator Crisper cover Crisper Adjustable feet Egg tray Door handle(some models have) Upper door rack 10. Door 11. Lower door rack NOTE: Due to continual modifi cation of our products, your refrigerator may be slightly diff erent from this instruction Manual, but its functions and usage methods remain the same.

  • Page 12: Part 3: Control Panel

    PART 3: CONTROL PANEL Starting up and temperature regulation Insert the plug of the connection lead into the plug socket with a protective grounding contact. When the refrigerator compartment door is opened, the internal lighting is switched on. The temperature selector knob is located on the left side of the refrigerator compartment. Setting “0”...

  • Page 13: Part 4: First Use An Installation

    PART 4: FIRST USE AN INSTALLATION Cleaning before use • Before using the appliance for the fi rst time, wash the interior and all internal accessories with lukewarm water and meutral soap in order to remove the typical smell of a brand new product, then dry thoroughly. Installation Positioning WARNING! Before installing, read the instruction carefully for your...
  • Page 14 Insalling the rubber supporting pad • Screw provided in a plastic bag with your appliance, you can install these accessories according to the following procedure. NOTE: There is no need to install these accessories under normal usage. Only under the extreme circumstances, cabinet empty while load on door with total mass of 15 kg and opening the door about 90 degree ,this refrigerator may take risk of tipping.
  • Page 15 Electrical connection CAUTION! Any electrical work required to install this appliance should be carried out by qualifi ed or authorized personnel. WARNING! This appliance must be grounded. The manufacturer declines any liability should these safety measures not be observed. EN - 13 Copyright ©...

  • Page 16: Part 5: Daily Use

    PART 5: DAILY USE Accessories Movable shelves/trays • Various glass, plastic storage shelves or wire trays are included with your appliance diff erent models have diff erent combinations and diff erent models have diff erent features. • The walls of the refrigerator are equipped with a series of runner so that the shelves can be positioned as desired.
  • Page 17 Crisper • For storing fruit and vegetables. Refrigerator compartment • For storing the food that does not need to be frozen and diff erent sections suitable for diff erent kinds of food. If the appliance contains related accessories and functions. If the appliance contains a freezer compartment.

  • Page 18: Part 6: Procedure For Switching The Door Opening Direction

    PART 6: PROCEDURE FOR SWITCHING THE DOOR OPENING DIRECTION The side in which the door opens can be changed from the right side (as supplied) to the left side, if the installation site allows for it. Tools you will need: 8mm socket driver Cross- sharped screwdriver Putty knife or thin-blade screwdriver...
  • Page 19 Lift the door and place it on a padded surface to prevent scratching. Remove both adjustable feet and remove the bottom hinge bracket by unscrewing the bolts. Then transfer them to another side. NOTE: Before turning, the hinge rod must be moved from hole 1 to hole 2. hinge axis Set the door into its new place making sure the pin enters the bushing at the lower frame section.

  • Page 20: Part 7: Installing The Door Handle

    PART 7: INSTALLING THE DOOR HANDLE If there is door handle separately provided in a plastic bag with your appliance, you can install it as follows. Remove the screw on the door. Keep or install the screw covers on the side which have hinge. Match the handle hole to the door, then fi x the screw which you removed from the door to make the handle fi xed fi rmly on the door.

  • Page 21: Part 8: Helpful Hints And Tips

    PART 8: HELPFUL HINTS AND TIPS Noises during operation Clicks - Whenever the compressor switches on of off , a click can be heard. Humming - As soon as the compressor is in operation, you can hear it humming. Bubbling - When refrigerant fl ows into thin tubes, you can hear bubbling or splashing noises. Splashing - Even after the compressor has been switched off , this noise can be heard for a short time.

  • Page 22: Part 9: Cleaning And Care

    PART 9: CLEANING AND CARE For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly. The appliance should be cleaned and maintained at least every two months. WARNING! Danger of electrical shock! • The appliance should not be connected to the main power supply during cleaning. Before cleaning, switch the appliance off and remove the plug from the main power supply, switch off , or shut off the circuit breaker of fuse.
  • Page 23 NOTICE! • Accumulation of dust at the condenser increases energy consumption; clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.(Only for the outside-condenser product) • Check the water drain hole on the rear wall of the refrigerator compartment.

  • Page 24: Part 10: What To Do If

    PART 10: WHAT TO DO IF... WARNING! Before troubleshooting, disconnect the power supply. Only a qualifi ed electrician or other personnel must carry out the troubleshooting that is not in the manual. IMPORTANT! Repairs to the appliance may only be performed by competent service engineers. Improper repairs can give rise to signifi cant hazards for the user.
  • Page 25 Problem Possible cause Solution The compressor dose not This is normal, no error has occurred. The compressor starts after a period start immediately after of time. changing the temperature setting. Water on the fl oor or storage Water drain hole is blocked. Refer the “Cleaning and Care”...

  • Page 26: Part 11: Information Sheet

    PART 11: INFORMATION SHEET INFORMATION SHEET: Philco Philco brand: Brand Philco Model identifi cation PTL 1343 Type of appliance 3) Energy effi ciency class A+++ (A... low electricity consumption to G high electricity consumption) Electricity consumption per 365 days 1) kWh...
  • Page 27 EN - 25 Copyright © 2018, Fast ČR, a. s. 04/2018...
  • Page 28 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 29 Manufacturer/Importer: Fast ČR, a.s. Praha 10, Černokostelecká 2111 CZ-10000; CZECH REPUBLIC is a registered trademark used under license from Electrolux Home Products., Inc.
