Alice

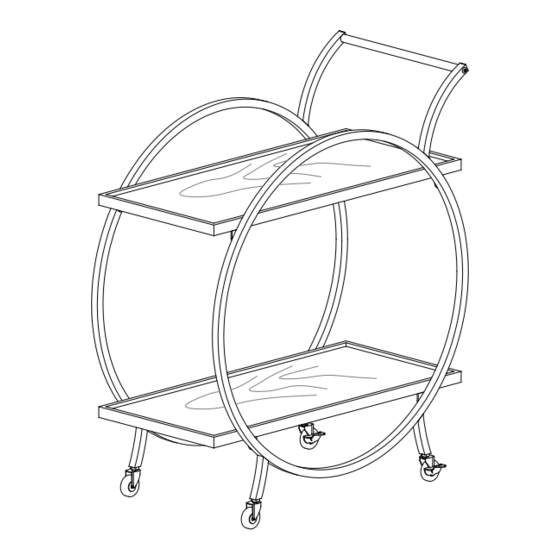

Bar Cart - Black
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
2x
8x
bolt
bolt
E
1x
wrench
allen key

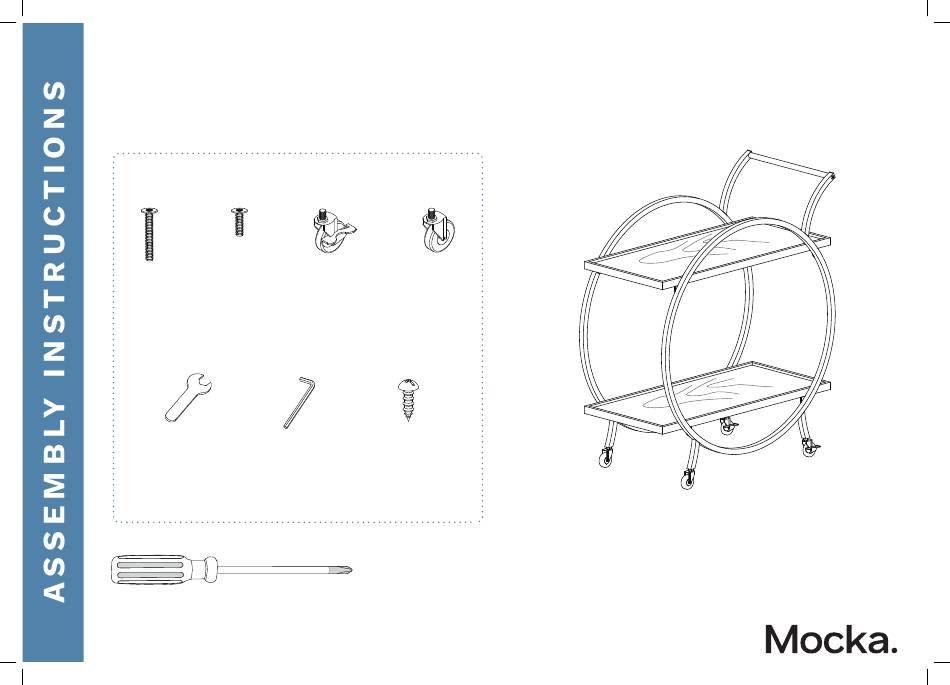

HARDWARE SUPPLIED
Pillips screwdiver required
mocka.co.nz I mocka.com.au
D
C
2x
2x
brake wheel
wheel
F
G
1x
12x
wood screw
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Alice Bar Cart
Summary of Contents for Mocka Alice Bar Cart
- Page 1 Alice Bar Cart - Black Thank you for your purchase. Please follow the instructions below for correct assembly. bolt bolt brake wheel wheel wrench allen key wood screw HARDWARE SUPPLIED Pillips screwdiver required mocka.co.nz I mocka.com.au...
- Page 2 Attach 1x panel [6] to panel [4] and attach 1x panel [6] to Attach the brake wheel (C) and wheel (D) to panel [1] & [2] panel [5] with 12x wood screws (G). use wrench (E). Use a Phillips screwdriver. mocka.co.nz I mocka.com.au...
- Page 3 Attach panel [3] to panel [1] with 1x bolt (A). Screw bolts Attach panel [4] & panel [5] to panel [1] with 4x bolts (B). with allen key (F). Do not fully tighten the bolts until Tighten all bolts with allen key (F). the product is assembled. mocka.co.nz I mocka.com.au...
- Page 4 Bar Cart - Black Attach panel [2] to panel [3] & panel [4] & panel [5] Turn the product over. with 1x bolt (A) and 4x bolts (B). You’re done, enjoy! Tighten all bolts with allen key (F). mocka.co.nz I mocka.com.au...
