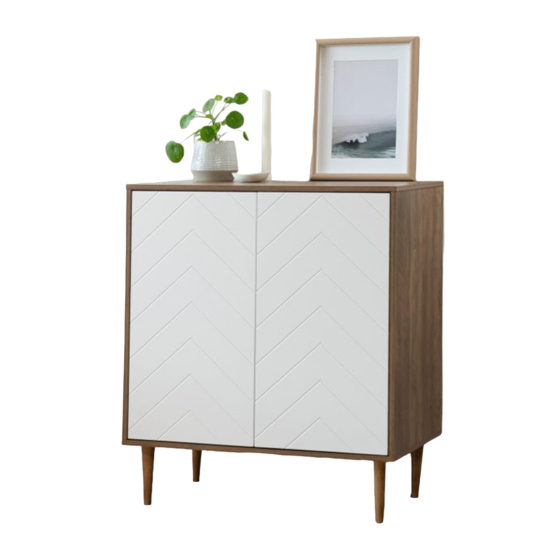

Alps Cabinet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
screw
bolt
locking
x24
x10
x14
nut x14
K
L
M
felt pad
screw
hinge
x8
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
G
screw
screw
bracket
x6
x4
x 16
N
O
P
screw
screw
bracket
x4
x24
x2

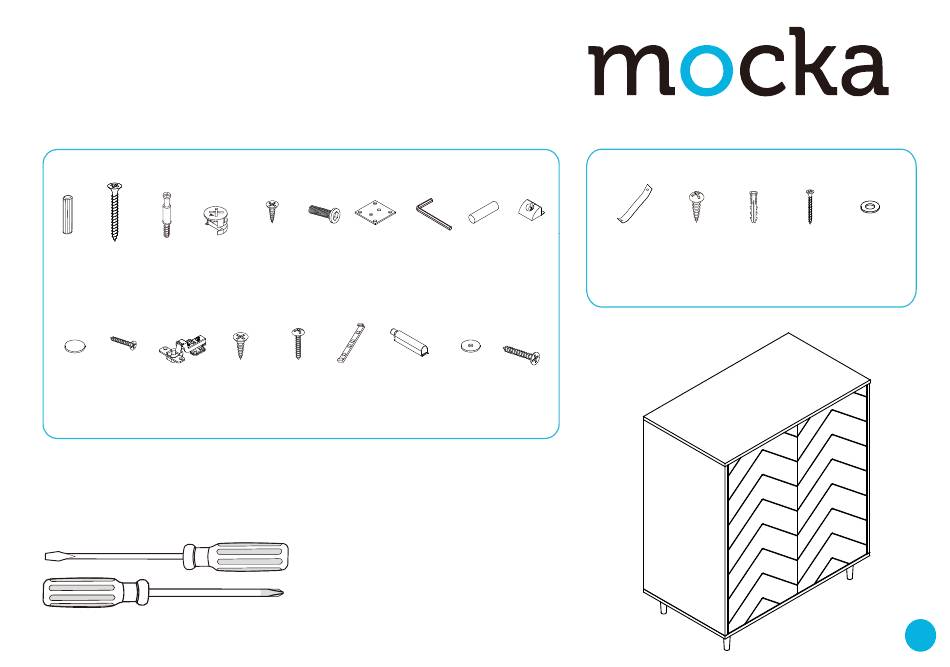

Hardware Supplied
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
J
allen key
shelf
wedge
x1
plug
x8
x4
S
Q
R
cover
seal
screw
x2
x2
x8
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Related Manuals for Mocka Alps Cabinet
Summary of Contents for Mocka Alps Cabinet
- Page 1 Phillips & Flathead screwdrivers required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. a screwdriver. Attach 2x bracket (P) to panel [1] and secure with 4x screws (E). Place 2x cover (Q) over the bracket (P) as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Alps Cabinet Assembly Instructions Insert 2x bolts (C) into panels [3]. Tighten with a screwdriver. Insert 2x bolts (C) into panels [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [3] and [4] to panel [1] with 4x dowels (A) and secure with 4x locking nuts (D). Tighten with a screwdriver. with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [2] to panel [1] with 2x dowels (A) and secure Slide panels [7] down along the grooves between the panels [2], [3] and [4] with 2x locking nuts (D). Tighten with a screwdriver. as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach each leg [9] to panel [8] using 16x screws (F) with 6x screws (B). Tighten with a screwdriver. as shown. Tighten with an allen key (H). Attach 4x felt pads (K) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [12] to panel [10] with 4x locking nuts (D).Tighten with a screwdriver Attach panels [11] to panel [10] with 4x dowels (A) and secure with 4x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach 4x hinges (M) to panels [13] and [14] using 8x screws (N), Insert panel [10] to panels [3] and [4]. and attach 2x seals (R) to panels [13] and [14] and secure with 2x screw (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 [5] onto them. Ensure the shelves are balanced If the cover (Q) is not catching on the seal (R), adjust the magnetic and stable. end by twisting it outwards. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 1x washer (Z) and 1x screw (Y). Ensure unit is balanced and steady before use. 1x screw (W). Tighten with a screwdriver. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
