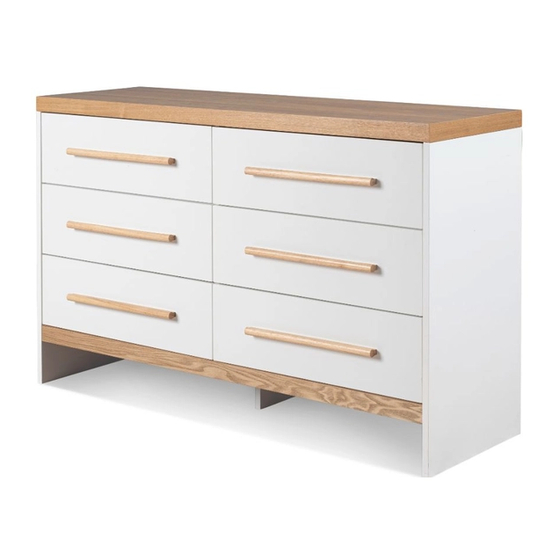

Alta Six Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
dowel
screw
bolt
x8
x34
x55
H
I
O
handle
wedge
screw
x6
x8
x8

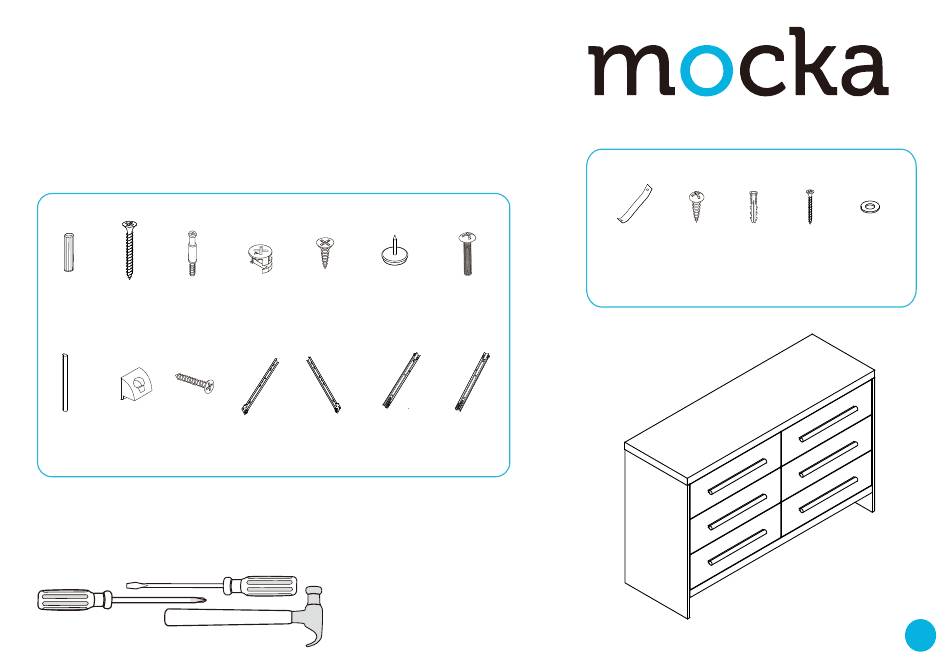

Hardware Supplied
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
locking
screw
plastic
nut x55
x60
glide x5
K
J
L
slide
slide
slide
rail x6
rail x6
rail x6
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
safety
strap x2
handle
screw x12
M
slide
rail x6
V
W
X
Y
screw
wall
wall
x2
anchor
screw
x2
x2
Wall Strap
Z
washer
x4
1
Advertisement
Related Manuals for Mocka Alta Six
Summary of Contents for Mocka Alta Six
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
-
Page 2: Panel Layout
Alta Six Drawer Assembly Instructions Panel layout Insert 6x bolts (C) into panel [1]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558... - Page 3 18x screws (E). Insert 4x bolts (C) into panels [6].Tighten with a screwdriver. 3x slide rails (K) to panel [4] and secure with 9x screws (E). Insert 7x bolts (C) into panels [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panels [2] to panel [6] secure with 4x locking nuts (D). Tighten with panel [6] to panel [7] secure with 1x locking nuts (D). Tighten with a a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panel [4] to panels [2], [7], [8] and [9] with 1x dowel (A) and secure with Attach panels [8] and [9] to panel [6] secure with 4x screws (B) .Tighten 7x locking nuts (D). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [3] to panels [2], [7], [8] and [9] with 1x dowel (A) and secure with [9] as shown. 7x locking nuts (D). Tighten with a screwdriver.Attach 5x plastic glides (F) to the panels [3], [4] and [6] using a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panel [5] down along the grooves between the panels [3] and [4] Attach panel [1] to panels [3], [4] and [6] with 6x dowels (A) and secure as shown. with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Drawer x6 Insert 5x bolts (C) into panels [35]/[36]. Tighten with a screwdriver. Attach panels [30], [31] and [32] to panel [34] secure with 5x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Slide panel [33] down along the grooves between the panels [30] Attach panels [35]/ [36] to panels [30], [31] and [34] secure with 5x locking and [31] as shown. nuts (D).Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach 1x handle (O) to panel [35]/ [36] secure with 2x handle screws (G). as shown. Secure with 4x screws (E) and tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 8x screws (I). Tighten with a screwdriver. Attach 2x safety strap (V) to the top of the back side of the unit as shown using 2x washer (Z) and 2x screw (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 (V). Fasten to the wall using 2x washer (Z) , 2x wall anchor (X) and 2x wall screw (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
