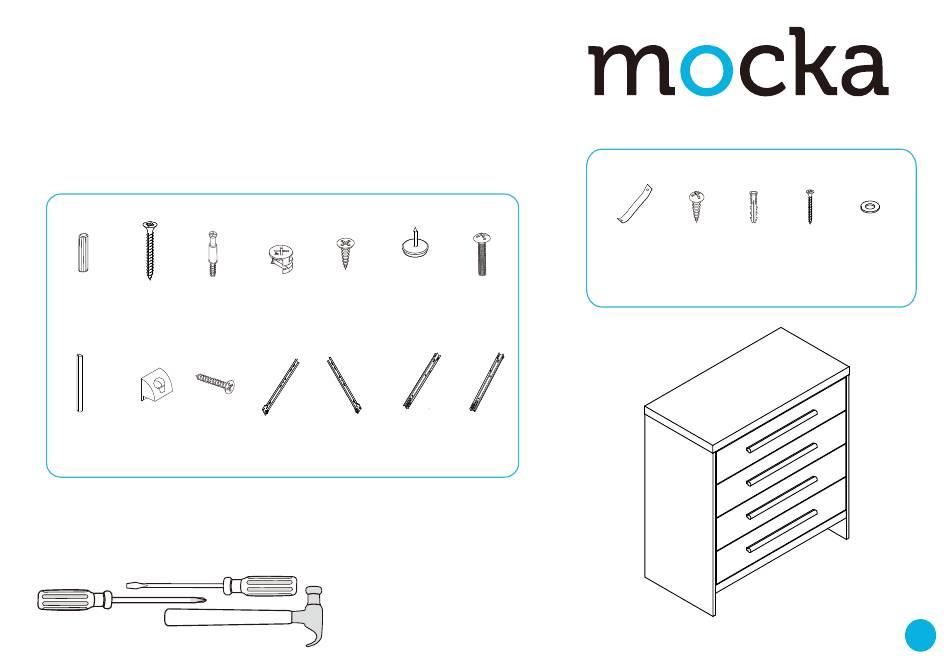

Alta Four Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
C
A
B
dowel
screw
bolt
x6
x20
x44
O
H
I
handle
wedge
screw
x4
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
locking
screw
plastic
x40
nut x44
glide x4
J
K
slide
slide
rail x4
rail x4
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
G
handle
screw x8
L
M
slide
slide
rail x4
rail x4
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Alta
Summary of Contents for Mocka Alta
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
-
Page 2: Panel Layout
Alta Four Drawer Assembly Instructions Panel layout Insert 4x bolts (C) into panel [1]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558... - Page 3 [7] secure with 2x locking nuts (D). Tighten with a screwdriver. 4x slide rails (K) to panel [4] and secure with 12x screws (E). Insert 9x bolts (C) into panels [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Slide panels [5] down along the grooves between the panels [8] and [9] Attach panel [2], [6], [7], [8] and [9] to panels [3] with 1x dowels (A) as shown. and secure with 9x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Slide panel [5] down along the grooves between the panels [3] and [4] secure with 9x locking nuts (D). Tighten with a screwdriver. Attach 4x as shown. plastic glides (F) to the panels [3] and [4] using a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Attach panel [1] to panels [3] and [4] with 4x dowels (A) and secure with Insert 5x bolts (C) into panels [35]. Tighten with a screwdriver. 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panels [30], [31] and [32] to panel [34] secure with 5x screws (B). Slide panel [33] down along the grooves between the panels [30] Tighten with a screwdriver. and [31] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach slide rails (L) and slide rails (M) to the underside of the side panels nuts (D). Tighten with a screwdriver. as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach 1x handle (O) to panel [35] secure with 2x handle screws (G). Insert the assembled drawers into the corresponding compartments Tighten with a screwdriver. as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and using 1x washer (Z) and 1x screw (W). Tighten with a screwdriver. 1x wall screw (Y). Ensure unit is balanced and steady before use.You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
