COM Express™

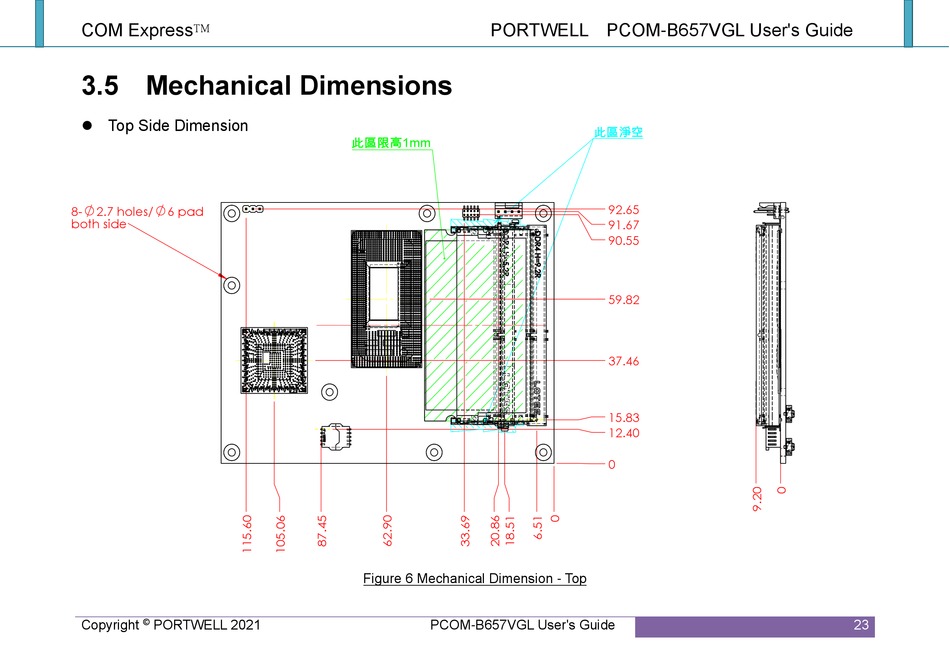

3.5 Mechanical Dimensions

⚫ Top Side Dimension
8- 2.7 holes/ 6 pad
both side
©
Copyright PORTWELL 2021
PORTWELL PCOM-B657VGL User's Guide
此區限高1mm

Figure 6 Mechanical Dimension - Top

PCOM-B657VGL User's Guide
此區淨空
92.65
91.67
90.55
59.82
37.46
15.83
12.40
0
23
