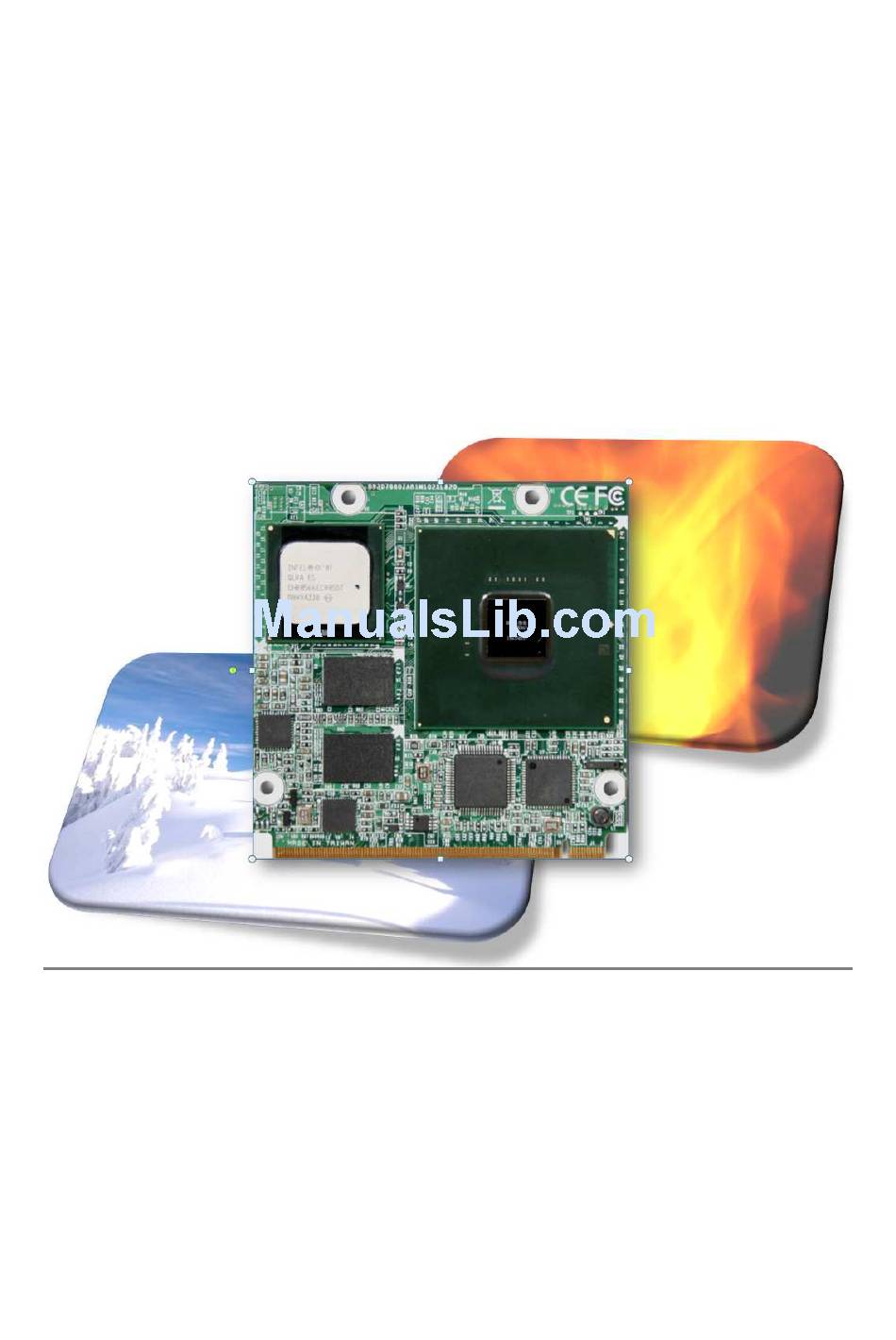

- Page 1 PQ7-M102XL Series User's Manual Version 1.2 Copyright © Portwell, Inc., 2010. All rights reserved. All other brand names are registered trademarks of their respective owners.
-
Page 2: Table Of Contents
Preface Table of Contents How to Use This Manual Chapter 1 System Overview ....................... 1-1 1.1 Introduction ..........................1-1 1.2 Check List ............................. 1-1 1.3 Product Specification ........................1-2 1.4 Mechanical Drawing ........................1-3 1.5 System Architecture ........................1-4 Chapter 2 Hardware Configuration .................... 2-1 2.1 Jumper Setting .......................... -
Page 3: How To Use This Manual
Preface How to Use This Manual The manual describes how to configure your PQ7-M102XL series to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of this Q Module. SEVEN Chapter 1 : System Overview. -
Page 4: Chapter 1 System Overview
512 MB DDR2 memories (up to 1GB) on-board, one Gigabit Ethernet controller on it to provide expansion interfaces – PCI Express x1. Check List The PQ7-M102XL series package should cover the following basic items One PQ7-M102XL series module board One Installation Resources CD (Driver and Manual) If any of these items is damaged or missing, please contact your vendor and keep all packing materials for future replacement and maintenance. -
Page 5: Product Specification
Intel WG82574IT Gigabit Ethernet controller is equipped - USB Interface Support eight USB 2.0 ports Outline Dimension (L X W): 70mm x 70mm Operating Temperature: -40°C ~ 85°C Storage Temperature: -40°C ~ 85°C Relative Humidity: 5% ~ 90%, non-condensing PQ7-M102XL Series User Manual... -
Page 6: Mechanical Drawing
System Overview Mechanical Drawing PQ7-M102XL Series User Manual... -
Page 7: System Architecture
(Port 1) Poulsbo XL FWH/LPC (U15WPT) 18/24bit LVDS BIOS WG82574IT SDVO SATA Port 0 JMB330 PCI-Ex1 SATA Port 1 JMB330 USB x8 SDIO Golden Finger SEVEN VCC5 Golden SEVEN 5V_SB Finger BATT PQ7-M102XL Series System Block Diagram PQ7-M102XL Series User Manual... -
Page 8: Chapter 2 Hardware Configuration
Hardware Configuration This chapter gives the definitions and shows the positions of jumpers, headers and connector. All of the configuration jumpers on Portwell EVB Carrier PQ7-C100XL are in the proper position. The default settings shipped from factory are marked ( ). - Page 9 RS422 3-4,7-9,8-10,13-15,14-16,21-22 JP7 : LVDS Back-light Power Level Process Selection 1-3,2-4 5V, Active High 1-3,4-6 12V, Active High 3-5,2-4 5V, Active Low 3-5,4-6 12V, Active Low JP8 : CMOS Reset Function Normal Operation Clear CMOS Contents PQ7-M102XL Series User Manual...
-
Page 10: Connector Allocation
DC Jack 12V Reserve Header Pin Assignments of Connectors J1 : LVDS Panel Back-light Power Connector PIN No. Signal Description Backlight Power Ground +12V L_BKLTCTL J2 : RTC Battery Connector PIN No. Signal Description Positive Negative PQ7-M102XL Series User Manual... - Page 11 J5 : LVDS Panel Connector PIN No. Signal Description PIN No. Signal Description VDD_LVDS VDD_LVDS DF_LA_DATA+0 DF_LA_DATA-0 DF_LA_DATA+1 DF_LA_DATA-1 DF_LA_DATA+2 DF_LA_DATA-2 DF_LA_DATA+3 DF_LA_DATA-3 DF_LA_CLK+ DF_LA_CLK- L_CTLA_CLK L_CTLB_DATA DF_LB_DATA+0 DF_LB_DATA-0 DF_LB_DATA+1 DF_LB_DATA-1 DF_LB_DATA+2 DF_LB_DATA-2 DF_LB_DATA+3 DF_LB_DATA-3 DF_LB_CLK+ DF_LB_CLK- PQ7-M102XL Series User Manual...
- Page 12 J8 : Audio Header PIN No. Signal Description CN_MIC-R AGND CN_MIC-L AGND CN_LINOUT-R CN_LINOUT-L J11 : 8-Bit GPIO Header PIN No. Signal Description PIN No. Signal Description SIO_GPIO0 SIO_GPIO4 SIO_GPIO1 SIO_GPIO5 SIO_GPIO2 SIO_GPIO6 SIO_GPIO3 SIO_GPIO7 Ground PQ7-M102XL Series User Manual...
- Page 13 J13 : LPC Debug Port PIN No. Signal Description PIN No. Signal Description LPC_AD0 VCC3 LPC_AD1 RST# LPC_AD2 LPC_FRAME# LPC_AD3 CLK_LPC_FWH J14 : MXM Connector PIN No. Signal Description PIN No. Signal Description DF_LAN1_MDIN3 DF_LAN1_MDIN2 DF_LAN1_MDIP3 DF_LAN1_MDIP2 LAN1_LINK100- LAN1_LINK1000- PQ7-M102XL Series User Manual...
- Page 14 HAD_RST# SMB_DATA HAD_BITCLK SMB_ALERT# HAD_SDATAIN0 I2C_CLK HAD_SDATAOUT I2C_DAT PM_THRM# WDTRIG# THERMTRIP# WDOUT (not implement) DF_USB_PN7 DF_USB_PN6 DF_USB_PP7 DF_USB_PP6 USB_6_7_OC# USB_4_5_OC# DF_USB_PN5 DF_USB_PN4 DF_USB_PP5 DF_USB_PP4 USB_2_3_OC USB_0_1_OC# DF_USB_PN3 DF_USB_PN2 DF_USB_PP3 DF_USB_PP2 USB_HOST_PRES# USB_HC_SEL DF_USB_PN1 DF_USB_PN0 DF_USB_PP1 DF_USB_PP0 PQ7-M102XL Series User Manual...
- Page 15 PCIE_TX3- (not implement) PCIE_RX3- (not implement) PCIE_TX2+ (not implement) PCIE_RX2+(not implement) PCIE_TX2- (not implement) PCIE_RX2- (not implement) EXCD0_PERST# EXCD1_PERST# PCIE_TX1+ PCIE_RX1+ PCIE_TX1- PCIE_RX1- EXCD0_CPPE# EXCD1_CPPE# (not implement) (not implement) PCIE_TX0+ PCIE_RX0+ PCIE_TX0- PCIE_RX0- LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 PQ7-M102XL Series User Manual...
- Page 16 MFG_N/C J15 : SD Card Slo PIN No. Signal Description DAT3 CMD_RSP DAT0 DAT1 DAT2 CD#_COM J16 : Dual Port USB Header(Only USB2.0 Device) PIN No. Signal Description PIN No. Signal Description USBD6N USBD7N USBD6P USBD7P PQ7-M102XL Series User Manual...
- Page 17 FP PWR/SL_N RST_SW_N PWR_SW_P RST_SW_P PWR_SW_N RSVD_DNU J20 : IrDA Connector PIN No. Signal Description IRRX Ground Ground IRTX J21 : RJ45 LAN Port PIN No. Signal Description L1_MDIP0 L1_MDIN0 L1_MDIP1 L1_MDIN1 VCTREF_GBE0_CT L1_MDIP2 L1_MDIN2 L1_MDIP3 PQ7-M102XL Series User Manual 2-10...
- Page 18 J23 : Dual Port USB PIN No. Signal Description PIN No. Signal Description USBD3N USBD2N USBD3P USBD2P Ground Ground J24 : Dual Port USB PIN No. Signal Description PIN No. Signal Description USBD5N USBD4N USBD5P USBD4P Ground Ground PQ7-M102XL Series User Manual 2-11...
- Page 19 RI/5V/12V J26 : D-SUB15 VGA Connector PIN No. Signal Description PIN No. Signal Description GREEN BLUE Ground Ground Ground Ground Ground DDCDATA HSYNC VSYNC DDCCLK J27 : DC Jack 12V PIN No. Signal Description V12CON_IN PQ7-M102XL Series User Manual 2-12...
-
Page 20: Chapter 3 System Installation
500,memorycontroller, and I/O controller in a single-chip solution while featuring advanced 3D graphics and extensive I/O capabilities such as USB2.0,SDIO and PCI Express. It supports Intel® High Definition Audio and hardware video decode acceleration, a 400/533 MHz CMOS front-side bus, dual independent display. PQ7-M102XL Series User Manual... -
Page 21: Main Memory
To overcome this compatibility issue, for Windows Operating Systems such as Windows XP/VISTA, please install its INF before any of other Drivers are installed. You can find very easily this chipset component driver in PQ7-M102XL CD-title. PQ7-M102XL Series User Manual... -
Page 22: Intel Integrated Graphics Gmch Chip
Green Linked & Active LED Blinking Giga Orange Speed Mbps Mbps Mbps Speed LED Green Orange Green 3.4.4 Audio Controller Please find Realtek ALC262 Audio driver form PQ7-M102XL CD-title. The drivers support Windows XP / VISTA. PQ7-M102XL Series User Manual... -
Page 23: Clear Cmos Operation
2 seconds” is the recommendation due to the limitation of Winbond W83627DHG WDT. You can call Portwell support center for reference. The value read back from CR_T indicates the counting down value instead of the original T . - Page 24 Read Configuration Register CR_rx, and keep this byte to unsigned char al_char outportb(EFIR, CR_rx ) ; al_char = inportb(EFDR) ; Write Configuration Register CR_wx with byte al_char1 ; outportb (EFIR, CR_wx ) ; outportb (EFDR, al_char1); Exit extended mode after completion of configuration register access. outportb(EFIR, 0xaa); PQ7-M102XL Series User Manual...
- Page 25 LD8_CRF5_bit3 : 0 : Second Mode 1 : Minute Mode LD8_CRF6: T , “Writing 00” means “disable WDT” 1~255 time unit (time unit: second, minute) Notes: “CR2D_bit0P0“means ” Write 0 to bit0 of Configuration Register 0x2D”. PQ7-M102XL Series User Manual...
-
Page 26: Gpio
( EFIR , 0x2C ) ; // al_char1 : unsigned char al_char1 = inportb ( EFDR ) | 0x02 ; // CR2C_bit[7:5]P[0,0,0] outportb ( EFIR , 0x2C ) ; // init GP30~37 function outportb ( EFDR , al_char1 ) ; PQ7-M102XL Series User Manual... - Page 27 ; E.g. if put four jumper caps on J12 pin1-2,3-4,5-6,and 7-8 ; ( Warning : J22 pin9-10 is not allowed to be short circuit. ) ; and then Write [1,0,1,0] to bit[3:0] , you can get [1,0,1,0] from ; bit[7:4]. PQ7-M102XL Series User Manual...
-
Page 28: Chapter 4 Bios Setup Information
The BIOS setup program provides a General Help screen. You can call up this screen from any menu by simply pressing <F1>. The Help screen lists the appropriate keys to use and the possible selections for the highlighted item. Press <Esc> to exit the Help screen. PQ7-M102XL Series User Manual... -
Page 29: Main Menu
System Time The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. PQ7-M102XL Series User Manual... -
Page 30: Advanced
BIOS Setup Information Advanced Use this menu to set up the items of special enhanced features. PQ7-M102XL Series User Manual... - Page 31 When disable, force the XD feature flag to always return 0. Hyper Threading Technology Enable for Windows XP and Linux4 (OS optimized for Hyper Threading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology) Intel(R) SpeedSetup(™) tech Disable: Disable GV3 Enable: Enable GV3 PQ7-M102XL Series User Manual...
- Page 32 IDE Configuration The IDE Configuration the IDE devices, such as hard disk drive or CD-ROM drive. It uses a separate sub menu to configure each hard disk drive (Master and Slave). ATA/IDE Configuration The choice: Disabled, Compatible. PQ7-M102XL Series User Manual...
- Page 33 Cylinders, Heads and Sectors. [Block (Multi-Sector Transfer)] Any selection except Disabled determines the number of sectors transferred per block. [PIO Mode] Indicates the type of PIO (Programmed Input/Output). [DMA Mode] Indicates the type of Ultra DMA. PQ7-M102XL Series User Manual...
- Page 34 ATA (PI) 80Pin Cable Detection Select the mechanism for detecting 80Pin ATA (PI) cable. The choice: Host & Device, Host, Device. Super IO Configuration Serial Port 1 Address Allows BIOS Select Serial Port1 Base Addresses. The choice: Disabled, 3F8/IRQ4. PQ7-M102XL Series User Manual...
- Page 35 BIOS Setup Information Hardware Health Configuration Configuration / monitor the Hardware Health. PQ7-M102XL Series User Manual...
- Page 36 BIOS Setup Information ACPI Configuration Select for Advanced ACPI Configuration. PQ7-M102XL Series User Manual...
- Page 37 The information stored in memory will be used to restore the system when a “wake up” event occurs. Repost Video on S3 Resume Determines whether to invoke VGA BIOS post on S3/STR resume. The choice: No, Yes PQ7-M102XL Series User Manual 4-10...
- Page 38 The choice: ACPI v1.0 / ACPI v2.0 / ACPI v3.0. ACPI APIC support Include ACPI APIC table pointer to RSDT pointer list. The choice: Disabled, Enabled. AMI OEMB table Include OEMB table pointer to R(X) SDT pointer list. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-11...
- Page 39 ACPI options. APIC ACPI SCI IRQ Enable / Disable APIC ACPI SCI IRQ. The choice: Disabled, Enabled. USB Device Wakeup From S3/S4 Enable / Disable USB device Wake from S3/S4 mode. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-12...
- Page 40 You need to select the MPS version supported by your operating system. To find out which version to use, consult the vendor of your operating system. The choice: 1.1, 1.4. PQ7-M102XL Series User Manual 4-13...
- Page 41 BIOS Setup Information PCI Express Configuration Configure PCI Express Support. Active State Power-Management PCI Express L0s and L1 link power states. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-14...
- Page 42 BIOS Setup Information Smbios Configuration SMBIOS Configuration Menu. Smbios Smi Support SMBIOS SMI Wrapper supports for PnP Func 50h-54h. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-15...
- Page 43 This setting specifies the operation mode of the onboard USB 2.0 controller. The choice: FullSpeed, HiSpeed. BIOS EHCI Hand-Off This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should claim by EHCI driver. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-16...
-
Page 44: Pcipnp
Plug and Play operating system. The choice: No, Yes. PCI Latency Timer Select value in units of PCI clocks for PCI device latency timer register. The choice: 32, 64, 96, 128, 160, 192, 224, 248. PQ7-M102XL Series User Manual 4-17... - Page 45 Available: Specified IRQ is available to be used by PCI/PnP devices. Reserved: Specified IRQ is reserved for used by Legacy ISA devices. The choice: Available, Reserved. Reserved Memory Size Select Size of memory block to reserve for legacy ISA devices. The choice: Disabled, 16K, 32K, 64K. PQ7-M102XL Series User Manual 4-18...
-
Page 46: Boot
BIOS Setup Information Boot Use this menu to specify the priority of boot devices. PQ7-M102XL Series User Manual 4-19... - Page 47 This delay ensures that the logo is displayed for a sufficient amount of time. Therefore, it is recommended that you disable this BIOS feature for a faster boot-up time. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-20...
- Page 48 Interrupt 19 during the boot process so that drives attached to these adaptors can function as bootable disks. In addition, it allows you to gain access to the host adaptor's ROM setup utility, if one is available. PQ7-M102XL Series User Manual 4-21...
- Page 49 First press <Enter> to enter the sub-menu. Then you may use the arrow keys (↑↓) to select the desired device, then press <＋>, <－> or <PageUp>, <PageDown> key to move it up/down in the priority list. The choice: (Network:IBA GE Slot 0200 v1324), Disabled. PQ7-M102XL Series User Manual 4-22...
-
Page 50: Security
User Password / Change User Password User Password controls access to the system at boot. These settings allow you to set or change the user password. Boot Sector Virus Protection Boot Sector Virus Protection. The choice: Disabled, Enabled. PQ7-M102XL Series User Manual 4-23... -
Page 51: Chipset
BIOS Setup Information Chipset This menu controls the advanced features of the onboard Northbridge and Southbridge. PQ7-M102XL Series User Manual 4-24... - Page 52 Select which graphics controller to use as the primary boot device. The choice: IGD, PCIe/IGD. Integrated Graphics Mode Selec Select the amount of system memory used by the internal graphics device. The choice: Disabled, Enabled, 1MB, Enabled, 4MB, Enabled, 8MB. PQ7-M102XL Series User Manual 4-25...
- Page 53 4.8”), 1024x768 (Samsung 15”), 1280x768 (Sharp 7.2”), 1280x800 (Samsung 15.4”), DPST Control The choice: VBIOS-Default, DPST Disabled, DPST Enabled at Level 1~Level 5. TV Standard The choice: VBIOS-Default, NTSC, PAL, SECAM, SMPTE240M, ITU-R television, SMPTE295M, SMPTE296M, CEA 7702, CEA 7703. PQ7-M102XL Series User Manual 4-26...
- Page 54 USB 2.0 driver installed, such as DOS. The choice: Enabled, Disabled. USB Client Controller The choice: Enabled, Disabled. SDIO controller The choice: Enabled, Disabled. Audio Controller Codec The choice: Auto, Azalia, Disabled. PQ7-M102XL Series User Manual 4-27...
- Page 55 The choice: Power Off, Power On, Last State. Serial IRQ Mode The choice: Continuous, Quiet. PCIE Port 0 The choice: Auto, Enabled, Disabled. PCIE Port 1 The choice: Auto, Enabled, Disabled. PQ7-M102XL Series User Manual 4-28...
-
Page 56: Exit
Use this menu to load the default values set by the SBC manufacturer specifically for optimal performance of the SBC. Load Failsafe Defaults Use this menu to load the default values set by the BIOS vendor for stable system performance. PQ7-M102XL Series User Manual 4-29... -
Page 57: Chapter 5 Troubleshooting
This chapter provides a few useful tips to quickly get PQ7-M102XL running with success. As basic hardware installation has been addressed in Chapter 2, this chapter will primarily focus on system integration issues, in terms of BIOS setting, and OS diagnostics. Hardware Quick Installation DC 12V Power Input PQ7-M102XL Series User Manual... -
Page 58: Bios Setting
BIOS setting back to the initial factory configuration. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting any time when system appears to be unstable in boot up sequence. - Page 59 IRQ #10 Network Controller, USB 1.0/1.1 UHCI Controller, BASE SYS PERIPHERALS IRQ #11 RAID Controller, USB 1.0/1.1 UHCI Controller, BASE SYS PERIPHERALS IRQ #12 PS/2 mouse IRQ #13 Data Processor IRQ #14 IDE Controller IRQ #15 PQ7-M102XL Series User Manual...
-
Page 60: Faq
For additional technical information, which is not covered in this manual, you can mail to tsd@mail.portwell.com.tw or you can also send mail to our sales, they will be very delighted to forward them to us. PQ7-M102XL Series User Manual... - Page 61 Program Area 0F6C-9EFF 574K [Available] = Conventional memory ends at 639K = 9F00-9F7F Unused 9F80-9FFF Extended Bios Area A000-AFFF VGA Graphics B000-B7FF Unused B800-BFFF VGA Text C000-CE5F Video ROM CE60-EFFF 134K Unused F000-FFFF System ROM First 64k PQ7-M102XL Series User’s Manual...
- Page 62 Usable IRQ IRQ 10 [Unassigned] Usable IRQ IRQ 11 [Unassigned] Usable IRQ IRQ 12 System ROM IBM Mouse Event IRQ 13 System ROM Coprocessor Error IRQ 14 System ROM Hard Disk Event IRQ 15 [Unassigned] Usable IRQ PQ7-M102XL Series User’s Manual...
