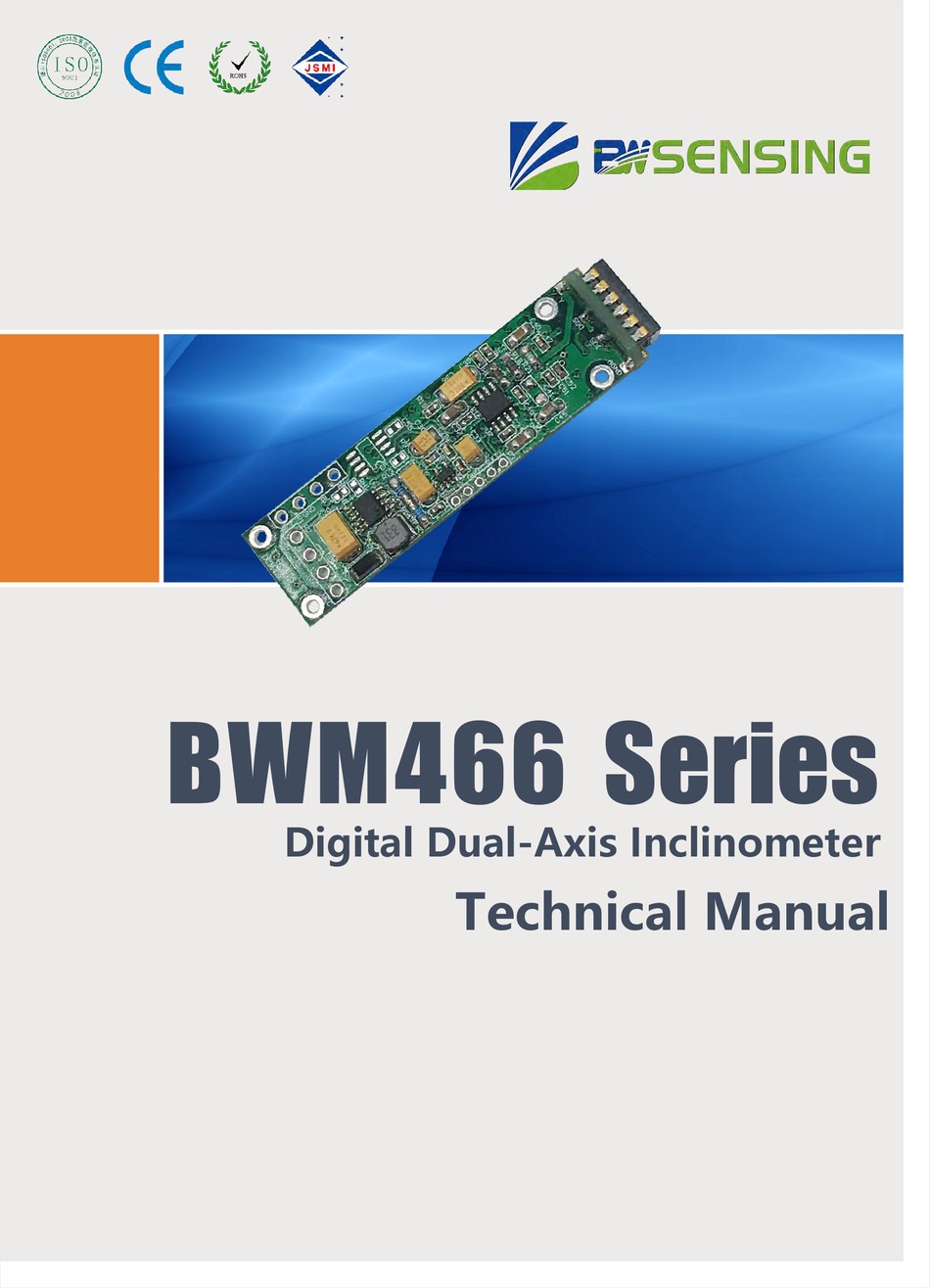

- Page 1 BWM466 Series Digital Dual-Axis Inclinometer Technical Manual...

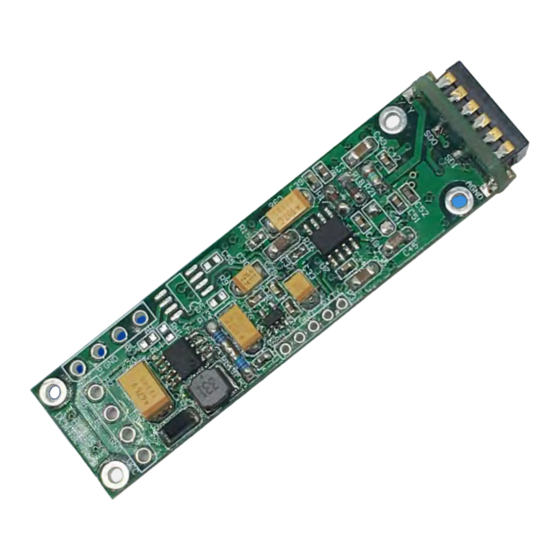

- Page 2 BWM 466 Digital Dual-Axis Inclinometer Introduction Designed by Bewis Sensing Technology LLC, BWM466 is a cost-effective digital dual-axis inclinometer which output mode is RS485 and TTL optional. It adopts the latest technology MEMS manufacturing process tilting unit, with small size, low power consumption, high consistency and stability.
-
Page 3: Specifications
BWM 466 Digital Dual-Axis Inclinometer Specifications Electrical Specifications Conditions Typical Units Parameters Power supply Operating current Non-loaded Operating ℃ temperature +100 ℃ Store temperature Performance Specifications BWM466-5 BWM466-30 BWM466-60 Parameters Units Conditions ±30 ±60 ° Measuring range ±5 Measuring axis Indoor 0.01 0.05... - Page 4 BWM 466 Digital Dual-Axis Inclinometer Mechanical Characteristic Cable hole Connector Bare board Protection level Bare board Shell material Four M2 screws Installation Package size Product size: L73*W20*H8（mm） 2 通孔 Board schematic 19.9 2.65 Bewis Sensing Technology LLC www.bwsensing.com Tel: +86 510 8573 7158...
- Page 5 BWM 466 Digital Dual-Axis Inclinometer Electrical connections s Electrical interfaces BLUE BLACK GREEN YELLOW Cable color & Function 485- 485+ DC 9-35V DC 9-35V RED VCC Signal YELLOW TX acquisition Inclinometer GREEN RX BLACK GND TTL wiring diagram DC 9-35V RED VCC 485+ Signal...
- Page 6 BWM 466 Digital Dual-Axis Inclinometer Debug software Users can directly download serial assistant on official website (Supports-Download). You can also use more convenient and intuitive PC software. BWM466 supporting serial debugging software can be connected to the inclinometer on the computer for angle display.
- Page 7 BWM 466 Digital Dual-Axis Inclinometer Protocol 1Data Frame Format： （8 data bits，1 stop bit，No parity check，default baud rate 9600） Address Code Identifier Frame Length Command Checksum Data （1byte） （1byte） （1byte） （1byte） （1byte） 0x77 Data Format: Hexadecimal Identifier: Fixed to 77 Frame Length: Length from Frame Length to Checksum（included）...
- Page 8 BWM 466 Digital Dual-Axis Inclinometer 2.3 Read angle of X,Y axis Command：77 04 00 04 08 Identifier Frame Length Address Code Command Data Checksum （1byte） （1byte） （1byte） （1byte） （0byte） （1byte） 0x77 0x04 Command response： Identifier Frame Length Data Address Code Command Checksum （1byte）...
- Page 9 BWM 466 Digital Dual-Axis Inclinometer 2.6 Set baud rate Command：77 05 00 0B 03 13 Identifier Frame Length Address Code Data Checksum Command （1byte） （1byte） （1byte） （1byte） （1byte） （1byte） 0x77 0x05 0x00:2400 0x01:4800 0x02:9600 0x03:19200 0x04:115200 Command response： Frame Length Identifier Address Code Checksum...
- Page 10 BWM 466 Digital Dual-Axis Inclinometer 2.9 Set output mode Command：77 05 00 0C 00 11 Identifier Frame Length Address Code Command Data Checksum （1byte） （1byte） （1byte） （1byte） （1byte） （1byte） 0x00: question and answer Mode 0x01: 5Hz Data Rate 0x02: 10Hz Data Rate 0x0C 0x77...
-
Page 11: Ordering Information
BWM 466 Digital Dual-Axis Inclinometer Ordering Information Product number Way of communication Package condition RS485 Bare board BWM466-60-485 Bare board BWM466-60-TTL Executive standard ● Enterprise Quality System Standard: ISO9001:2008 Standard (Certificate No.:10114Q16846ROS) ● CE certification (certificate number: 3854210814) ● ROHS (certificate number: SO81426003) ●... - Page 12 Serials BWM466 Digital Dual-Axis Inclinometer Wuxi Bewis Sensing Technology LLC Address: Building 30, No. 58 Xiuxi Road, Binhu District, Wuxi City Hotline: 400-618-0510 Tel: +86 510 85737178-801 Email: sales@bwsensing.com Website: www.bwsensing.com...
