- Page 1 BWM467 Series Digital Dual Axis Inclinometer Technical Manual V3.0...
-
Page 2: Main Feature

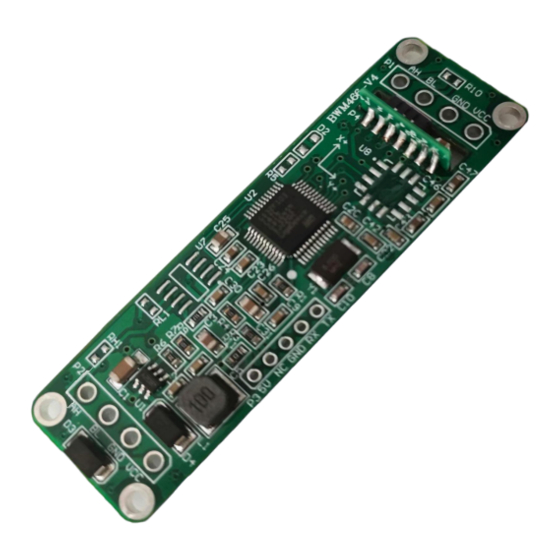

BWM467 Digital Dual Axis Inclinometer Introduction BWM467 is a cost-effective digital dual-axis inclinometer launched by Bewis Sensing Company. The output mode is RS485 and TTL optional. It can be used vertically or horizontally. The product adopts the latest technology micro-electromechanical production technology inclination unit, small size, low power consumption, high consistency and stability, because it is a digital inclinometer, the linearity is easier to be corrected. -
Page 3: Product Feature
BWM467 Digital Dual Axis Inclinometer Product Feature Electric Index Parameter Condition Minimum Typical Maximum Power voltage (V) Working current(mA) No load Operating Temperature (℃) Storage Temperature (℃) Performance Index Measurement Range (°) Condition ±90 Measurement axis Accuracy (°) Room temperature 0.01 Completely still 0.01... - Page 4 BWM467 Digital Dual Axis Inclinometer Mechanical Index Connector Metal Joint（Cable 1.5m) Protection level Bare board Shell material Bare board Installation Two M2 screws Package product size Product size：L67*W20*H8（mm） Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Electrical Interface
BWM467 Digital Dual Axis Inclinometer Electrical Interface Wiring definition BLUE BLACK GREEN YELLOW Wire color function GND ground DC 9-36V 485- 485+ D D C C 9 9 - - 3 3 5 5 V V R R E E D D V V C C C C 485+ YELLOW YELLOW D+... - Page 6 BWM467 Digital Dual Axis Inclinometer Debugging software You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software. BWM467 supporting serial port debugging software can connect the inclination sensor on the computer to display the angle.
-
Page 7: Order Information
BWM467 Digital Dual Axis Inclinometer Order information Package situation Communication mode Model BWM467-60-485 RS485 Bare board BWM467-60-TTL Bare board Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ● ROHS (certificate Number: G 190930099) ●... - Page 8 BWM467 Series Digital Dual Axis Inclinometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
