- Page 1 BW-IMU50 Series Low-cost Inertial Measurement Unit Technical Manual V3.0...

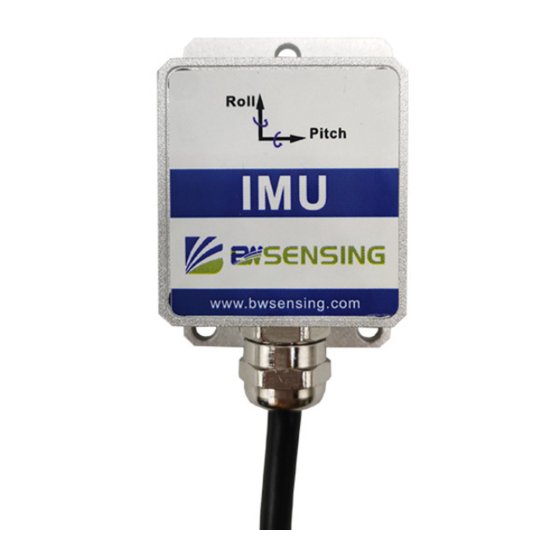

- Page 2 BW-IMU50 Low-cost Inertial Measurement Unit Introduction BW-IMU50 is a low-cost inertial measurement unit that can measure the angular velocity and acceleration of a moving carrier. The data deviation is estimated by the 6-state Kalman filter with appropriate gain, which is suitable for inertial attitude measurement in motion or vibration state.
-
Page 3: Product Feature
BW-IMU50 Low-cost Inertial Measurement Unit Product Feature Electrical index Power voltage 5V DC Working current 30mA （40mA max） Operating temperature -40~85℃ Storage temperature -55~100℃ Performance index Resolution 0.01°/sec Range ±400°/sec ＜ 2°/h（ 100s,1σ） Bias stability at room temperature ＜ 150°/h（10s,1σ） Angle random walk ＜... - Page 4 BW-IMU50 Low-cost Inertial Measurement Unit Mechanical Index Metal joint（Cable 1.5m) Connector Protection level IP67 Shell material Magnesium aluminum alloy anodizing Installation Four M4 screws Package product size Product size：L55*W37*H24（mm） PCB size Product size：L33*W27*H6（mm） The length and width may have an error of ±1mm, please refer to the actual product Bewis Sensing Technology LLC www.bwsensing.com Tel: +89 18921292620...
-
Page 5: Installation
BW-IMU50 Low-cost Inertial Measurement Unit Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible, and there should be no included angles as shown in Figure A and Figure C. -
Page 6: Electrical Connection
BW-IMU50 Low-cost Inertial Measurement Unit Electrical Connection Wiring Definition BLUE BLACK GREEN YELLOW Wiring color function Receive RXD Send TXD DC 5V B、D- A、D+ Signal acquisition terminal RS485 Wiring diagram RS232 Wiring diagram Bewis Sensing Technology LLC www.bwsensing.com Tel: +89 18921292620... - Page 7 BW-IMU50 Low-cost Inertial Measurement Unit Debugging software You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software. BW-IMU50 supporting serial port debugging software can connect the inclination sensor on the computer to display the angle.
-
Page 8: Order Information
BW-IMU50 Low-cost Inertial Measurement Unit Order information Product model Communication mode Package situation BW-IMU50-485 RS485 IP67 Package /Metal joint BW-IMU50-232 RS232 IP67 Package /Metal joint BW-IMU50-TTL IP67 Package /Metal joint Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q-3290-RO-S) ●... - Page 9 BW-IMU50 Series Low-cost Inertial Measurement Unit Wuxi Bewis Sensing Technology LLC Add：Building 30, No.58 Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Email：sales@bwsensing.com Web：www.bwsensing.com...
