Summary of Contents for BW SENSING BW-IMU127 Series
Page 1
BW-IMU127 Series Low-cost Modbus Inertial Measurement Unit Technical Manual V3.0...
Page 2

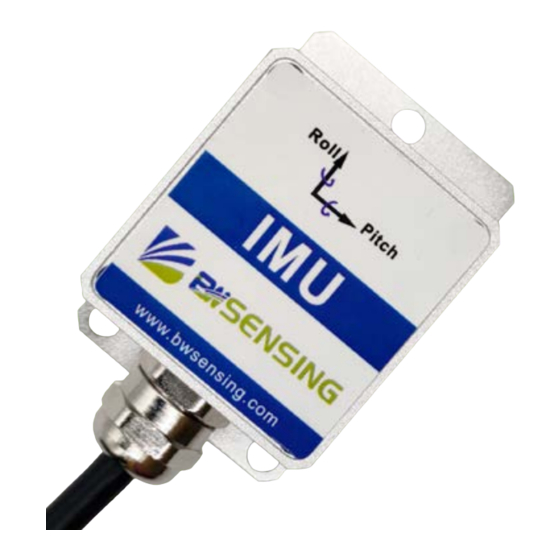

BW-IMU127 Low-cost Modbus Inertial Measurement Unit Introduction BW-IMU127 is a high-precision strapdown inertial measurement unit that can measure the angular velocity and acceleration of a moving carrier. The data deviation is estimated by the 6-state Kalman filter with appropriate gain, which is suitable for inertial attitude measurement in motion or vibration state.
BW-IMU127 Low-cost Modbus Inertial Measurement Unit Product Feature Electrical index Power voltage 9-35V DC Working current 30mA (40mA max) Operating temperature -40~85℃ Storage temperature -55~100℃ Performance index Resolution 0.01°/sec Range ±400°/sec Bias stability at room <2°/h(100s,1σ) temperature <100°/h(10s,1σ) Angle random walk <0.1 °/√h coefficient Gyro...
Page 4
BW-IMU127 Low-cost Modbus Inertial Measurement Unit Mechanical Index Metal joint(Cable 1.5m) Connector Protection level IP67 Shell material Magnesium aluminum alloy anodizing Installation Four M4 screws Package product size Product size:L55*W37*H24(mm) PCB size Product size:L33*W27*H6(mm) The length and width may have an error of ±1mm, please refer to the actual product Bewis Sensing Technology LLC www.bwsensing.com Tel: +89 18921292620...
BW-IMU127 Low-cost Modbus Inertial Measurement Unit Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible, and there should be no included angles as shown in Figure A and Figure C.
BW-IMU127 Low-cost Modbus Inertial Measurement Unit Electrical Connection Wiring Definition BLUE BLACK GREEN YELLOW Wiring color function Receive RXD Send TXD DC 5V B、D- A、D+ Signal acquisition terminal RS485 Wiring diagram RS232 Wiring diagram Bewis Sensing Technology LLC www.bwsensing.com Tel: +89 18921292620...
Page 7
BW-IMU127 Low-cost Modbus Inertial Measurement Unit Debugging software You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software. BW-IMU127 supporting serial port debugging software can connect the inclination sensor on the computer to display the angle.
