- Page 1 BWM425 Series CAN Bus Dual Axis Inclinometer Technical Manual...
-
Page 2: Main Feature

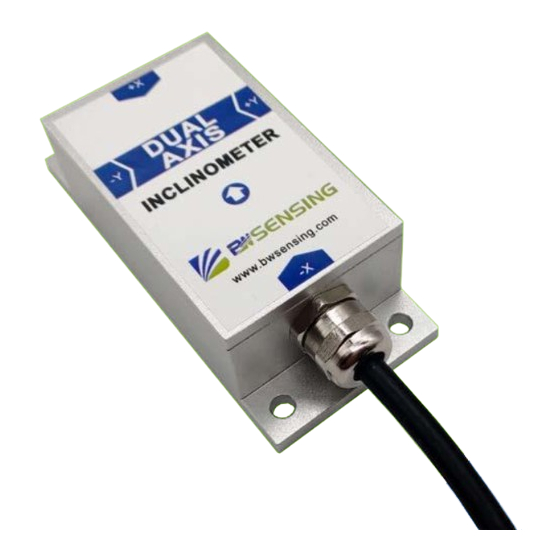

BWM425 CAN Bus Dual Axis Inclinometer Introduction BWM425 is a cost-effective dual-axis inclinometer developed and produced by Bewis Sensing, which adopts MEMS technology and CAN output. It has a measurement range of ±90°, the highest accuracy of 0.01°, and an operating temperature of -40°C to +85°C. The product uses a high- precision MEMS accelerometer and a high-resolution differential digital-to-analog converter, with built-in automatic compensation and filtering algorithms, which eliminates errors caused by environmental changes to the greatest extent. -
Page 3: Product Feature
BWM425 CAN Bus Dual Axis Inclinometer Product Feature Electrical Index Parameter Condition Minimum Typical Maximum Power voltage(V) Working Current (mA) No load Operating Temperature (℃) Storage Temperature (℃) Performance Index Measurement Range (°) Condition ±90 Measurement axis Accuracy (°) Room temperature 0.01 Resolution (°) Completely still... - Page 4 BWM425 CAN Bus Dual Axis Inclinometer Mechanical Index Connector Metal Joint（Cable 1.5m) Protection level IP67 Shell material Magnesium aluminum alloy oxidation Installation Three M4 screws Package product size Product size：L90*W40.5*H26（mm） Bara board product size The front device is 3.85mm, the back is 2.5mm, and the board thickness is 2.0mm Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Installation
BWM425 CAN Bus Dual Axis Inclinometer Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible, and there should be no included angles as shown in Figure A and Figure C. -
Page 6: Electrical Interface
BWM425 CAN Bus Dual Axis Inclinometer Electrical Interface Wiring Definition BLUE BLACK GREEN YELLOW Wire color function GND ground CAN L CAN H DC 9-36V Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620... -
Page 7: Order Information
BWM425 CAN Bus Dual Axis Inclinometer Order information Model Communication code Package situation BWM425-90-CAN IP67 Package/Metal joint Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064- 21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ● ROHS (certificate Number: G 190930099) ●... - Page 8 BWM425 Series CAN Bus Dual Axis Inclinometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
