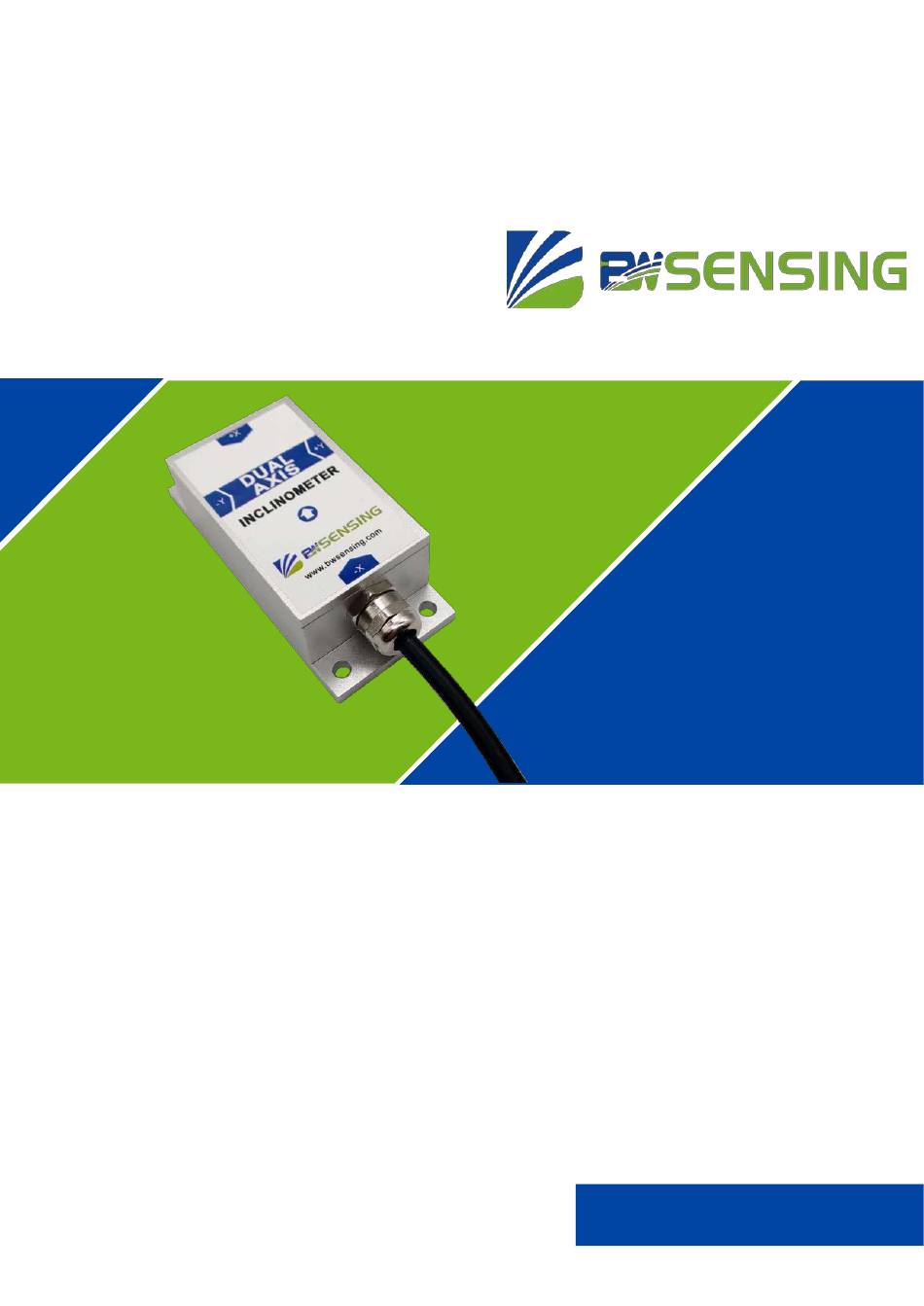

- Page 1 BWM826 Series Digital Dual Axis Inclinometer Technical Manual V3.0...
-
Page 2: Main Feature

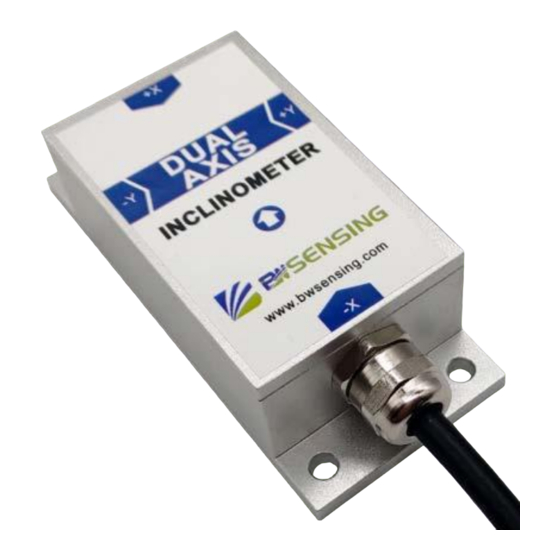

BWM826 Digital Dual Axis Inclinometer Introduction BWM826 is a cost-effective dual-axis inclinometer developed and produced by Bewis Sensing, which adopts MEMS technology and digital output. The measuring range is ±30°, the highest accuracy is 0.005°, and the working temperature is -40°C-+85°C. The product uses a high-precision MEMS accelerometer and a high-resolution differential digital-to-analog converter, with built-in automatic compensation and filtering algorithms, which largely eliminates errors caused by environmental changes. -
Page 3: Product Feature
BWM826 Digital Dual Axis Inclinometer Product Feature Electric index Parameter Condition Minimum Typical Maximum Power voltage (V) Working current(mA) No load Operating Temperature (℃) Storage Temperature (℃) Performance index Measurement Range (°) Condition ±30 Measurement axis Accuracy (°) Room temperature 0.005（Within±5°）... - Page 4 BWM826 Digital Dual Axis Inclinometer Mechanical Index Connector Metal Joint（Cable 1.5m) Protection level IP67 Shell material Magnesium aluminum alloy anodizing Installation Four M4 screws Package product size Product size：L90*W40.5*H26（mm） Bare board product size The front device is 3.85mm, the back is 2.5mm, and the board thickness is 2.0mm Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620...
-
Page 5: Installation
BWM826 Digital Dual Axis Inclinometer Installation The correct installation method can avoid measurement errors. When installing the sensor, please do the following: First of all, make sure that the sensor mounting surface is completely close to the measured surface, and the measured surface should be as level as possible, and there should be no included angles as shown in Figure A and Figure C. -
Page 6: Electrical Interface
BWM826 Digital Dual Axis Inclinometer Electrical Interface Wiring definition BLUE BLACK GREEN YELLOW Wire color function GND ground DC 9-36V 485- 485+ Bewis Sensing Technology LLC www.bwsensing.com Tel：+86 18921292620... - Page 7 BWM826 Digital Dual Axis Inclinometer Debugging software You can download the serial debugging assistant directly on the official website (technical service -> download area), or you can use the more convenient and intuitive host computer software. BWM826 supporting serial port debugging software can connect the inclination sensor on the computer to display the angle.
-
Page 8: Order Information
BWM826 Digital Dual Axis Inclinometer Order information Model Communication mode Package situation BWM826-30-485 RS485 IP67 Package/Metal joint BWM826-30-TTL IP67 Package/Metal joint BWM826-30-232 RS232 IP67 Package/Metal joint Executive standard ● Enterprise Quality System Standard: ISO9001:2015 Standard (Certificate No.064-21-Q-3290-RO-S) ● CE certification (certificate number: M.2019.103. U Y1151) ●... - Page 9 BWM826 Series Digital Dual Axis Inclinometer Wuxi Bewis Sensing Technology LLC Add：Building 30, NO. 58, Xiuxi Road, Binhu District, Wuxi City, Jiangsu Province, China Tel：+86 18921292620 Mail：sales@bwsensing.com Web：www.bwsensing.com...
