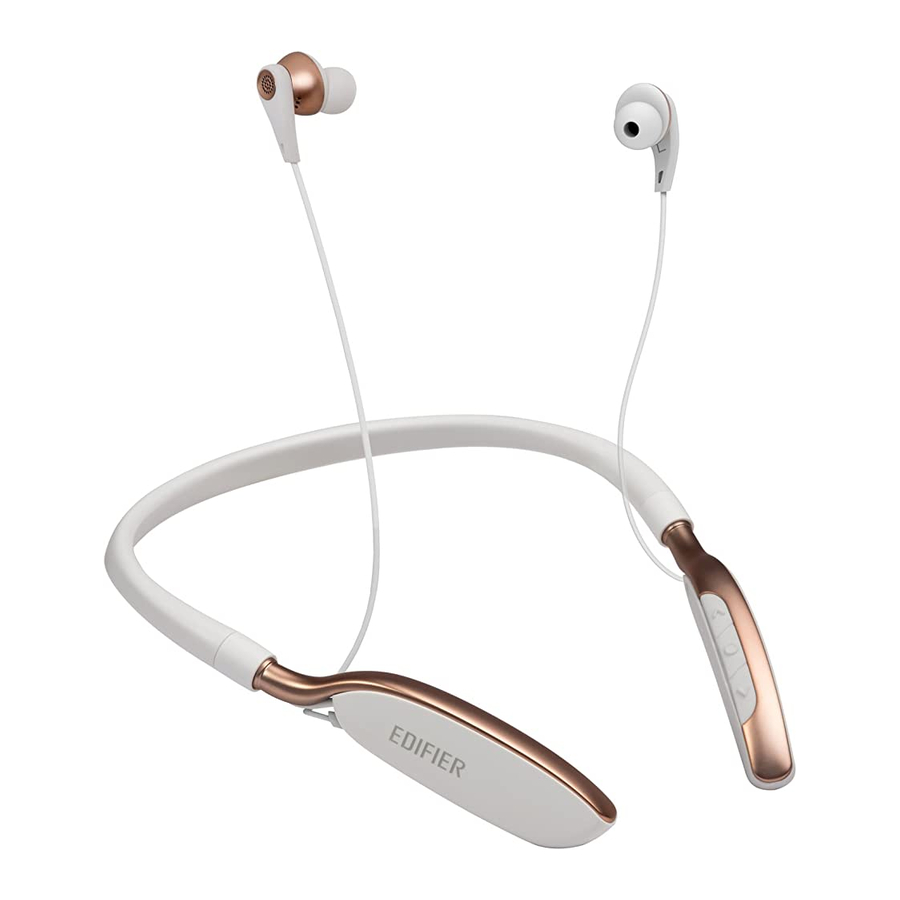

EDIFIER W360NB - Bluetooth Active Noise Canceling Stereo Headphones Manual

Introduction

Tips: Before use the headphone, please carefully read this user manual and keep it for further reference.

Features

Stylish, around-neck design of streamlined shape

13mm drivers for exceptional audio performance

Active Noise Canceling (ANC) technology greatly reduces background noise

Long-lasting battery supports up to 15 hours playback

On-board mic and remote for phone calls, music switching and volume control

Specifications

Bluetooth version: Bluetooth V4.1
Bluetooth profiles: HSP/HFP/A2DP/AVRCP
Effective distance: 10m
Working time: 15 hours
Standby time: About 500 hours
Input: DC5.0V 500mA
Charging time: About 2.5 hours
Frequency response: 20Hz-20KHz
Sensitivity: 108±3dB
Impedance: 32Ω

Note: The design and specifications may be changed without prior notice in order to make improvements.

Box content

Accessories

How to wear

1. Make headphone cable downward, and from the rear neck wear ear hook;
2. Properly insert headphones into ears and adjust to a comfortable status.

Operation instructions

Charging

During using, red indicator instead of blue indicator blinks, it indicates low batter level; please use it after fully charged.

1. Insert USB charging cable into USB socket of standard power source.
2. Connect the other end to Micro USB charging port on the headphone.

Red light constantly lit = charging
red light off, blue light constantly lit = fully charged
Charging time: about 2.5 hours for a full charging

Tips:
Before the first time use, recommend to fully charge the battery to avoid shortening the battery life; please charge the battery at least once per three months when un-use the headphone for a long time.

The rechargeable batteries that provide power for this product must be disposed properly for recycling. Do not dispose of batteries in fire to prevent an explosion.

Power ON/OFF

Pairing

1. Follow the below operation to make the headphone enter pairing mode

2. Keep headphone and Bluetooth device to be connected within 1 meter, the closer the better.
3. Enable Bluetooth function in Bluetooth device to search and connect device;
4. Select "EDIFIER W360NB" to pair, blue light will blink slowly after successfully connected.

Tips:
* During pairing, pin code for connection is "0000" if needed
* After paired, headphone will automatically connect to the last connected Bluetooth device next time.
* When beyond effective distance, it will automatically re-connect if return in 10 minutes, blue right will blink once per 8 seconds along with prompt tone.

Connect two Bluetooth devices simultaneously

1. Pair headphone with the first Bluetooth device
2. Restart the headphone to enter pairing status and pair with the second Bluetooth device.
3. Operate the first Bluetooth device to connect the headphone, then finish to connect two Bluetooth device.

Calling

1. Basic call operation

Function	Headphone status	Operation
Answer incoming call	Incoming call ringing	Press the multi-function key
Reject incoming call	Incoming call ringing	Press and hold the multi-function key for about 2 seconds
Cancel call	Calling	Press the multi-function key
End call	Talking	Press the multi-function key
Increase volume	Talking	Press the key
Decrease volume	Talking	Press the key
Mute	Talking	Press and hold the key for about 2 seconds
Cancel mute	Talking(mute)	Press and hold the key for about 2 seconds
Talking transferred to mobile	Talking (headphone)	Press and hold the multi-function key for about 2 seconds
Talking transferred to headphones	Talking (mobile phone)	Press and hold the multi-function key for about 2 seconds
Last call redial	Connected device	Double press the multi-function key
Voice dial	Connected device	Press and hold the multi-function key for 2 seconds

Tips:

1. When adjust the volume to the maximum, you will hear a prompt tone.
2. When use the voice dial, please ensure that your mobile phone supports this function and enable this status.

Make three way call

Function	Headphone status	Operation
End the current call to answer the new incoming call	There is the second incoming call	Press the multi-function key
Remain the current call to answer the new incoming call	There is the second incoming call	Double press the multi-function key
Call switching	Talking	Double press the multi-function key
End current call and switch to the remained call	Talking	Press the multi-function key

Connect call between two mobiles

Function	Headphone status	Operation
End the first mobile's call, connect the second mobile's incoming call	The first mobile is talking, the second mobile having incoming call	Press the multi-function key
Remain the first mobile's call, connect the second mobile's incoming call	The first mobile is talking, the second mobile is having incoming call	Double press the multi-function key
Switch calls and end the current call	Talking, a call is remained	Double press the multi-function key
Return to the remained mobile	Talking, a call is remained	Press the multi-function key

Note: If IOS system phones cannot answer incoming call from the second phone after double-clicking on the first phone when the first phone is in conversation, please repeat the double-clicking to transfer to conversation on the second phone. It is caused by CSR chip setting limitation, not the function defect of headphone.

Play music

Function	Headphone status	Operation
Increase volume	Play music	Press the key
Decrease volume	Play music	Press the key
Previous track	Play music	Press and hold the key
Next track	Play music	Press and hold the key
Pause playing	Play music	Press the multi-function key
Restore playing	Pause playing	Press the multi-function key

Restore factory settings

Under Bluetooth searching status (red/blue light quickly flashes alternatively), press and hold the volume increasing key ∧and volume decreasing key ∨at the same time for 5 seconds; Connect headphone to USB port of computer or USB power adapter using charging cable, it indicates that headphone restore successfully when red light is lit. It will clear the device list that headphone paired before, after successful clear with it, turn on the headphone, it will automatically enter into pairing status.

Maintenance

• Do not place the product at the damp places to avoid affecting internal circuit.
• Do not place the product at the places exposed to sun or in high temperature. High temperature will shorten the service life of electronic components, damage battery and make some plastic components deformed.
• Do not place the product in very cold places to prevent damaging the internal circuit board.
• Do not try to dismantle the product. The non-professional personnel may damage the product.
• Do not fall, vibrate strongly, strike the product with hard object to prevent damaging the internal circuit.
• Do not use drastic chemical products or cleaner to clean the headphones.
• Do not use sharp objects to scratch on the product surface to prevent damaging the outer case and affecting looking.

If the product cannot work normally, please send it to your qualified repair agency, the staff will warmly help you solve the problem.

FAQs

1. The red light flashes instead of the blue light.
   Answer: It means that the headphone battery is low. You need to recharge the headphone.

2. The red light is off during charging.
   Answer:
   1. Please ensure the charging device is properly connected with the headphone.
   2. When the headphone is not used for a long time, the battery will enter the hibernate status. Now it needs to charge about 30 minutes and then the red light shall be on.

3. No sound from the headphone.
   Answer:
   1. Conform if the headphone volume is in an available level.
   2. Conform if the headphone is properly connected to mobile.
   3. Conform the headphone and mobile phone is in an effective distance and no other obstacle.

4. Headphone is not good for talking.
   Answer:
   1. Please ensure if your mobile phone is in the area with strong signal.
   2. The effective operational distance of the headphone is 10m. Please ensure the headphone is within effective operational distance and there is no obstacle between the headphone and mobile phone.

5. Why can not the headphone pause, restore, songs control when playing music?
   Answer: The function requires the device paired with the headphone to support AVRCP (Audio/Video Remote Control Profile) protocol.
