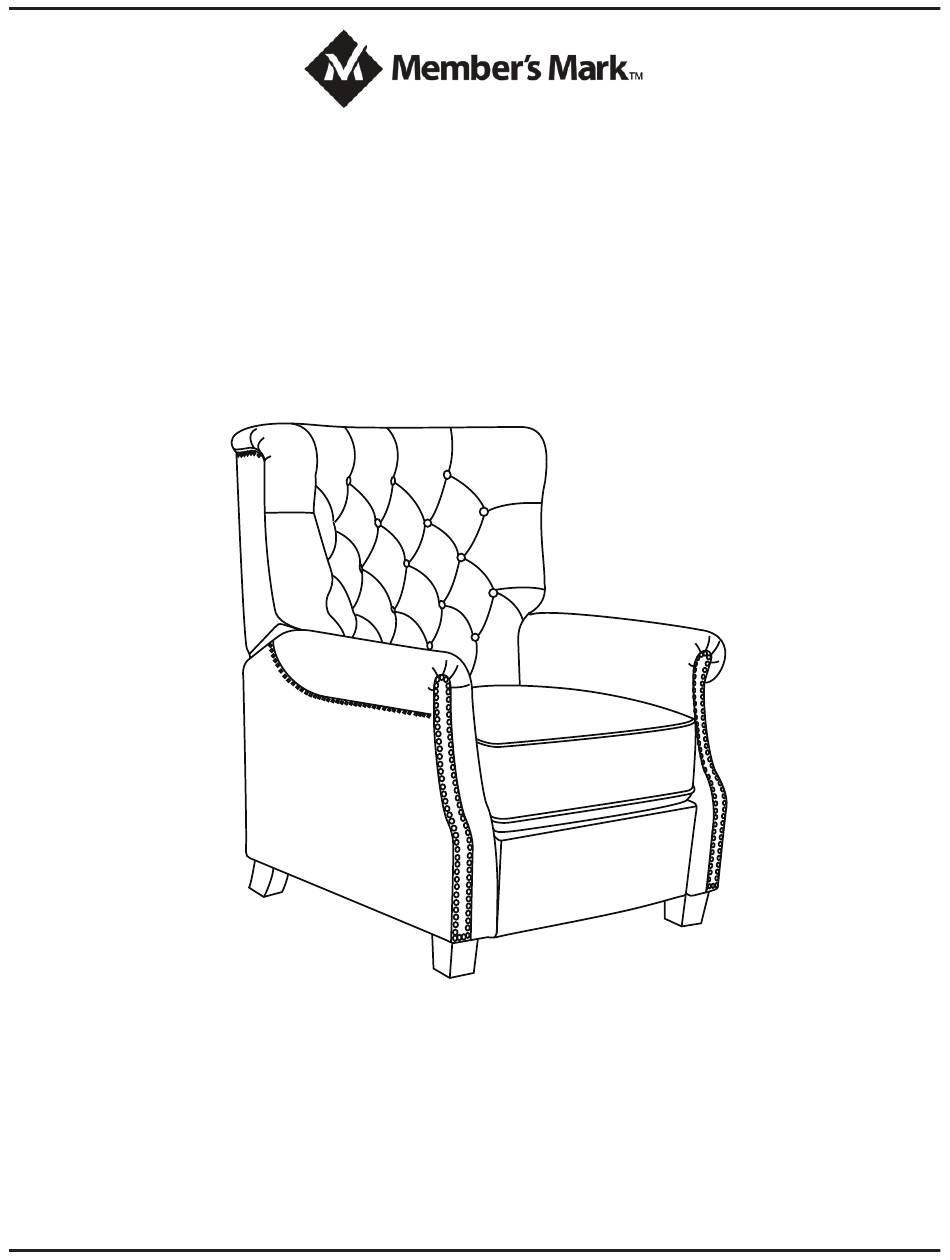

- Page 1 Assembly Manual Corrine Push Back Recliner Model Number: 264-8131B-96 THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Important Safety Information Please read all instructions carefully before assembling this furniture. For your safety, assembly by two or more adults is strongly recommended. Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. Hardware may loosen overtime.
- Page 3 Components A....1 Seat Cushion B ....1 Back Cushion C ....2 Front Wood Legs D ....2 Back Wood Legs Hardware (H2) (H3) (H1) 5/16"x3" L Spring Washer Flat Washer Screw Qty: 4 Qty: 4 Qty: 4 (H4) Hex Wrench Qty: 1 Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 4 Step 1 Remove all parts from the carton and place them on a protected surface or carpet. Take out the wood legs (C & D) at the bottom of the Seat Cushion (A). Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
- Page 5 Step 2 (H1) (H2) (H3) 5/16“x80mm L Spring Washer Flat Washer Screw Qty: 4 Qty: 4 Qty: 4 (H4) Hex Wrench Qty: 1 Correct side view Correct back view Incorrect side view Incorrect side view When assembling the wood legs (C&D), align the hole at the bottom of the Seat Cushion (A) with the wood dowel onto the wood legs first, then attach wood legs (C&D) to the bottom of the Seat Cushion (A) using 5/16'' ×...
- Page 6 Step 3 Attach the Back Cushion (B) to the Seat Cushion (A) by sliding the receivers into the mechanism posts located on the Seat Cushion (A). From the front of the recliner, press down on both sides of the Back Cushion (B) to firmly secure. The Back Cushion (B) and Seat Cushion (A) will automatically lock into place.
- Page 7 Step 4 TV POSITION FULL RECLINE While seated, push onto the back cushion to recline. It will move backwards raising the footrest at the same time. To return the footrest to the closed position, apply more weight onto the footrest. Need Assistance? Visit us at: samsclub.com/membersmarkhelp...
