BS-360

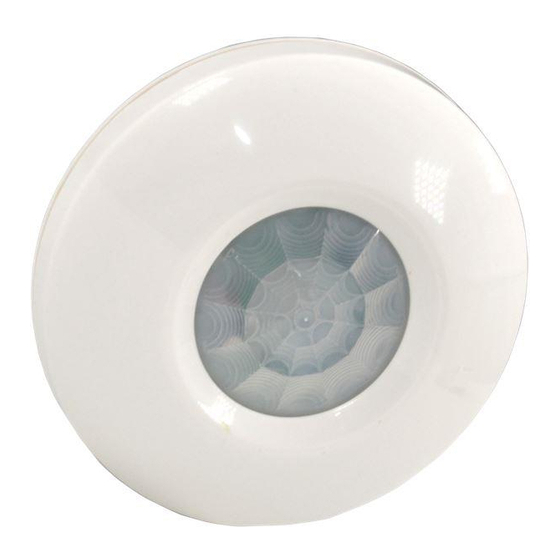

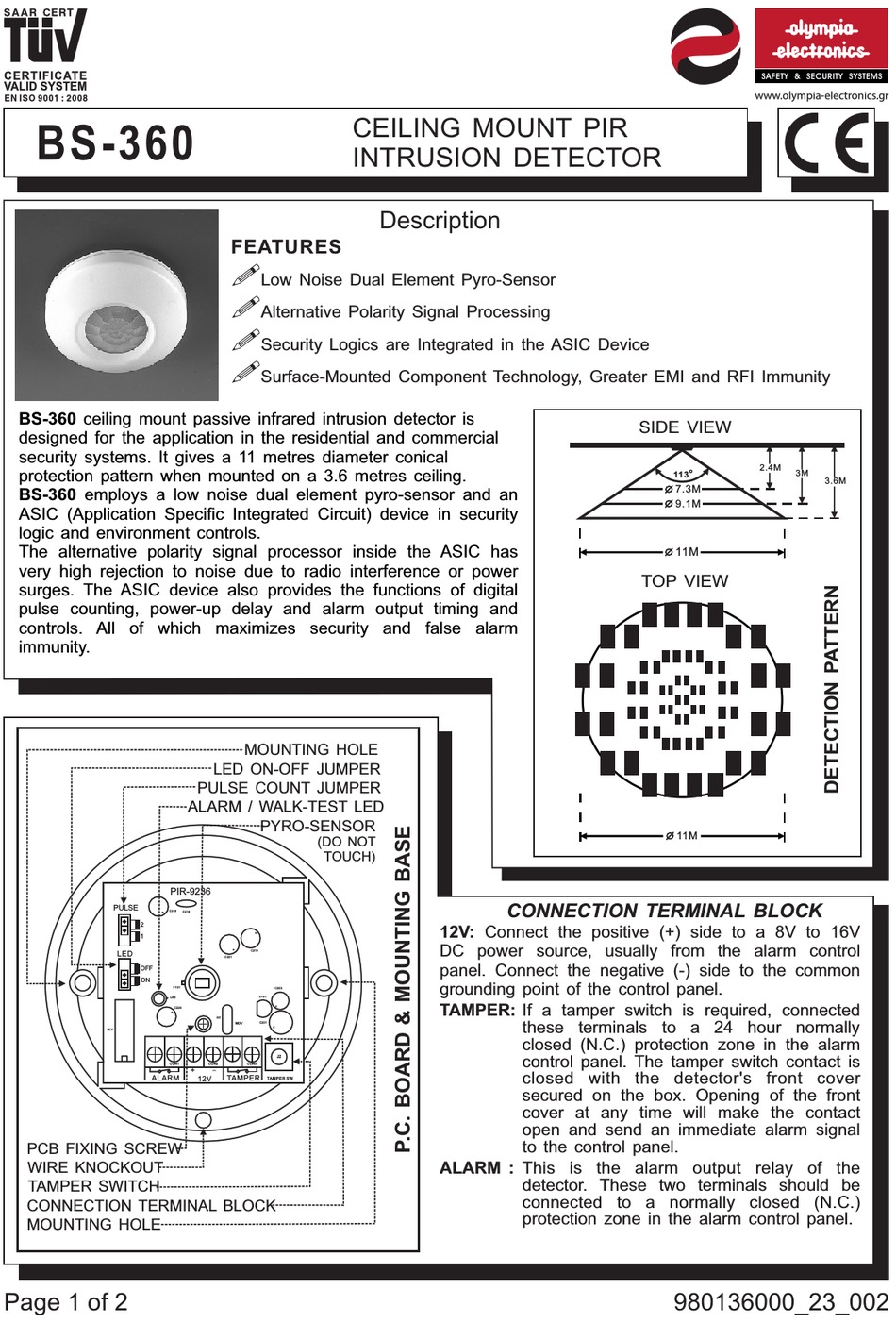

BS-360 ceiling mount passive infrared intrusion detector is
designed for the application in the residential and commercial
security systems. It gives a 11 metres diameter conical
protection pattern when mounted on a 3.6 metres ceiling.
BS-360 employs a low noise dual element pyro-sensor and an
ASIC (Application Specific Integrated Circuit) device in security
logic and environment controls.
The alternative polarity signal processor inside the ASIC has
very high rejection to noise due to radio interference or power
surges. The ASIC device also provides the functions of digital
pulse counting, power-up delay and alarm output timing and
controls. All of which maximizes security and false alarm
immunity.
PIR-9236
PULSE
C215
2
1
LED
OFF
ON
P101
LED
RLY
CON1
ALARM
PCB FIXING SCREW
WIRE KNOCKOUT
TAMPER SWITCH
CONNECTION TERMINAL BLOCK
Mounting HOLE
Page 1 of 2

FEATURES

!
Low Noise Dual Element Pyro-Sensor
!
Alternative Polarity Signal Processing
!
Security Logics are Integrated in the ASIC Device
!
Surface-Mounted Component Technology, Greater EMI and RFI Immunity
MOUNTING HOLE
LED ON-OFF JUMPER
PULSE COUNT JUMPER
ALARM / WALK-TEST LED
PYRO-SENSOR
(DO NOT
TOUCH)
C216
+
C219
C221
C203
U101
C226
H1
C201
MOV
J2
CON2 CON3
+ -
TAMPER
12V TAMPER SW
CEILING MOUNT PIR
INTRUSION DETECTOR

Description

CONNECTION TERMINAL BLOCK
12V: Connect the positive (+) side to a 8V to 16V
DC power source, usually from the alarm control
panel. Connect the negative (-) side to the common
grounding point of the control panel.
TAMPER: If a tamper switch is required, connected
ALARM : This is the alarm output relay of the
SIDE VIEW
o
113
7.3M
9.1M
11M
TOP VIEW
11M
these terminals to a 24 hour normally
closed (N.C.) protection zone in the alarm
control panel. The tamper switch contact is
closed with the detector's front cover
secured on the box. Opening of the front
cover at any time will make the contact
open and send an immediate alarm signal
to the control panel.
detector. These two terminals should be
connected to a normally closed (N.C.)
protection zone in the alarm control panel.
980136000_23_002
2.4M
3M
3.6M
