BS-470
BS-470

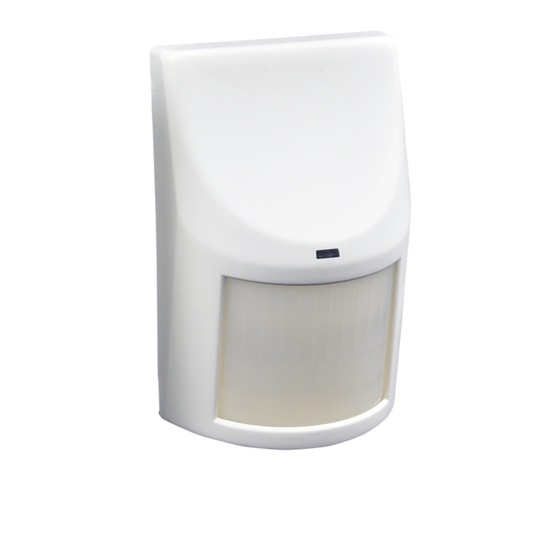

The wireless infrared motion detector BS-470
incorporates a special high efficiency, multi-focal
and wide angle lens. Microprocessor controlled
improved circuitry along with a shielded input
stage ensure maximum protection and external
interference avoidance thus avoiding false
triggering of the device.
The housing of the device has the appropriate
infrastructure to be placed either on a flat surface
or at an angle of surfaces when required.
The device must be mounted in such a position in
order to permit the best possible surveillance.
The mounting height should be between 2.2 and
2.5 meters, with an ideal height of 2.4 metres.
In order to avoid unintended false alarms, the
detectors must not be mounted in areas that have
hot air or air drafts in general such as over
radiators. It must not be mounted near devices that
emit radio waves such as WiFi repeaters and also
must not be in the path of direct sunlight.
Page 1 of 5
Thank you for your trust in our products
Olympia Electronics - European manufacturer
MOUNTING THE DEVICE
MOUNTING THE DEVICE
Wireless infrared motion detector
Wireless infrared motion detector
for BS-468/A burglar alarm panel
for BS-468/A burglar alarm panel
Shielded input stage to protect against
external interference
Normal and high-sensitivity mode to prevent
small pets activation
Maximum coverage, on the vertical axis, 12m.
Protection from reverse battery installation
Elegant design
The sensitivity selection can be used to avoid false
triggering in the presence of small pets.
BS-470

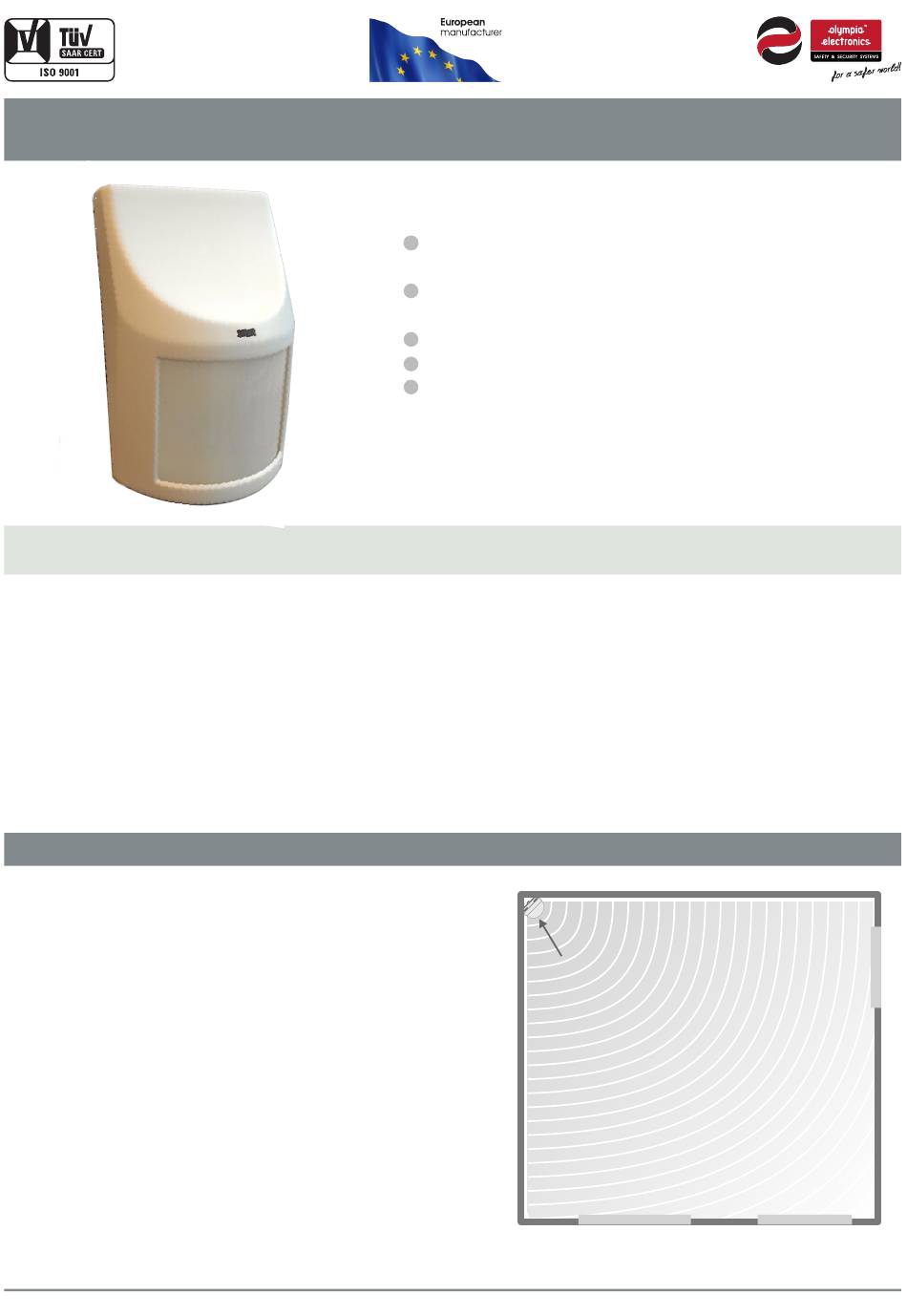

Mounting example in a typical room
Balcony door
921470000_09_005
Room
door
Window
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for olympia electronics BS-470
Summary of Contents for olympia electronics BS-470
- Page 1 Elegant design Thank you for your trust in our products Olympia Electronics - European manufacturer The wireless infrared motion detector BS-470 The sensitivity selection can be used to avoid false incorporates a special high efficiency, multi-focal triggering in the presence of small pets.
- Page 2 If normal sensitivity is selected then care must be taken that house pets do not have access to furniture that is near or at the same height as the detector in order to avoid false triggering. Physical obstructions such as walls, furniture, separators, glass dividers e.t.c must be avoided because they will degrade the detection area of the detector.
- Page 3 INTERNAL LAYOUT AND SETTINGS (continued) INTERNAL LAYOUT AND SETTINGS (continued) Connection Point C Point A Point C Terminal Cable entry mounting point Cable entry for wall mounting Battery CR123A Tamper Switch Input stage Point Β shielding Angle or corner mounitng Infrared sensor Settings...
- Page 4 NOTE:The maximum distance of the external sensor cable is 3 meters !!! Figure 1 Example of connection NC external magnetic contacts with BS-470 RANGE TEST RANGE TEST Once the device is connected to the panel's network, remove the battery and wait for 10 seconds.
- Page 5 Olympia Electronics reserves the right to repair or to replace the returned goods and to or not charge the buyer depending on the reason of defection. Olympia Electronics reserves the right to charge or not the buyer the transportation cost.
