B S - 1 1 6
16 TO 64 ZONE DIGITAL
FIRE DETECTION PANEL
ALARM
BATTERY
POWER
DISABLE
CPU
TEST
LIST
FAULT
SIREN
FIRE DETECTION CONTROL UNIT
FIRE DETECTION CONTROL UNIT
A L A R M
E V E N T S
FA U LT
E V E N T S
O N - O F F
B U Z Z E R
16 TO 64 ZONE FIRE DETECTION SYSTEM
Description - Connections - Operation instructions
yes
no
1
2
3
F 1
A B C D E
F G H I J
K L M N O
4
5
6
P Q R S T
U V W X Y
Z Ã Ä È Ë
7
8
9
Î Ð Ó Ö Ø
Ù # ( ) ?
% & ! + -
space
H E L P
ESC
ENTER
0
CONTENTS
6.1 Operation level 1
6.2 Operation level 2
Date
22 December 2004
File
09-E
Code
1116000.09-E
Page
2 from 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for olympia electronics BS-116

Summary of Contents for olympia electronics BS-116

  • Page 1: Table Of Contents

    Date 22 December 2004 File 09-E Code 1116000.09-E Page 2 from 20 CONTENTS 1. Preface 2. Device Types 3. Configuration selections 4. Connections 5.Starting configuration (Setup) 6. Operation procedures 6.1 Operation level 1 6.2 Operation level 2 6.3 User instructions B S - 1 1 6 16 TO 64 ZONE DIGITAL FIRE DETECTION PANEL...

  • Page 2: Preface

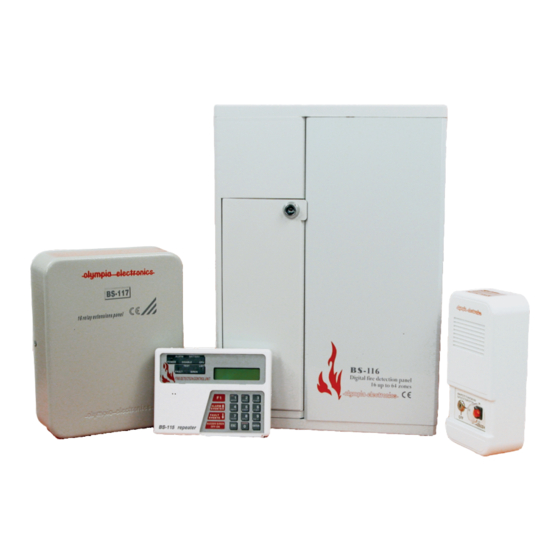

    BS-115 BS-115 BS-115 2. Device types BS-114 No 1 No 2 No 3 BS-116 The system consists of the following device types : panel No 1 Type Description BS-116 16 zone fire detection panel BS-114 Keyboard- fire detection control and programming device...

  • Page 3: Connections

    Date Date 22 December 2004 22 December 2004 File 09-E File 09-E Code 1116000.09-E Code 1116000.09-E Page 5 from 20 Page 6 from 20 4. Connections Each panel has the required terminal blocks for connecting 2 siren circuits, bells or other All connections to the panel must be made before connecting the battery and the mains output devices that operate with 24Vdc.

  • Page 4: Operation Procedures

    SYSTEM READY If no history record If a history record is available is available RESET DELETED olympia electronics ENTER SELECT->ENTER NOT EXIST ×× ALARM EVENT ×× ÓÕÌÂÁÍ AL ARM ¹ The system has deleted the history record and is ready for testing and operation .

  • Page 5: User Instructions

    Page 10 from 20 6.3 User instructions. In quiescent state the panel shows : System Ready <0000> olympia electronics The detectors are reset, the LEDs are SELECT->ENTER GENERAL SYSTEM tuned off, the sirens are silenced and If the panel detects an error (e.g. Disconnection of the battery) the Display shows : ENTER the relays are deactivated.

  • Page 6: Programming - Tests - Information

    Date Date 22 December 2004 22 December 2004 File 09-E File 09-E Code 1116000.09-E Code 1116000.09-E Page 11 from 20 Page 12 from 20 With the numeric keypad we select the required RESET ZONE 7. Programming - tests - information zone and after pressing ‘ENTER’...

  • Page 7: Programming

    Date 22 December 2004 Date 22 December 2004 File File 09-E 09-E Code Code 1116000.09-E 1116000.09-E Page 13 from 20 Page 14 from 20 The display shows: TEST MODE When ‘ENTER’ is pressed the system will start a check that includes a 1234567890123456 HARDWARE CHECK HARDWARE check of the panel, the zones, the sirens, and the ‘24V-...

  • Page 8: Information

    Date Date 22 December 2004 22 December 2004 File 09-E File 09-E Code 1116000.09-E Code 1116000.09-E Page 15 from 20 Page 16 from 20 1 = interruptible operation with 3 seconds ÏÍ - 5 seconds OFF. 7.3 Information SELECT->ENTER 2 = interruptible operation with 10 seconds ÏÍ - 5 seconds OFF. The third option available in the technicians menu is INFORMATION 3 = interruptible operation with 5 seconds ÏÍ...

  • Page 9: Deactivation

    Date Date 22 December 2004 22 December 2004 File 09-E File 09-E.doc Code 1116000.09-E Code 1116000.09-E Page 17 from 20 Page 18 from 20 7.4 Deactivation DISABLE With the numeric keypad and the ‘ENTER’ key select a specific relay RELAY (1/64) (e.g.

  • Page 10: History Record Deletion

    Date Date 22 December 2004 22 December 2004 File 09-E File 09-E Code 1116000.09-E Code 1116000.09-E Page 19 from 20 Page 20 from 20 ENABLE With the numeric keypad and the ‘ENTER’ key select the required 7.9 Setting the service access code SIREN SIREN output.

This manual is also suitable for:

Bs-114Bs-115Bs-117Bs-118Bs-119
