olympia electronics BSR-6057/A Quick Start Manual

BSR-6057/A

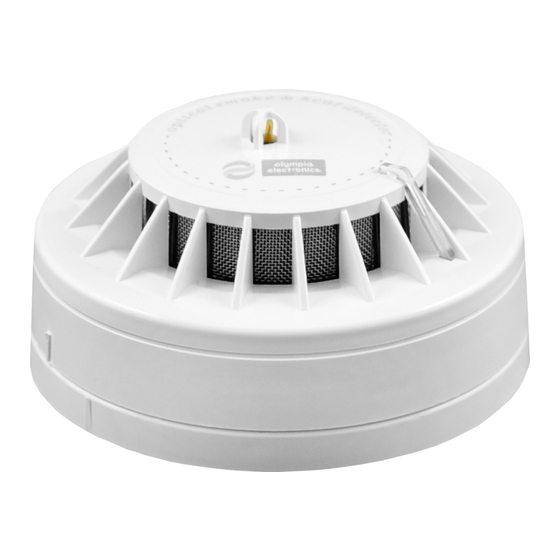

ADDRESSABLE OPTICAL SMOKE AND THERMAL DETECTOR
TECHNICAL CHARACTERISTICS
OPERATION VOLTAGE
IDLE STATE POWER CONSUMPTION
ALARM POWER CONSUMPTION
SENSITIVITY
INDICATORS/OUTPUT
CLASS
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
Congratulations for your selection to buy this product.
Olympia Electronics - European manufacturers.
GENERAL
Before installing the detector, the user must read
these instructions carefully and store this manual
for future reference.
BSR-6057/A is an addressable optical smoke
and thermal detector. It co-operates with BSR-
1116 and BSR-2100 panels. The device
transmits an analogue value to the panel which
depends on the amount of the smoke that there is
in the area. The analogue value is 100 with
obscuration rate 0.120dB/m (small amount of
smoke).
The factory setting of the panel is to issue an
alarm when the analogue value is greater than
110.
The user can change from the panel this
analogue value from 100 (high sensitivity) up to
120 (low sensitivity).
o
At the temperature of 60 C the thermal detector
is activated and gives an 120 value.
They have two parts, one plastic base which is
installed on the ceiling and the main unit of the
detector which is fastened to the base by a
simple turning to the right.
The detectors have an indication led which
lights continuously in case of fire detection until
there is a reset signal from the panel. When we
silence the sirens the LED remains lit to show us
the detector that issued the alarm. The LED goes
off when we RESET the panel. The indication led
also flashes every 8 sec to indicate good
operation.
ADDRESS SETTING
To set each detector's address you have to use
the device BSR-2143 photo. 1. (refer to it's
instruction manual). After the address setting
Page 1 from 3
21-28V DC
1mA
1.5 mA (with indication LED activated)
o
0.120dB/m and 60 C
Alarm LED/to external LED driver (BS-572)
A2S
IP 20
EN 54-5, EN 54-7
o
-10 to 60 C
Up to 95%
103 (diam.) x 48 (height) mm
160gr.
2 years
mark this number to the sticker on the detector's
base (ADR:XXX). Each detector must have an
address with which it is recognized from the panel.
It`s forbidden for two devices with same
addresses to be connect to the same loop.
OPERATION CHECK
The operation check can be done by spraying a
small amount of smoke into the detector's
chamber. You can use the special smoke device
A-752 of our company, or a similar device.
It is advised to conduct a good operation test
every 6 months and every time the detector
position is changed.
It is essential to have good air circulation inside
the detector. Therefore care must be taken so
that the vents of the detector are not covered.
NOTE
The detectors must be placed in the ceiling on
visible areas with no side obstacles and away
from sides with no air circulation or strong air
currents and vapors. Each detector covers almost
2
50 m and the distance between two detectors
must not exceed 15m. Also the detectors must be
placed away from fluorescent tubes at least 50
cm.
The cables cross section must be from 0.5 to
2
1.5mm .
ATTENTION!!
After the device is installed, care must be taken,
so that the detector vents are not blocked by
anything (i.e. dust, paint). Failing to do so will
prevent the smoke particles to enter
detection chamber.
A f t e r t h e i n s t a l l a t i o n , i t i s t h e s o l e
responsibility of the user to maintain the
detector for good operation.
921605700_09_010
