olympia electronics BS-661/A Installation Instructions

Package Contents

1 Detector
Mounting Accessories
1
1 Manual

General

The user have to read carefully the following instructions, in order to be
properly informed and keep them for future use.

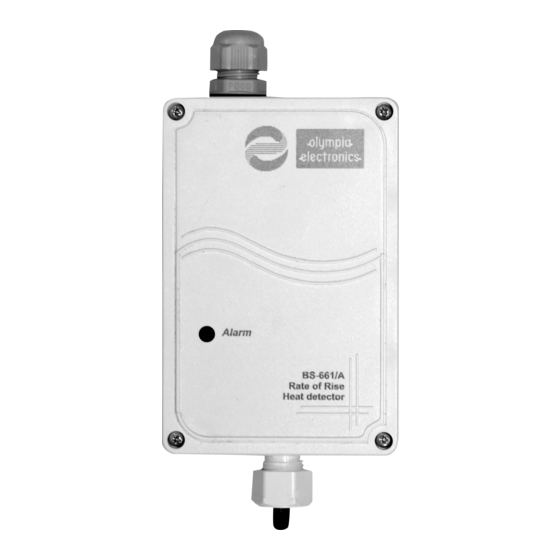

The BS-661/A is a conventional heat detector which integrates the
function of rate-of-rise heat detection. The detector transitions to
alarm state when the temperature reaches 57 C. Also, the detector
transitions to alarm state when the temperature rises suddenly by 32 C
regardless of the initial temperature at the beginning of the sudden rise
event.
The detector have a visible led and a remote led driver which are light
up constantly in case of detection of fire, till cancelled from the panel.
They are turned off only when a reset command is given from the panel.
The indicator led blinks every 7 sec indicating the normal function.

INSTALLATION

For spacings, heights and all mounting points consult the local/national
regulation or the standard EN 54-14/2018. The detectors must be
placed at least 50 cm away from fluorescent lamps. Cable cross-section
2
should be from 0.5 to 2.5mm .
MAINTENANCE & FUNCTIONAL TESTING
The detector has fault diagnosis function, which automatically informs
you through the onboard LED when detector replacement is required.
The indication LED blinks every 7 seconds. In normal operation it blinks
1 time and if there is a failure it blinks 3 times. These functions
combined with periodic manual testing ensure maximum security level.
It is suggested to carry out a test every 6 months or after a change in the
position of the sensor.
CAUTION !!
After installation the device must not be covered with dust or be
painted or anything else happen that will block the air to get to the
sensor. Special attention must be given during the installation and the
use of the device, since the user assumes full responsibility for proper
operation afterwards.
1
Installation Instructions
o
o
1
2
3
2
921661001_09_003
4
3
2 1
921539000_09_003
CONNECTION DIAGRAM
BS-661/A
+ -
ATTENTION!!!
DO NOT UNSCREW THE SENSOR'S LID
4
IP65
Sealing rubber
5
A
B
6
3
BS-661/A
LED BS-572
921539000_09_003
