olympia electronics BSR-6060/A Instruction Manual

BSR-6060/A
OPERATION VOLTAGE
IDLE STATE POWER CONSUMPTION
ALARM POWER CONSUMPTION
SENSITIVITY
INDICATORS
CLASS
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
Thank you for purchasing this product of
O l y m p i a E l e c t r o n i c s . A E u r o p e a n
manufacturer.
GENERAL
Before installing the detector, the user must
read these instructions carefully and store
this manual for future

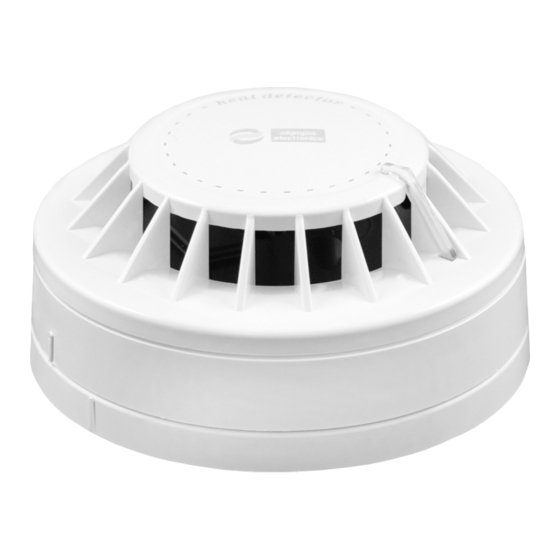

6060/A is a thermal and rate of rise detector
simultaneously. It co-operates with BSR-
1116 and BSR-2100 panels.
The device transmits an analogue value to
the panel which depends of the area's
temperature and the rate of temperature
r i s e . T h e a n a l o g u e v a l u e i s 1 0 0
o
(temperature 56 C) and increases one unit
per degree of the temperature increase. If
the temperature rises rapidly (over 5 C per
minute) then the analogue value that sends
the detector to the panel is 128. The factory
setting of the panel is to issue an alarm when
the analogue value is greater than 104. The
panel issues an alarm if the temperature
rises rapidly or if the temperature exceeds
o
the 60 C.The user can change this analogue
o
value from 100(56 C) up to 120(76 C).
The detector have two parts, one plastic
base which is installed on the ceiling and the
main unit of the detector which is fastened to
the base by a simple turning to the right.
The detectors have an indication led which
lights continuously in case of fire detection
until there is a reset signal from the panel.
When we silence the sirens the LED remains
lit to show us the detector that issued the
Page 1 from 2
High Quality European based Manufacturers
ADDRESSABLE RATE OF RISE HEAT DETECTOR
TECHNICAL CHARACTERISTICS
reference.BSR-
o
o
18-30V DC
1mA
1.5 mA (with indication LED activated)
5 °C / min
Alarm LED
A2R
IP 20
EN 54-5
o
-10 to 60 C
Up to 95%
103 (diam.) x 48 (height) mm
145gr.
2 years
alarm. The LED goes off when we RESET the
panel. The indication led also flashes every 8
sec to indicate good operation.
ADDRESS SETTING
To set each detector's address you have to
use the device BSR-2143 photo. 1. (refer to
it's instruction manual). After the address
setting mark this number to the sticker on the
detector's base (ADR:XXX). Each detector
must have an
address with which it is recognized from the
panel.
It`s forbidden for two devices with same
addresses to be connect to the same loop.
OPERATION CHECK
It is advised to conduct a good operation test
every 6 months and every time the detector
position is changed.
It is essential to have good air circulation
inside the detector. Therefore care must be
taken so that the vents of the detector are not
covered.
NOTE
The detectors must be placed in the ceiling on
visible areas with no side obstacles and away
from sides with no air circulation or strong air
currents and vapors. Each detector covers
2
almost 50 m and the distance between two
detectors must not exceed 15m.
The cables cross section must be from 0.5 to
2
1.5mm .
921606002_23_007
