BS-405/A
BS-405/A

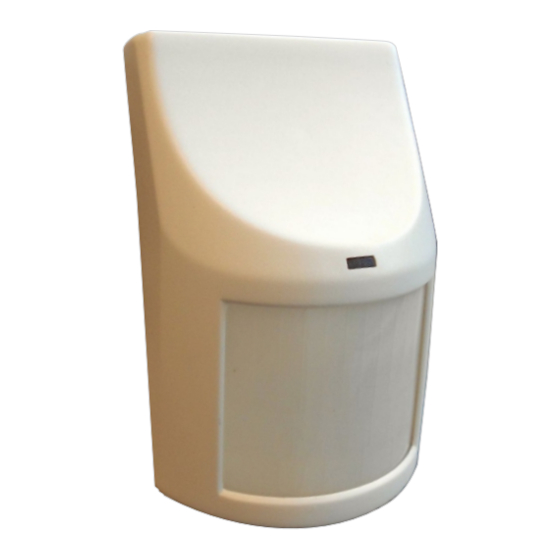

The BS-405/A movement detector incorporates a
special high efficiency, multi-focal and wide angle
lens. Microprocessor controlled improved circuitry
along with a shielded input stage ensure maximum
protection and external interference avoidance
thus avoiding false triggering of the device.
The product can be mounted either flat on a wall, at
an angle or in a corner depending on the area.
The sensitivity selection can be used to avoid false
triggering in the presence of small pets.
1, 2 or 3 pulse activation is used in areas with
The device must be mounted is such a position in
order to permit the biggest possible surveillance. It
must be mounted at a height between 2,2 and 2,5
meters and ideally at 2,4 meters.
In order to avoid unwanted false alarms, the
detectors must not be mounted in areas that have
hot air or air drafts in general such as over
radiators. It must not be mounted near devices that
emit radio waves such as WiFi repeaters and also
must not be in the path of direct sunlight.
If normal sensitivity is selected then care must be
taken that house pets do not have access to
furniture that is near or at the same height as the
detector in order to avoid false triggering. Physical
obstructions such as walls, furniture, separators,
glass dividers e.t.c must be avoided because they
Page 1 from 4
conventional burglar alarm panels
Thank you for your trust in our products
Olympia Electronics - European manufacturer

MOUNTING THE DEVICE

Infrared movement detector for
Shielded input stage to protect against
external interference
1, 2 or 3 pulse panel activation selection
Normal or high sensitivity selection to avoid
activating from small pets
Maximum coverage on the vertical axis, 12m.
Elegant design.
electromagnetic interference to avoid false
unwanted alarms.
BS-405/A
Balcony Door
Mounting example in a typical room
Room
Door
Window
