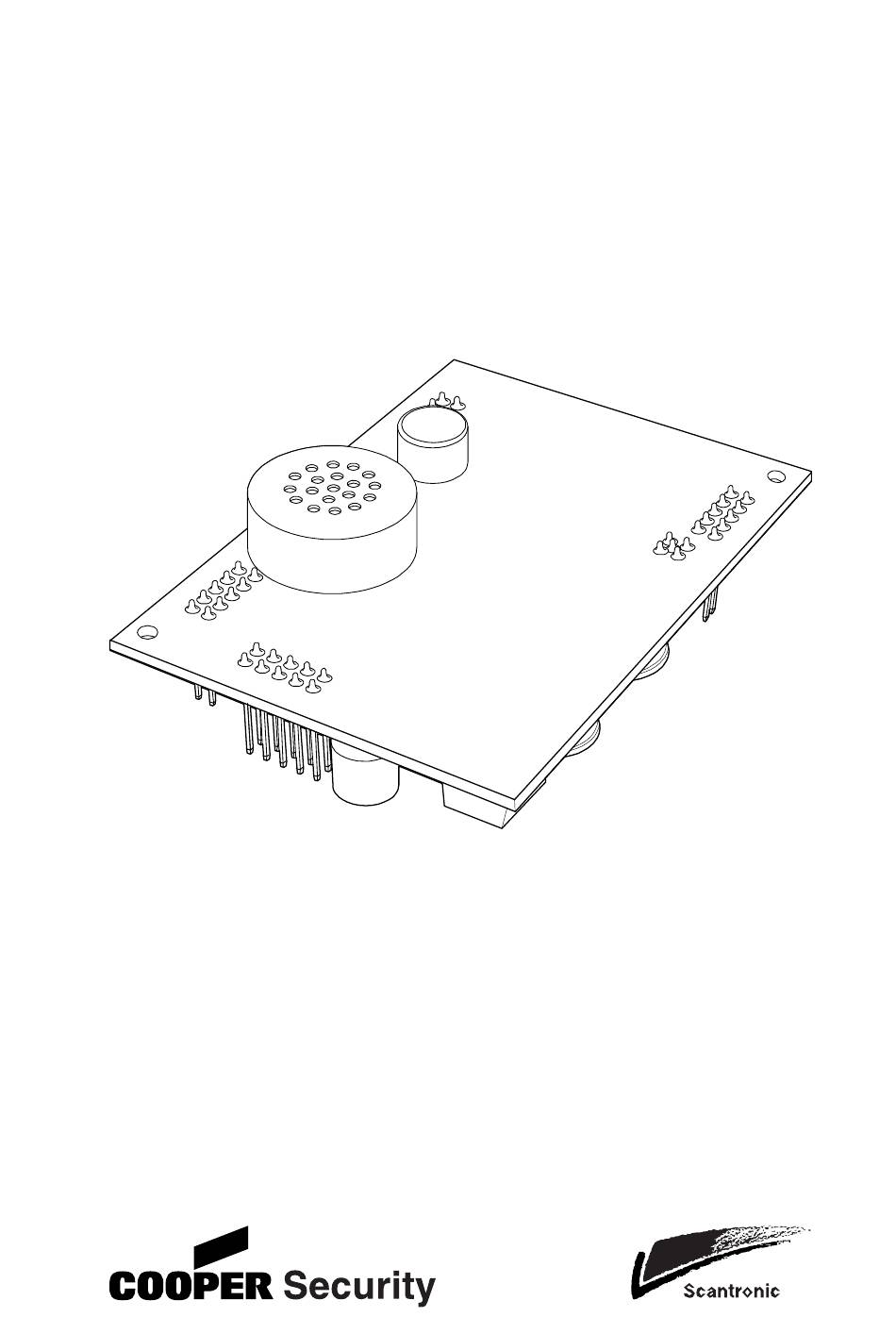

- Page 1 i-gsm02 GSM Module Installation and Programming Guide...
-
Page 2: Table Of Contents
Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice. -
Page 3: Introduction
i-gsm02 Introduction The i-gsm02 module is designed to fit on the i-on40 control unit. The i-gsm02 allows the control unit to report alarms over the mobile telephone network using either recorded speech messages, or SMS (Short Message Service) texts. The Figure 1 shows the main features of the module. -
Page 4: Siting The Antenna
i-gsm02 Siting the antenna Before installing the unit you must decide on a suitable location for the antenna. Site the antenna so that it can receive a good signal from the phone network. Note that the supplied antenna lead is 3m long. -
Page 5: Dealing With Poor Signal Strength
i-gsm02 to any mobile phone for emergency calls.) Check that the i-gsm02 SIM is registered before checking the signal strength. Caution: If you must remove the i-gsm02 module: a) remove all power from the control unit, both mains and battery, b) take care not to bend the pins. -
Page 6: Fitting The Module
i-gsm02 Fitting the Module Note: Do not fit the i-gsm02 OR its antenna until you have confirmed that there is adequate network signal strength. 1. Remove mains power from the i-on40 end station. 2. Caution: Open the end station lid and disconnect the battery. 3. -
Page 7: Registering A Sim Card
i-gsm02 5. Fit the i-gsm02 to the plug on module sockets (see Figure 5). Take care not to unseat the antenna lead connector. Do not use excessive force when seating the module. Figure 5. Fitting i-gsm02 Module 6. Using the supplied surface wipe, clean the area onto which you intend to stick the antenna. - Page 8 i-gsm02 9. Press u or press n to show: GSM Phone Utils. 10. Press Y to select. The screen will show the first option: Make Call. 11. Use the scroll keys ( ) and then Y, to select the following options: Make Call Allows you to enter a number and make a call via...
- Page 9 i-gsm02 "Searching..." Not registered, gsm module is searching for a new operator "Reg. Registration denied Denied" "Reg. Unknown Unknown" "Reg. Roam" Registered, roaming ("Reg. Roam" gets replaced with '*' and operator name when available) The exact details of registering your SIM card differ for each provider.
-
Page 10: Using Top Up Cards
i-gsm02 Vodafone To register a Vodafone SIM dial 2345 and follow the instructions given by the automatic answering service. During the instructions you will be given your GSM number. Make sure that you note this number down on the back of the top up card. Using Top Up Cards Avoid using a pay as you go account. -
Page 11: Recording Voice Messages
i-gsm02 Recording Voice Messages The microphone for recording speech messages is on the i-gsm02 module, as well as a small speaker that allows you to playback the messages. If you intend to record speech messages, and the user’s keypad is already fixed at some distance from the central station, you can temporarily enable the control unit tamper switch to act as a record/playback control as follows:... - Page 12 i-gsm02 NOTES: www.coopersecurity.co.uk Product Support (UK) Tel: +44 (0) 1594 541979. Available between: 08:15-12:30 and 13:30-17:00 Monday to Friday. Product Support Fax: (01594) 545401 Part Number 11952878 Issue 1 Page 12...
