Single Channel Video Transmit Unit with one Bi-directional
Data Channel and two Uni-directional Alarms for a

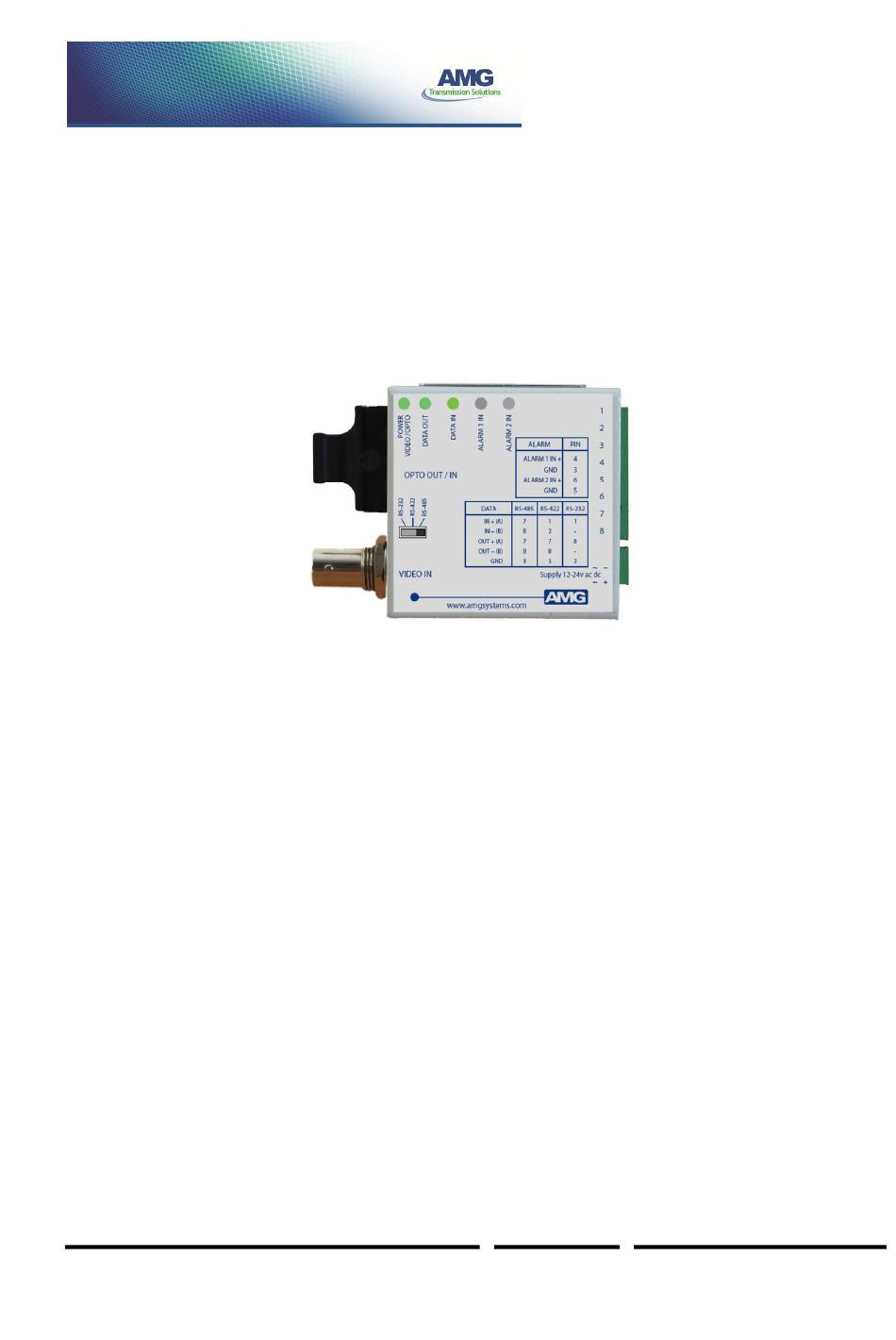

The AMG5615 is a compact standalone one channel video transmit unit designed to transmit 1 video
signal and transmit and receive 1 data signal plus 2 Uni-directional alarms over one Multimode optical
fibre.
The AMG5615 is designed to be powered using an AMG2001 standalone power supply.
The AMG5615 is designed to operate with an AMG5616 / AMG5616R single channel or AMG5626 /
AMG5626R dual channel video receive unit in a point to point configuration. The R suffix in the partno.
indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Multimode Fibre Link
AMG5615
Instruction Manual
Page 1 of 8
AMG5615 Instruction Sheet D17083-
07.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG5615
Summary of Contents for AMG AMG5615
- Page 1 Data Channel and two Uni-directional Alarms for a Multimode Fibre Link The AMG5615 is a compact standalone one channel video transmit unit designed to transmit 1 video signal and transmit and receive 1 data signal plus 2 Uni-directional alarms over one Multimode optical fibre.
- Page 2 Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5615 Instruction Sheet D17083- document without notice. The information herein is believed to 07.doc...
- Page 3 It also receives 1 data signal transmitted from the AMG5616. Optical Connection The AMG5615 connections are illustrated in the following example which shows two transmit units together with an AMG5626R two channel rackmount receive unit configured as a dual channel point to point system.
- Page 4 RS-422 – Switch Position - Centre RS-485 – Switch Position - Right Alarm input...........Contact Closure pull-up is 330R to +3V3 AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5615 Instruction Sheet D17083- document without notice. The information herein is believed to 07.doc...
- Page 5 ALARM 2 IN......... Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5615 Instruction Sheet D17083- document without notice. The information herein is believed to 07.doc...
- Page 6 RS-485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less than 750Ω...
- Page 7 Alarm Channel Configuration The AMG5615 provides 2 uni-directional alarm / contact closure inputs. Each alarm input is typically connected to a contact closure switch. Each ALARM IN+ input incorporates a 330R pull-up resistor to the internal +3V3 supply. Uni-directional Alarm Interface Connections...
- Page 8 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
