Dual System with 2x Independent Channels each of :
[Single Channel Video Transmit Unit with one Bi-directional
Data Channel and two Uni-directional Alarms for a
The AMG5525 is a DUAL rackmount system which provides two independent channels, each
designed to transmit 1 video signals plus 2 Uni-directional alarms and transmit and receive 1 data
signal over one Singlemode optical fibre.
The AMG5525 is designed to be powered using an AMG2001 standalone power supply.
The AMG5525 is designed to operate with an AMG5526 or rackmount AMG5526R dual channel video
receive unit in a point to point configuration. The R suffix in the partno. indicates a rackmount
configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Singlemode Fibre Link]
AMG5525
Instruction Manual
Page 1 of 8
AMG5525 Instruction Sheet D17212-
00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG5525
Summary of Contents for AMG AMG5525
- Page 1 The AMG5525 is designed to be powered using an AMG2001 standalone power supply. The AMG5525 is designed to operate with an AMG5526 or rackmount AMG5526R dual channel video receive unit in a point to point configuration. The R suffix in the partno. indicates a rackmount configuration.
-
Page 2: Table Of Contents
Dimensions ............................ 8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5525 Instruction Sheet D17212- document without notice. The information herein is believed to 00.doc... -
Page 3: Introduction
AMG5525 Optical Connection The AMG5525 connections are illustrated in the following example which shows an AMG5525 transmit unit together with an AMG5526R two channel standalone receive unit configured as a dual channel point to point system. -
Page 4: Connections
*See appropriate section on how to access to the data switches Alarm inputs........Contact Closure pull-up is 330R to +3V3 AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5525 Instruction Sheet D17212- document without notice. -
Page 5: Front Panel Indicators
ALARM 2 IN ........Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5525 Instruction Sheet D17212- document without notice. The information herein is believed to 00.doc... -
Page 6: Data And Alarm Channel Configuration
RS-485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 7: Data Interface Connections
Note: (A) or (B) in brackets in the above table refers to RS-485 / RS-422 data specification. Alarm Channel Configuration The AMG5525 provides 2 uni-directional alarm / contact closure inputs for each video channel. Each alarm input is typically connected to a contact closure switch. -
Page 8: Physical Information

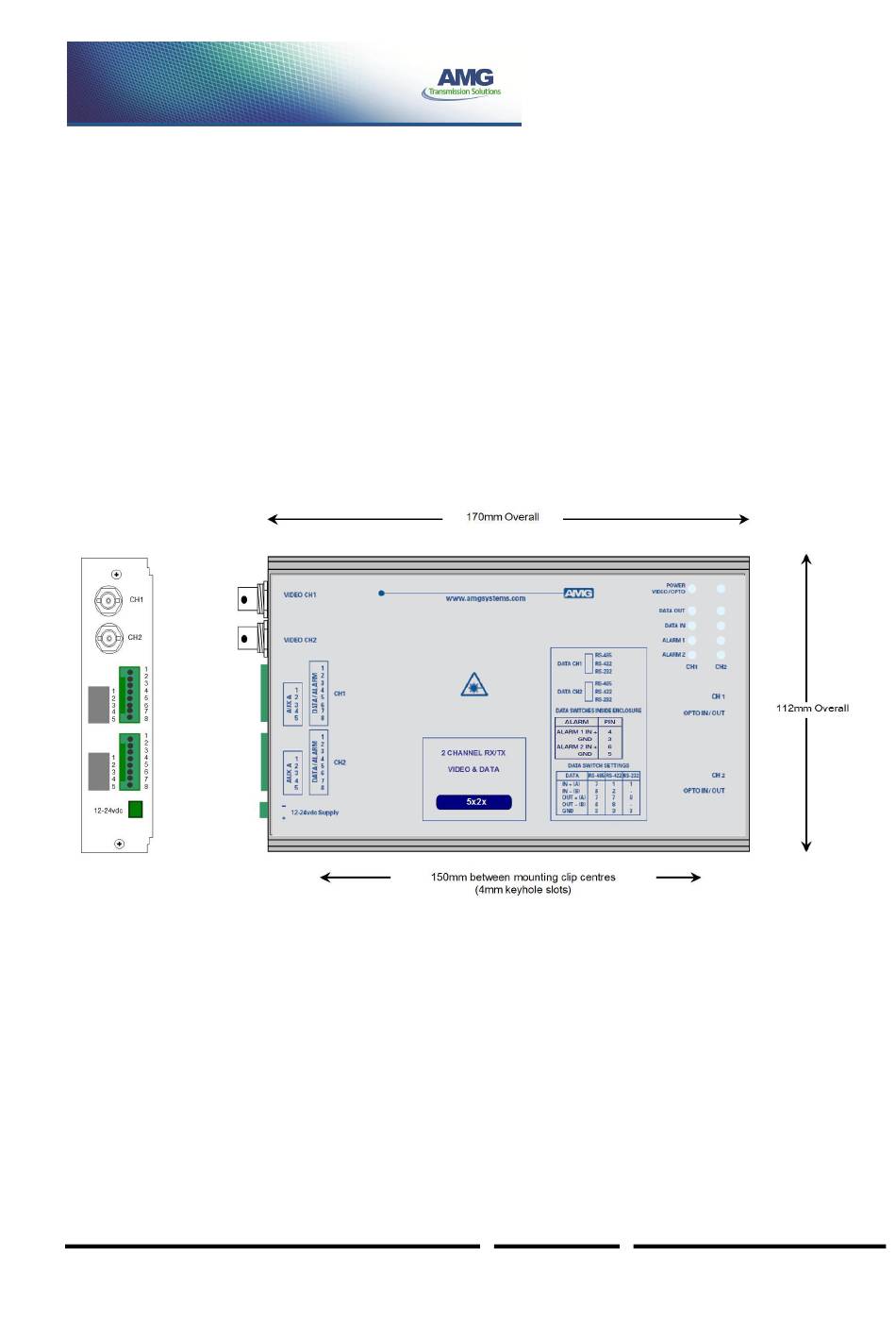

Weight ..........200grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
