Single Channel Video Transmit Unit with two Bi-directional
Data Channels and eight Bi-directional Alarms plus
Ethernet for a Multimode Fibre Link
The AMG5813R is a rackmount one channel video transmit unit designed to transmit 1 video signal
and transmit and receive 2 data signals plus 8 bi-directional alarms and also provides full duplex
100Base-T Ethernet connectivity over one Multimode optical fibre.
The AMG5813R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a
19" rack system.
The AMG5813R is designed to operate with an AMG5814 or AMG5814R video receive unit in a point
to point configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5813R
Instruction Manual
Page 1 of 8
AMG5813R Instruction Sheet D22059-
01.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG5813R
Summary of Contents for AMG AMG5813R
- Page 1 2 data signals plus 8 bi-directional alarms and also provides full duplex 100Base-T Ethernet connectivity over one Multimode optical fibre. The AMG5813R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a 19" rack system.
-
Page 2: Table Of Contents

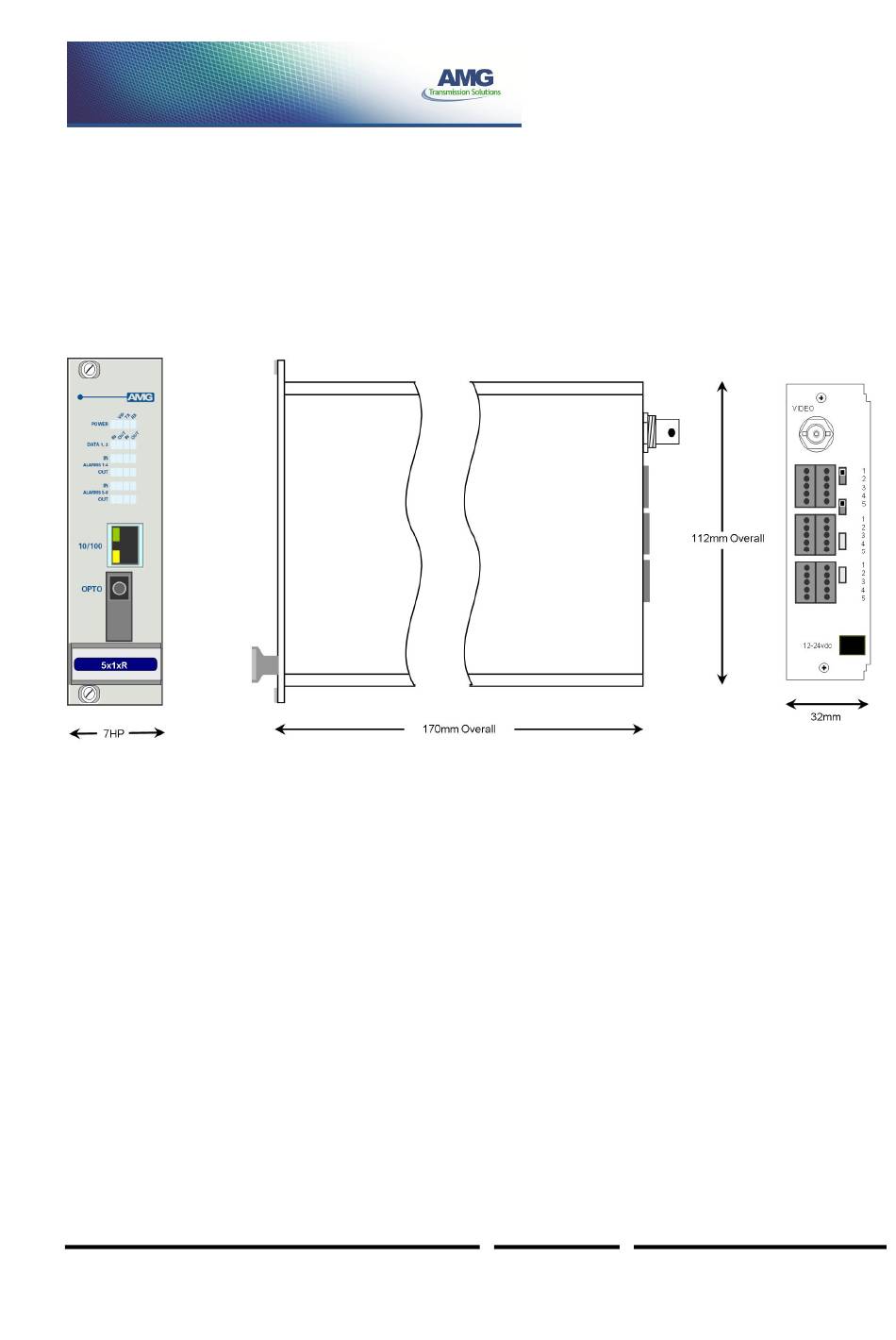

Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5813R Instruction Sheet D22059- document without notice. The information herein is believed to 01.doc... -
Page 3: Introduction
Ethernet connectivity is also provided between the two units. Optical Connection The AMG5813R connections are illustrated in the following example which shows a AMG5813R transmit unit together with an AMG5814R single channel rackmount receive unit configured as a point to point system. -
Page 4: Connections
Ethernet Data Connector ....RJ45 Interface ..........Auto-negotiation up to 100BASE-TX full duplex Ethernet Data Rate ......Maximum 100Mb/s total Ethernet traffic on fibre AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5813R Instruction Sheet D22059- document without notice. -
Page 5: Front Panel Indicators
Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5813R Instruction Sheet D22059- document without notice. The information herein is believed to 01.doc... -
Page 6: Data And Alarm Channel Configuration
RS-485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 7: Alarm Channel Configuration
RS-232 (no termination), RS-422 (120Ω) or RS-485 (120Ω). Alarm Channel Configuration The AMG5813R provides 8 bi-directional contact closure inputs / alarm outputs. Each ALARM IN input is via an internal 10kΩ series resistor with a 47kΩ pull-up resistor to the internal +3V3 supply. -
Page 8: Physical Information
There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
