AMG AMG5613A9R Instruction Manual

Single channel video transmit unit with one bi-directional data channel, one bi-directional alarm and one bidirectional audio channel for a multimode fibre link
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Single Channel Video Transmit Unit with one Bi-directional
Data Channel, one Bi-directional Alarm and one Bi-
directional Audio Channel for a Multimode Fibre Link
The AMG5613A9R is a rackmount one channel video transmit unit designed to transmit 1 video signal
and transmit & receive 1 data signal, 1 Bi-directional alarm and 1 Bi-directional audio channel over a
single Multimode optical fibre.
The AMG5613A9R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into
a 19" rack system.
The AMG5613A9R is designed to operate with an AMG5614A9 / AMG5614A9R single channel
receive unit in a point to point configuration. The R suffix in the part no. indicates a rackmount
configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5613A9R
Instruction Manual
Page 1 of 12
AMG5613A9R Instruction Sheet
D17379-00.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG5613A9R and is the answer not in the manual?

Questions and answers

Related Manuals for AMG AMG5613A9R

Summary of Contents for AMG AMG5613A9R

  • Page 1 & receive 1 data signal, 1 Bi-directional alarm and 1 Bi-directional audio channel over a single Multimode optical fibre. The AMG5613A9R is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a 19" rack system.

  • Page 2: Table Of Contents

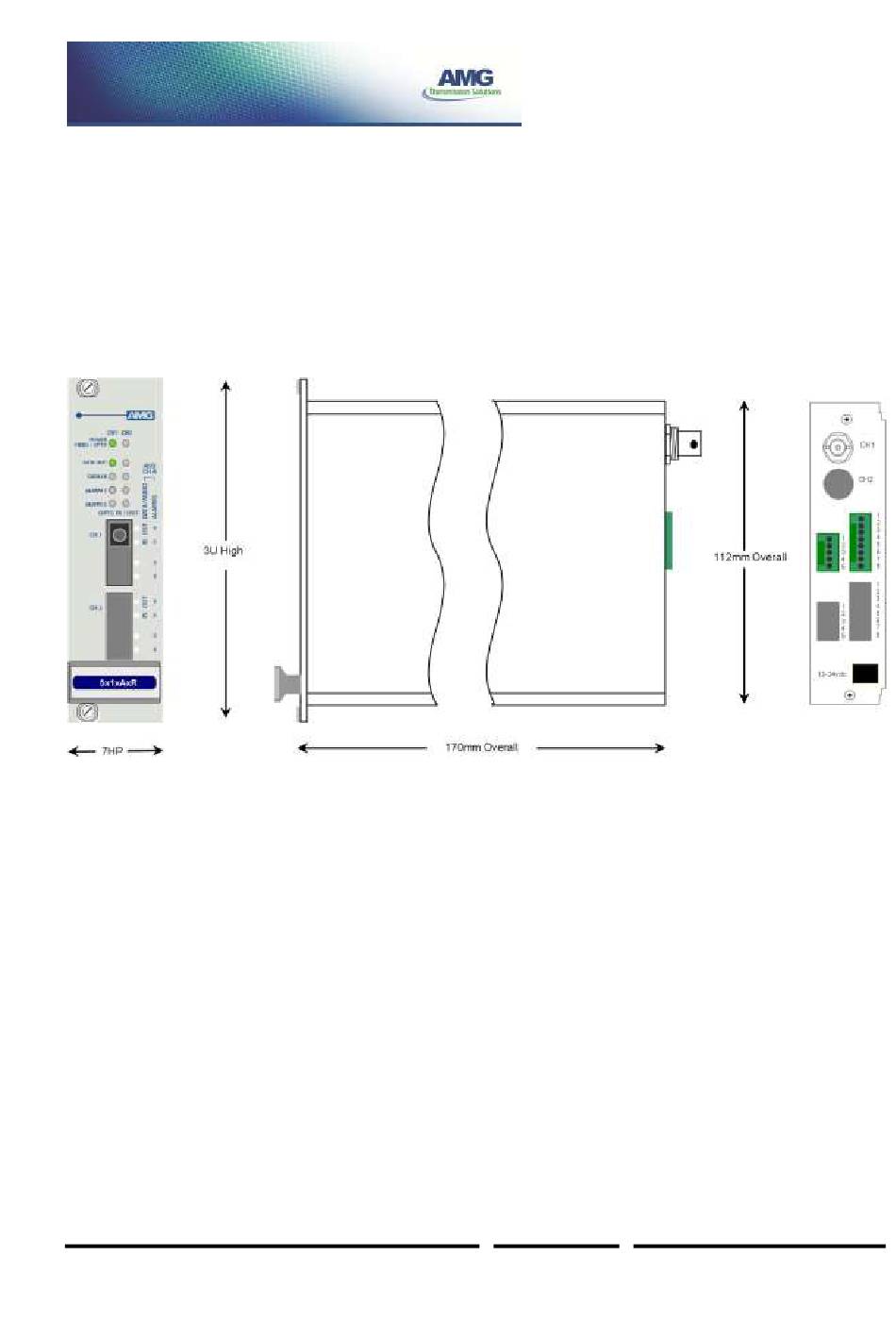

    Physical Information Dimensions ............................10 Mounting Details ..........................10 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 12 AMG5613A9R Instruction Sheet document without notice. The information herein is believed to D17379-00.doc...
