8 Channel Video Transmit Unit with Bi-directional Data
Channel and Ethernet for a Multimode Fibre Link
The AMG4683E is a standalone eight channel video transmit unit designed to transmit 8 video signals
and transmit and receive 1 data signal plus full duplex 100BaseT Ethernet connectivity over two
Multimode fibres.
The AMG4683E is designed to be powered using an AMG2003 standalone power supply.
The AMG4683E is designed to operate with AMG4684E or rackmount equivalent AMG4684ER eight
channel video receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG4683E
Instruction Manual
Page 1 of 8
AMG4683E Instruction Sheet D16758-
02.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG4683E and is the answer not in the manual?

Questions and answers

Summary of Contents for AMG AMG4683E

  • Page 1 8 Channel Video Transmit Unit with Bi-directional Data Channel and Ethernet for a Multimode Fibre Link The AMG4683E is a standalone eight channel video transmit unit designed to transmit 8 video signals and transmit and receive 1 data signal plus full duplex 100BaseT Ethernet connectivity over two Multimode fibres.
  • Page 2: Table Of Contents

    Removal / replacement from / to the Case..................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG4683E Instruction Sheet D16758- document without notice. The information herein is believed to 02.doc...
  • Page 3: Introduction

    Ethernet connectivity is also provided between the two units. Optical Connection The AMG4683E is connected as illustrated below when used with an AMG4684E 8-channel receive unit acting as a point to point system. AMG Systems Ltd. reserves the right to make changes to this...
  • Page 4: Connections

    RS485 – switch position – low (furthest from BNC connections) DATA CHANNEL B Data Channel B ........Not Present AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG4683E Instruction Sheet D16758- document without notice. The information herein is believed to 02.doc...
  • Page 5: Data And Audio Channel Configuration

    RS485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω...
  • Page 6: Front Panel Indicators

    OUT+ logic one (-V) present on OUT+ This represents the data signals being received on the optical fibre AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG4683E Instruction Sheet D16758- document without notice.
  • Page 7: Ethernet Operation

    Ethernet Operation In order for the AMG system to transmit Ethernet signals, an onboard RJ45 Ethernet interface or X16003 Ethernet interface adaptor should be fitted to both the Transmit unit and the Receive unit. The Ethernet interface can operate at either 10Mbits/s half duplex, or 100Mbit/s full duplex, and data is transmitted from one port the other port with the minimum of delay or buffering.
  • Page 8: Physical Information

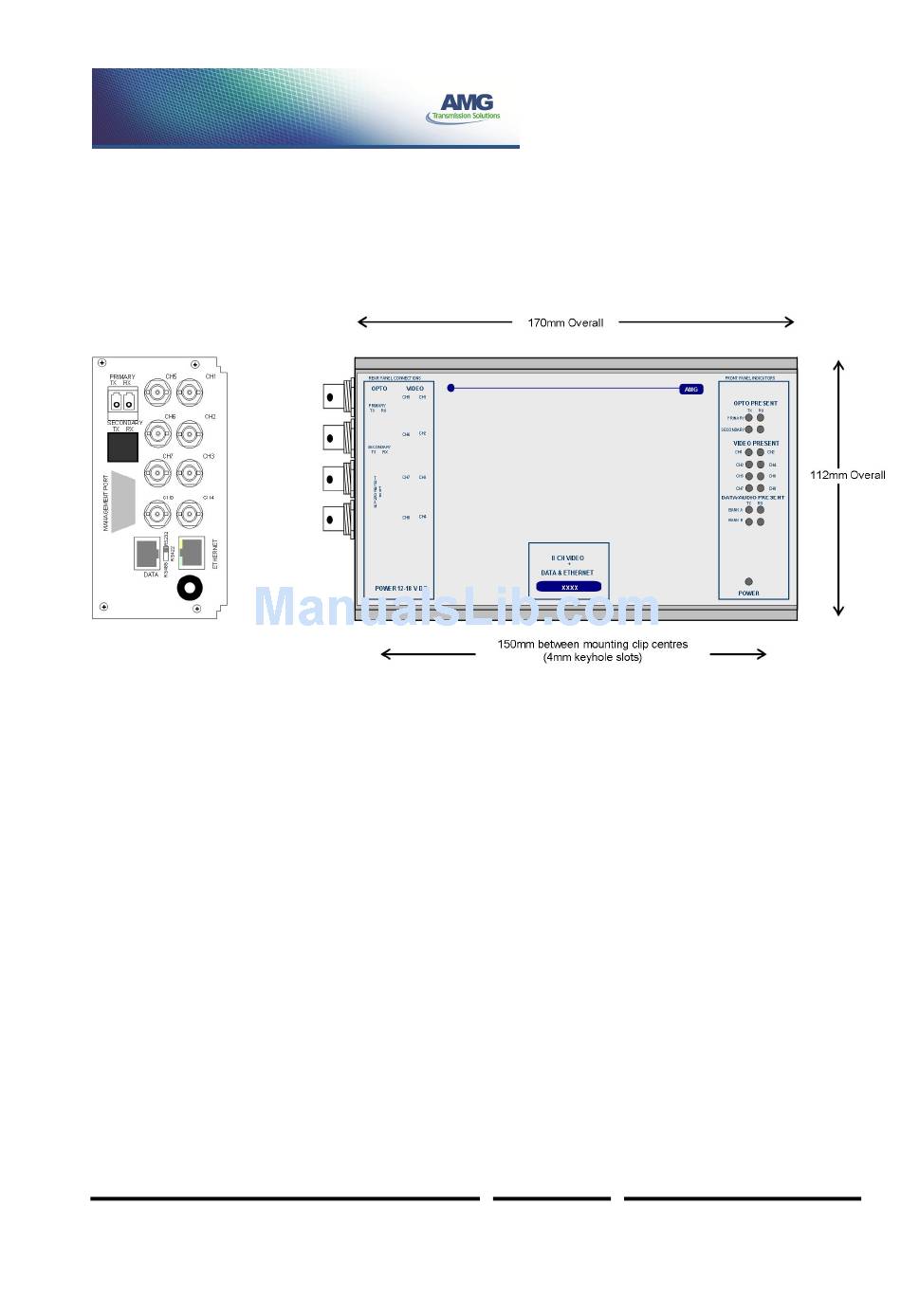

    Weight..........1000grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
