Transmit Unit with one Bi-directional Data Channel and one
Bi-directional Alarm for a Singlemode Fibre Link
The AMG5513 is a compact standalone transmit unit designed to transmit and receive 1 data signal
plus 1 Bi-directional alarm over one Singlemode optical fibre.
The AMG5513 is designed to be powered using an AMG2001 standalone power supply.
The AMG5513 is designed to operate with an AMG5514 / AMG5514R single channel or AMG5524 /
AMG5524R dual channel receive unit in a point to point configuration. The R suffix in the partno.
indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5513
Instruction Manual
Page 1 of 8
AMG5513 Instruction Sheet D17297-
00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG5513
Summary of Contents for AMG AMG5513

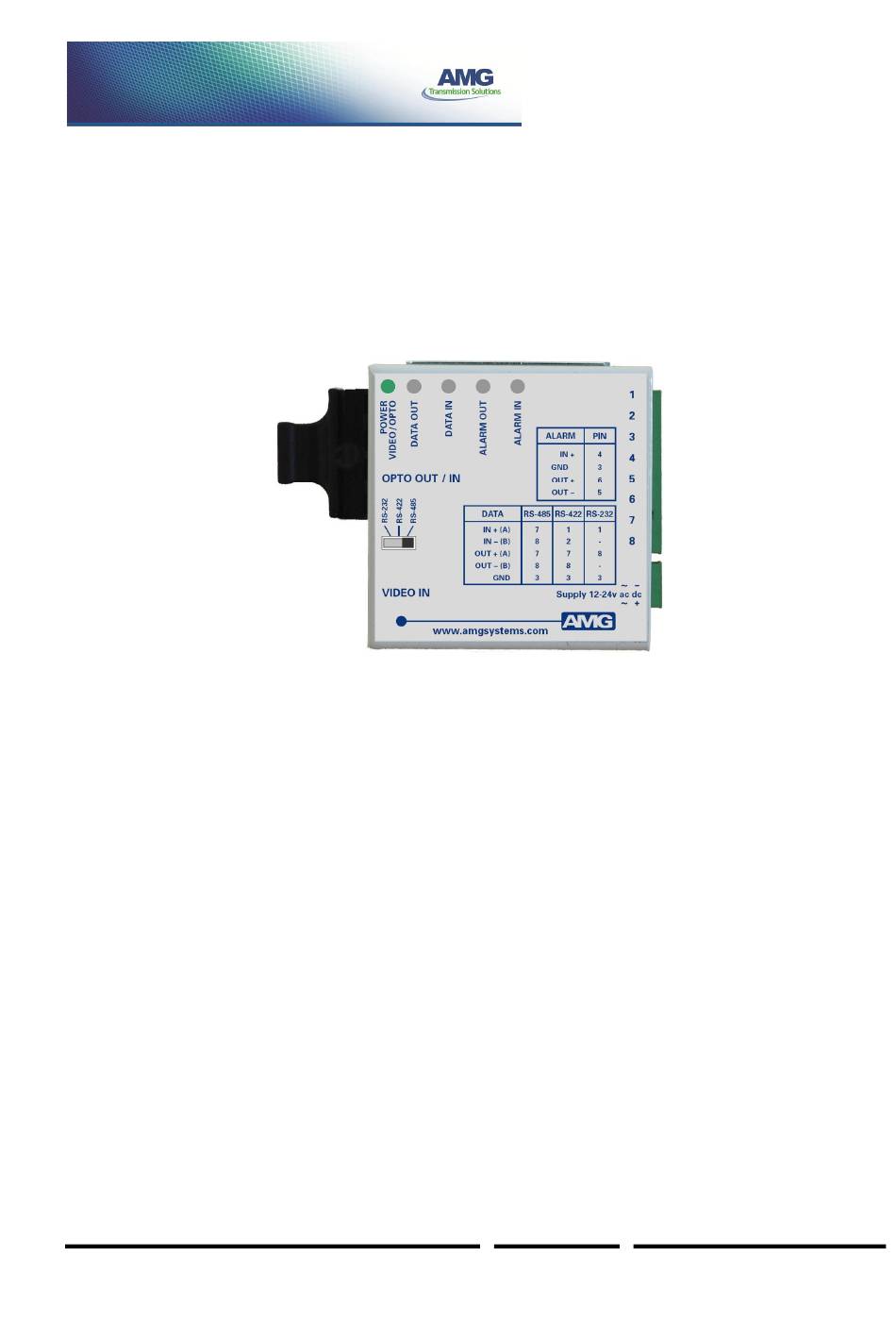

- Page 1 Transmit Unit with one Bi-directional Data Channel and one Bi-directional Alarm for a Singlemode Fibre Link The AMG5513 is a compact standalone transmit unit designed to transmit and receive 1 data signal plus 1 Bi-directional alarm over one Singlemode optical fibre.
-
Page 2: Table Of Contents
Dimensions ............................ 8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5513 Instruction Sheet D17297- document without notice. The information herein is believed to 00.doc... -
Page 3: Introduction

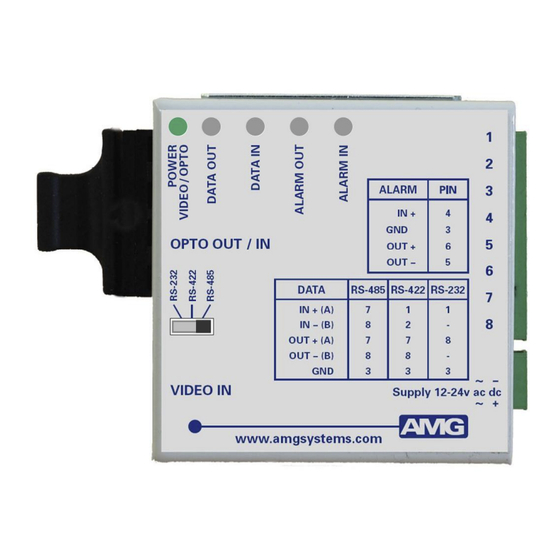

AMG5514. Optical Connection The AMG5513 connections are illustrated in the following example which shows an AMG5513 transmit unit together with an AMG5514 receive unit configured as a single channel point to point system. AMG Systems Ltd. reserves the right to make changes to this... -
Page 4: Connections
Alarm Input ........Contact Closure pull-up is 330R to +3V3 Alarm Output ........Solid-state Relay, maximum 150mA at 125Vac/dc, Ron < 6.5Ω AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5513 Instruction Sheet D17297- document without notice. -
Page 5: Front Panel Indicators
ALARM OUT ........Green Alarm ON / Contacts closed. Alarm OFF / Contacts open. AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5513 Instruction Sheet D17297- document without notice. The information herein is believed to 00.doc... -
Page 6: Data And Alarm Channel Configuration
RS-485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less than 750Ω... -
Page 7: Alarm Channel Configuration
Alarm Channel Configuration The AMG5513 provides 1 Bi-directional alarm output / contact closure input. The alarm input is typically connected to a contact closure switch. An ALARM IN+ input incorporates a 330R pull-up resistor to the internal +3V3 supply. The alarm output can receive an on/off signal from an AMG5514 and is typically used to convey contact closure status. -
Page 8: Physical Information
There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
