Transmit Unit with one Bi-directional Data Signal, one Bi-
directional Alarm, one Echelon FTT-10A Data Channel and
one Bi-directional Audio Channel for a Singlemode Fibre
The AMG5513A6B9 is a standalone transmit unit designed to transmit & receive 1 data signal, 1 Bi-
directional alarms plus 1 Echelon FTT10A data channel plus 1 Bi-directional audio channel over one
Singlemode optical fibre.
The AMG5513A6B9 is designed to be powered using an AMG2001 standalone power supply.
The AMG5513A6B9 is designed to operate with an AMG5514A6B9 / AMG5514A6B9R receive unit in
a point to point configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5513A6B9
Instruction Manual
Link
Page 1 of 12
AMG5513A6B9 Instruction Sheet
D17398-00
Advertisement
Table of Contents
Related Manuals for AMG AMG5513A6B9
Summary of Contents for AMG AMG5513A6B9
- Page 1 Bi-directional Audio Channel for a Singlemode Fibre Link The AMG5513A6B9 is a standalone transmit unit designed to transmit & receive 1 data signal, 1 Bi- directional alarms plus 1 Echelon FTT10A data channel plus 1 Bi-directional audio channel over one Singlemode optical fibre.
-
Page 2: Table Of Contents
Physical Information Dimensions ............................11 Mounting Details ..........................11 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 12 AMG5513A6B9 Instruction Sheet document without notice. The information herein is believed to D17398-00... -
Page 3: Introduction
Optical Connection The AMG5513A6B9 connections are illustrated in the following example which shows an AMG5513A6B9 transmit unit together with an AMG5514A6B9 standalone receive unit configured as a single channel point to point system. AMG Systems Ltd. reserves the right to make changes to this... -
Page 4: Connections
Alarm Input .......... Contact Closure pull-up is 330R to +3V3 Alarm Output ........Solid-state Relay, maximum 150mA at 125Vac/dc, Ron < 6.5Ω AMG Systems Ltd. reserves the right to make changes to this Page 4 of 12 AMG5513A6B9 Instruction Sheet document without notice. -
Page 5: Audio Connections
No. of Echelon FTT-10A Data Channels Connectors .......... Removable 5-pin, 2.5mm, Spring Terminal Connector Partno........ Phoenix 1881354 AMG Systems Ltd. reserves the right to make changes to this Page 5 of 12 AMG5513A6B9 Instruction Sheet document without notice. The information herein is believed to D17398-00 be accurate. -
Page 6: Front Panel Indicators
Data channel present but not transmitting Data channel transmitting Data channel not present or no connection AMG Systems Ltd. reserves the right to make changes to this Page 6 of 12 AMG5513A6B9 Instruction Sheet document without notice. The information herein is believed to D17398-00 be accurate. -
Page 7: Audio Leds
> 0dBm (overload at +6dBm) audio not present or < -40dBm This represents the audio signals being received from the optical fibre. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 12 AMG5513A6B9 Instruction Sheet document without notice. -
Page 8: Data And Alarm Channel Configuration
Data and Alarm Channel Configuration The AMG5513A6B9 transmit unit sends and receives data to/from an AMG5514A6B9 or rackmount equivalent AMG5514A6B9R receive unit. The physical data interface RS-485, RS-422 or RS-232 is selectable by the user with the slide switch mounted on the main PCB inside the enclosure. -
Page 9: Data Interface Connections
RS-485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 10: Ftt10A Interface Connections
OUT - OUT + OUT + IN + IN - AMG Systems Ltd. reserves the right to make changes to this Page 10 of 12 AMG5513A6B9 Instruction Sheet document without notice. The information herein is believed to D17398-00 be accurate. No responsibility is assumed by AMG for its use. -
Page 11: Audio Channel Configuration

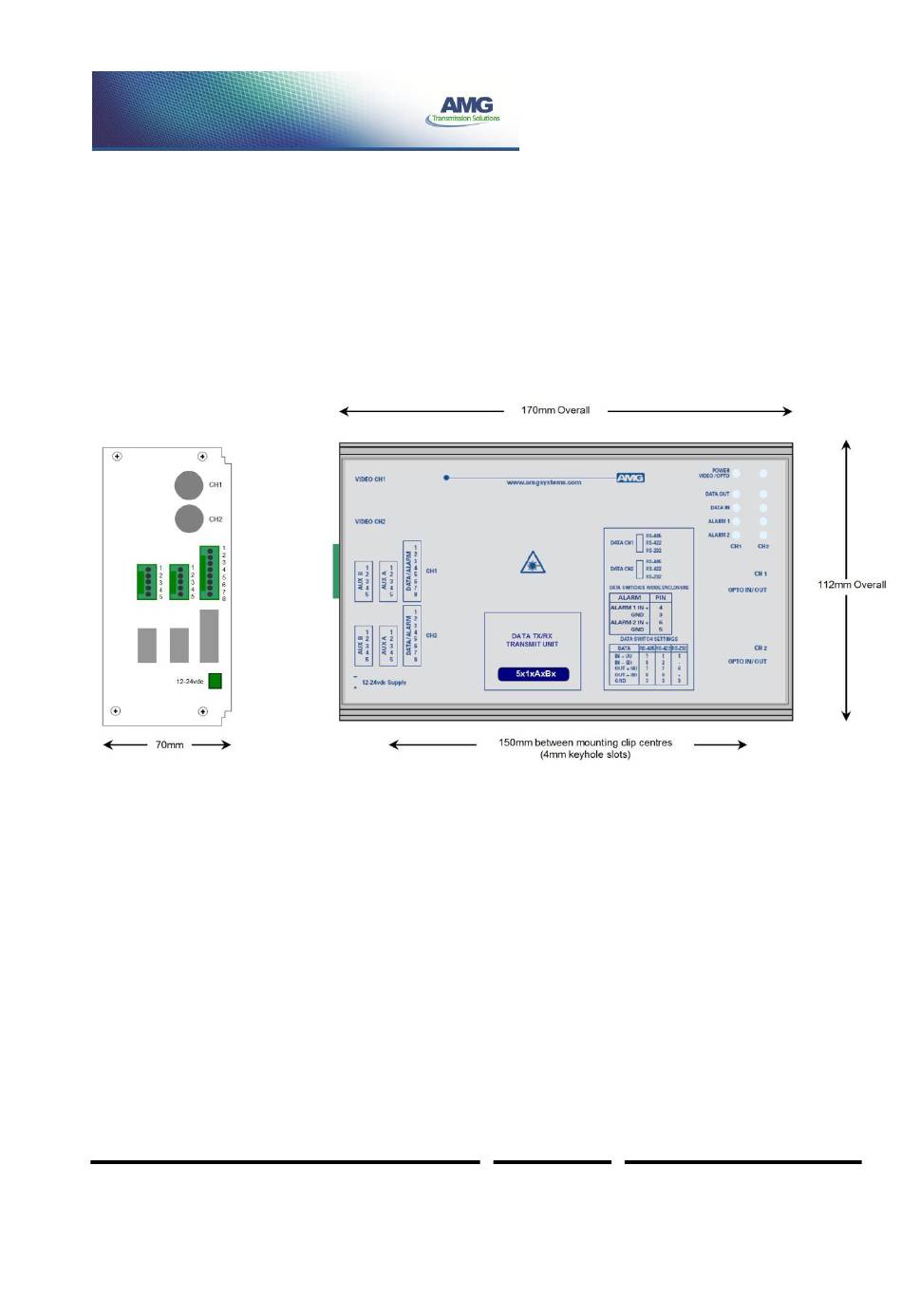

Weight ..........750grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position. - Page 12 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
