100BASE-TX Ethernet Media Converter Transmit Unit for a
The AMG5901 is a standalone Ethernet Media Converter transmit unit designed to provide 100BASE-
TX full duplex Ethernet connectivity over one singlemode fibre.
The AMG5901 is designed to be powered using an AMG2001 standalone power supply.
The AMG5901 is designed to operate with an AMG5902 standalone or AMG5902R rackmount
Ethernet data receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Singlemode Fibre Link
AMG5901 Instruction
Manual
Page 1 of 8
AMG5901 Instruction Sheet D22104-
00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG5901
Summary of Contents for AMG AMG5901
- Page 1 100BASE-TX Ethernet Media Converter Transmit Unit for a Singlemode Fibre Link The AMG5901 is a standalone Ethernet Media Converter transmit unit designed to provide 100BASE- TX full duplex Ethernet connectivity over one singlemode fibre. The AMG5901 is designed to be powered using an AMG2001 standalone power supply.
- Page 2 Dimensions ............................7 Mounting Details ..........................7 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5901 Instruction Sheet D22104- document without notice. The information herein is believed to 00.doc...
- Page 3 It also receives Ethernet data transmitted from the AMG5902R. Optical Connection The AMG5901 connections are illustrated in the following example which shows an AMG5901R rackmount Media Converter transmit unit together with an AMG5902R rackmount Media Converter receive unit configured as a point to point system.
- Page 4 Ethernet Data Connector ....RJ45 Interface ..........Auto MDI/MDIX 100BASE-TX Ethernet Data Rate ......Maximum 100Mb/s full duplex AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5901 Instruction Sheet D22104- document without notice. The information herein is believed to 00.doc...
- Page 5 Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5901 Instruction Sheet D22104- document without notice. The information herein is believed to 00.doc...
- Page 6 Two LED indicators are provided adjacent to the RJ-45 port: Green indicates Link / Data transfer and Yellow when in half-duplex mode. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG5901 Instruction Sheet D22104- document without notice.

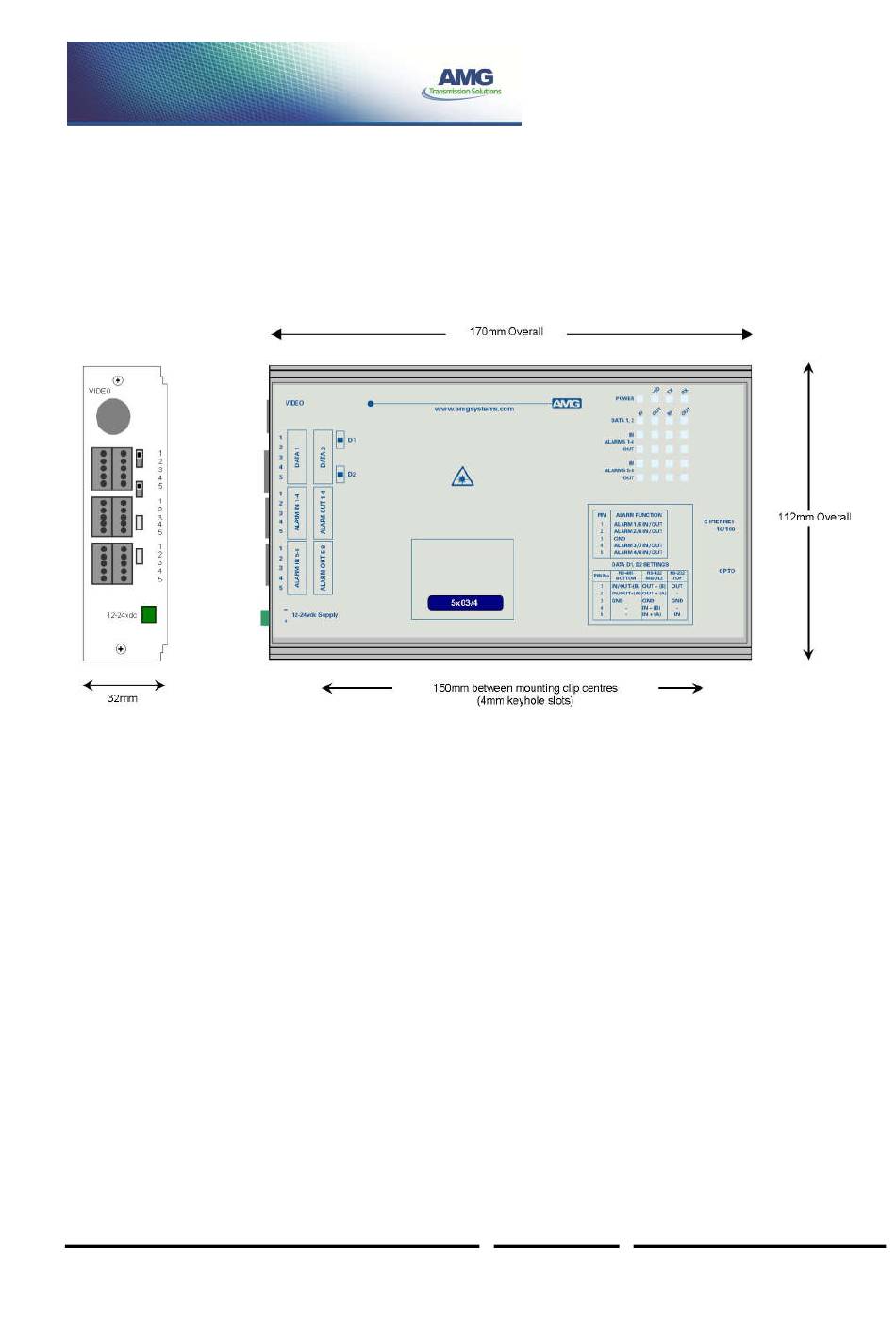

- Page 7 Weight ..........1000grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
- Page 8 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 8 of 8 AMG5901 Instruction Sheet D22104- document without notice. The information herein is believed to 00.doc be accurate. No responsibility is assumed by AMG for its use.
