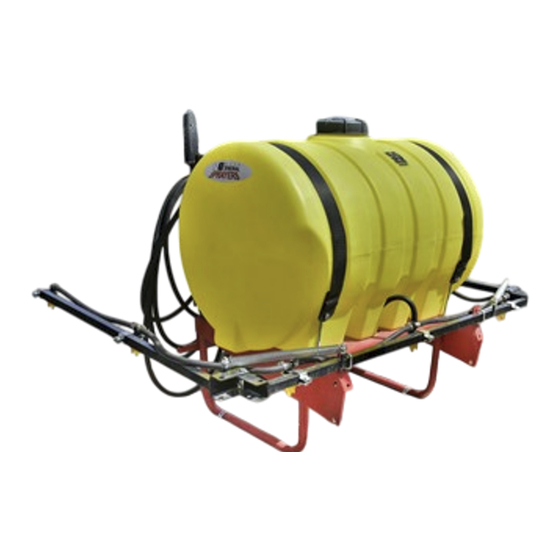

Fimco LG-55-3PT-12V Owner's Manual

Technical Specifications

55 Gal. Corrosion-Resistant Polyethylene Tank

7-Nozzle Boom, 140" Spray Coverage

12 Volt, 2.4 GPM, 60 psi Diaphragm Pump
Information About the Sprayer
In this pump system, solution is drawn from the tank &
forced to a planned source, such as boom nozzles.
The 'directo-valve' is the on/off control which allows the
operator to manually control the solution going to the
boom.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.

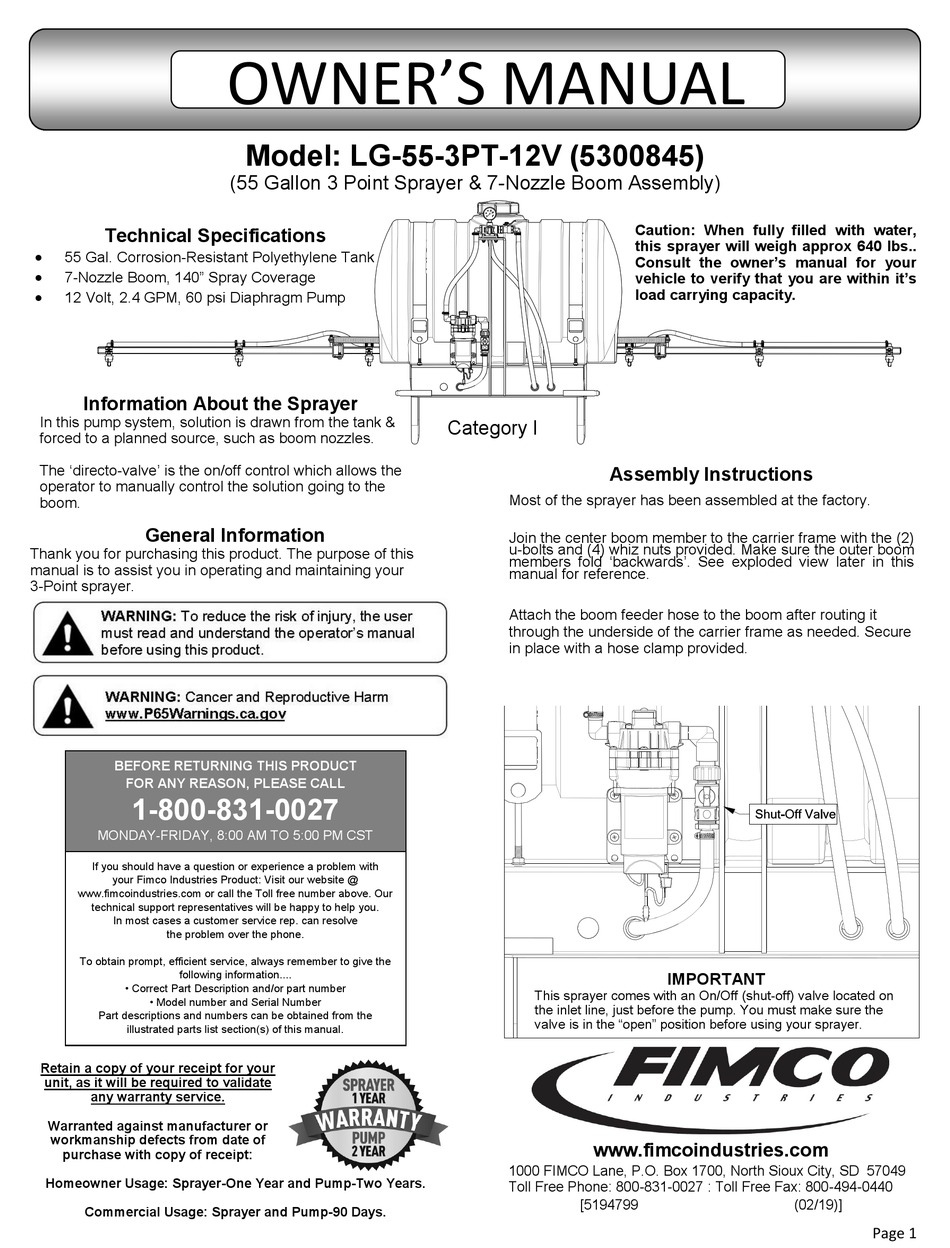

OWNER'S MANUAL
Model: LG-55-3PT-12V (5300845)
(55 Gallon 3 Point Sprayer & 7-Nozzle Boom Assembly)
Category I
Assembly Instructions
Most of the sprayer has been assembled at the factory.
Join the center boom member to the carrier frame with the (2)
u-bolts and (4) whiz nuts provided. Make sure the outer boom
members fold 'backwards'. See exploded view later in this
manual for reference.
Attach the boom feeder hose to the boom after routing it
through the underside of the carrier frame as needed. Secure
in place with a hose clamp provided.
This sprayer comes with an On/Off (shut-off) valve located on
the inlet line, just before the pump. You must make sure the
valve is in the "open" position before using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194799
Caution: When fully filled with water,
this sprayer will weigh approx 640 lbs..
Consult the owner's manual for your
vehicle to verify that you are within it's
load carrying capacity.
IMPORTANT
(02/19)]
Page 1
