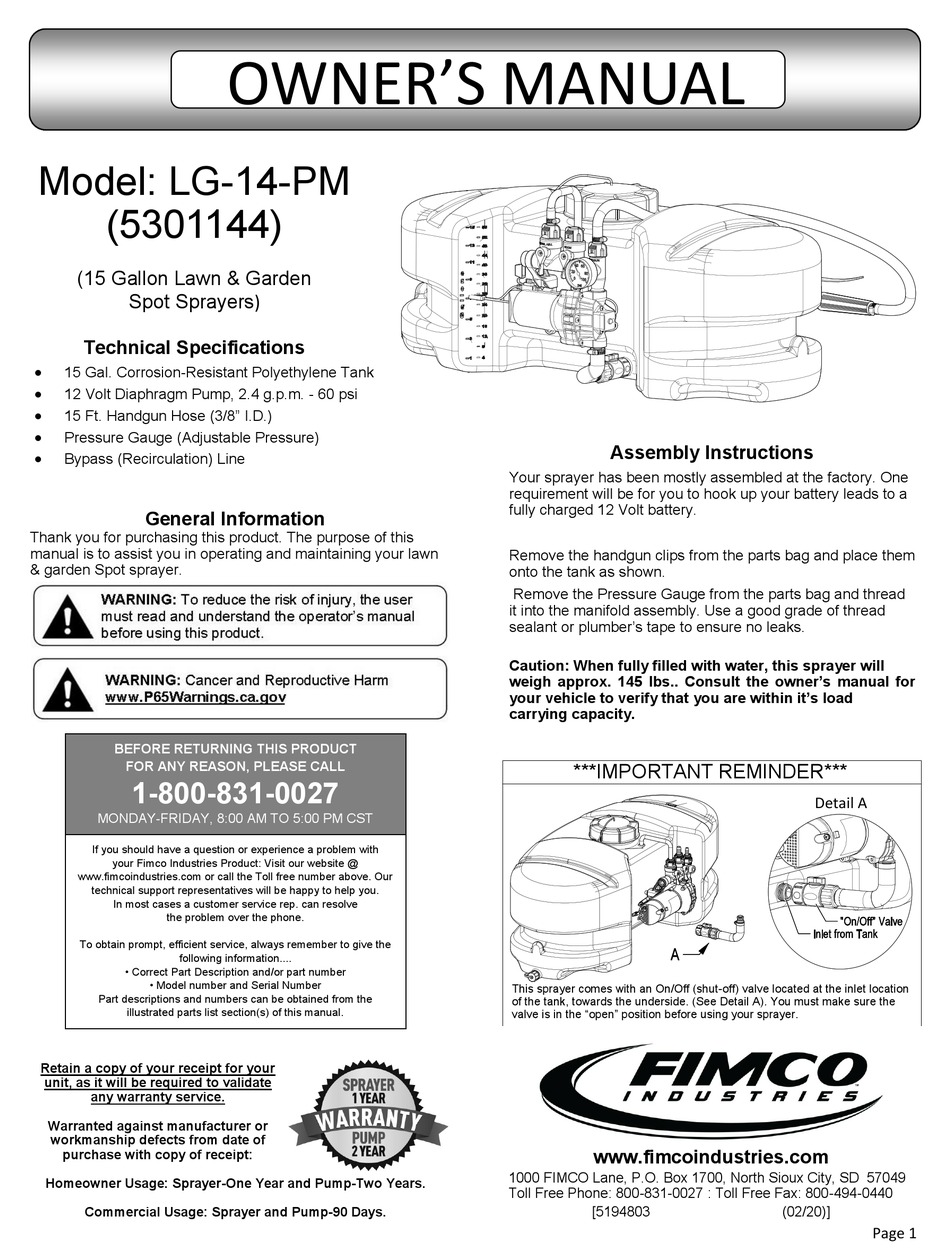

Model: LG-14-PM
(5301144)
(15 Gallon Lawn & Garden
Spot Sprayers)
Technical Specifications
15 Gal. Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 2.4 g.p.m. - 60 psi
15 Ft. Handgun Hose (3/8" I.D.)
Pressure Gauge (Adjustable Pressure)
Bypass (Recirculation) Line
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden Spot sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Assembly Instructions
Your sprayer has been mostly assembled at the factory. One
requirement will be for you to hook up your battery leads to a
fully charged 12 Volt battery.
Remove the handgun clips from the parts bag and place them
onto the tank as shown.
Remove the Pressure Gauge from the parts bag and thread
it into the manifold assembly. Use a good grade of thread
sealant or plumber's tape to ensure no leaks.
Caution: When fully filled with water, this sprayer will
weigh approx. 145 lbs.. Consult the owner's manual for
your vehicle to verify that you are within it's load
carrying capacity.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve located at the inlet location
of the tank, towards the underside. (See Detail A). You must make sure the
valve is in the "open" position before using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194803
Detail A
(02/20)]
Page 1
Advertisement
Troubleshooting
Related Manuals for Fimco LG-14-PM
Summary of Contents for Fimco LG-14-PM
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5194803 (02/20)] Commercial Usage: Sprayer and Pump-90 Days.
- Page 2 Drain and then refill half full, add the recommended amount of a good quality tank cleaner, such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon). Turn pump on and circulate through system for 15 minutes and then spray out through handgun nozzle.
-
Page 3: Troubleshooting
Winter Storage Prepare the sprayer for end-of-season storage by running RV antifreeze through the system. This will keep internal parts lubricated, protect against corrosion and keep the unit from freezing. Note: RV antifreeze is non-toxic and biodegradable and generally safer for the environment than automotive antifreeze. -
Page 4: Troubleshooting The Pump
3/8” Hose Barb Port Kit Fitting #5168836 DON’T Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene ... - Page 5 Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad.
-
Page 6: Exploded View Parts List
Exploded View/Parts List: LG-14-PM (5301144) Manifold Detail Next Page Intake Detail Next Page Page 6... - Page 7 Intake Assembly 5281145 Manifold Assembly 5281536 This sprayer comes with an On/Off (shut-off) valve located at the inlet location of the tank, towards the underside. You must make sure the valve is in the “open” position before using your sprayer. Notes: Page 7...
-
Page 8: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
