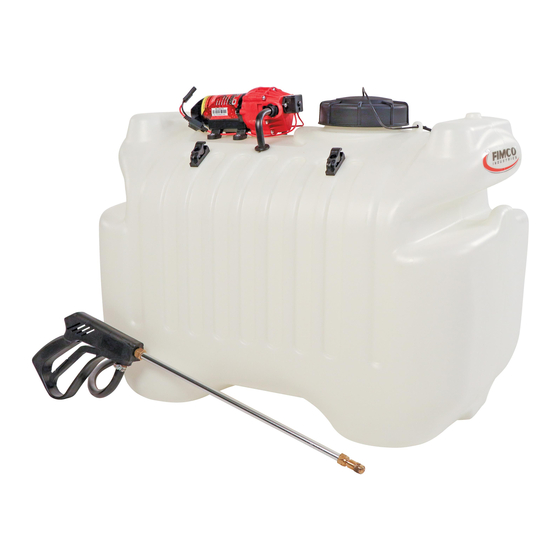

Model:
LG-40-DLX
(5302186)
(40 Gallon Deluxe Lawn & Garden
Spot Sprayer)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden spot sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Technical Specifications
40 Gal. Corrosion-Resistant Polyethylene Tank
12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI
15 Ft. Handgun Hose (3/8" I.D.)
25 Ft. max. vertical throw, 40 Ft. max. horizontal throw
Assembly Instructions
Your sprayer has been mostly assembled at the factory. One
requirement will be for you to hook up your battery leads to a
fully charged 12 Volt battery. The red wire must be connected
to the "hot" lead and the black wire should be connected to
the ground.
Remove the handgun clips from the parts bag and place them
onto the tank, as shown on page 5.
CAUTION: When fully filled with water, this sprayer will
weight approximately 365 Lbs. Always check the vehicle
load rating before using this sprayer. Do not exceed the
recommended rating.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5194821
(03/20)]
Page 1
Advertisement
Troubleshooting
Related Manuals for Fimco LG-40-DLX
Summary of Contents for Fimco LG-40-DLX
- Page 1 Warranted against manufacturer or workmanship defects from date of www.fimcoindustries.com purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Homeowner Usage: Sprayer-One Year and Pump-Two Years. Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 [5194821 (03/20)] Commercial Usage: Sprayer and Pump-90 Days.
-
Page 2: Operation
Drain and then refill half full, add the recommended amount of a application is attempted. This will also give you the opportunity good quality tank cleaner, such as FIMCO Tank Neutralizer and to familiarize yourself with the operation of the sprayer, without Cleaner. -
Page 3: Troubleshooting The Pump
3/8” Hose Barb Port Kit Fitting #5168836 DON’T Use to pump bleach. Clean and rinse your pump after each use with Fimco Tank Use to pump petroleum products such as diesel fuel, Neutralizer gasoline or kerosene ... -
Page 4: Troubleshooting
Checking the Pressure Switch If your motor is not running and you’ve checked the following: for loose wiring connections, fuse, the switch on the lead wire was “ON” and made sure you were connected to a fully charged battery and everything is fine, but the motor won’t run, then it’s time to check to see if the pressure switch is bad. - Page 5 Exploded View & Parts List LG-40-DLX (5302186) Page 5...
-
Page 6: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Ind. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
