Fimco LG-3025 Assembly And Operation Instructions Manual

12 VOLT - 25 GALLON LAWN & GARDEN SPRAYER FOR ATV MOUNTING
GENERAL INFORMATION
The purpose of this manual is to assist you in operating and
maintaining your lawn and garden sprayer. Please read it
carefully as it furnishes information which will help you
achieve years of dependable trouble free operation.
WARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement
parts and service. To obtain prompt, efficient service, always
remember to give the following information:
1. Correct part description and part number.
2. Model Number of your sprayer.
3. Serial Number of your sprayer.
Part description and part numbers can be obtained from the
illustrated parts list section of this manual.
Whenever you need parts or repair service, contact your
distributor / dealer first. For warranty work always take your
original sales slip, or other evidence of purchase date, to your
distributor / dealer.
TECHNICAL SPECIFICATIONS
• Corrosion Resistant Polyethylene Tank.
• 12 Volt Diaphragm Pump - Demand Switch.
• Pressure Gauge-Adjustable Pressure Range.
• Handgun w/ Adjustable Nozzle
• 15 Foot Handgun Hose.
• 30 Ft. Spray Coverage
• Corrosion Resistant Nozzles

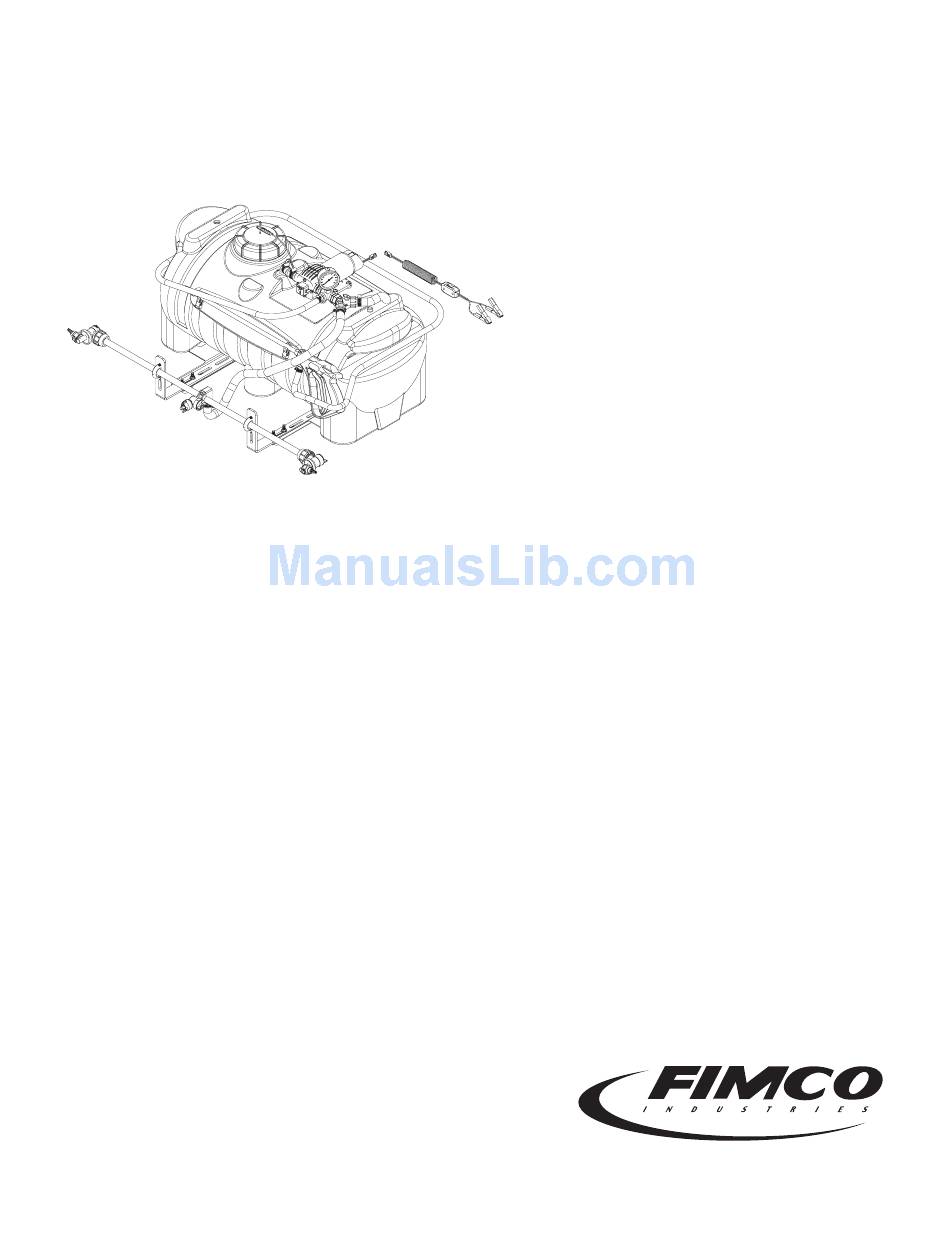

MODEL LG-3025
(INCLUDES BOOMLESS NOZZLES)
ASSEMBLY / OPERATION INSTRUCTIONS / PARTS
5301267
CAUTION: Always check the vehicle load rating before using
this sprayer. The loaded weight of the sprayer and boom
assembly is about 290 lbs. when the tank is full. Care must be
taken not to tip the vehicle over backwards, especially when
starting or accelerating.
This sprayer is partially assembled at the factory. Assembly
may be completed by following these steps.
1. Attach the tank to the brackets as shown in the ex-
ploded view.
2. Place the sprayer onto the carrier rack of the ATV.
Use the u-bolts and hardware to secure the tank
mount to the rack.
3. Connect the boom mounting brackets to the tank
mounting brackets with hardware provided as shown.
4. Affix the boom to the boom mounting brackets with u-
bolts (Item 7) & whiz locknuts (Item1). Make sure the u-
bolts are positioned within the grooves of the grommets
on the boom tube.
Note: The purpose of these grommets is to prevent
metal-to-metal contact between the u-bolts, boom
tube, & boom mounting bracket.
The grommets will compress as you tighten the whiz nuts
on the u-bolts. Tighten just so that the boom tube will NOT
rotate within the grommets. Alternate the tightening of the
locknuts to provide even pressure on the grommet.
DO NOT over-tighten the whiz locknuts, as this may
cause the boom tube to flatten slightly.
5. Connect the wiring from the pump to the 12 volt power
source of the vehicle. The red wire of the two wire set must
be connected to the positive post on the battery or the
"Hot" connection on a switch or to the ammeter. The
brown wire may be grounded or connected to the nega-
tive battery post.
W W W . F I M C O I N D U S T R I E S . C O M
1000 FIMCO LANE • P.O. BOX 1700 • NO. SIOUX CITY, SD 57049
TOLL FREE: 800-831-0027 • TOLL FREE FAX: 800-494-0440
Form No. 5004577
ASSEMBLY
(742 12/05) Printed In U.S.A.
Page 1
