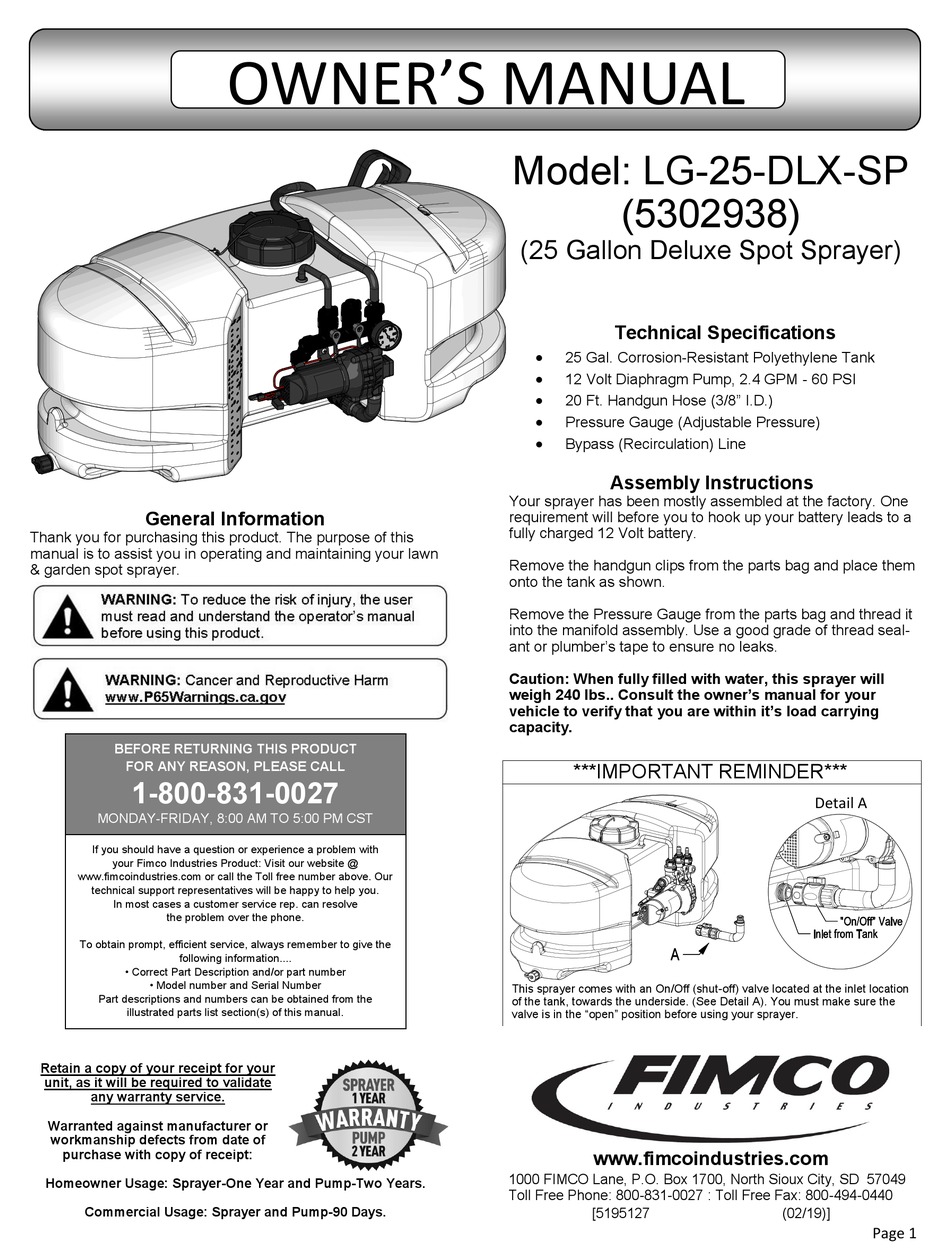

Fimco LG-25-DLX-SP Owner's Manual

General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden spot sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Model: LG-25-DLX-SP
(5302938)
(25 Gallon Deluxe Spot Sprayer)
Technical Specifications

25 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 2.4 GPM - 60 PSI

20 Ft. Handgun Hose (3/8" I.D.)

Pressure Gauge (Adjustable Pressure)

Bypass (Recirculation) Line
Assembly Instructions
Your sprayer has been mostly assembled at the factory. One
requirement will before you to hook up your battery leads to a
fully charged 12 Volt battery.
Remove the handgun clips from the parts bag and place them
onto the tank as shown.
Remove the Pressure Gauge from the parts bag and thread it
into the manifold assembly. Use a good grade of thread seal-
ant or plumber's tape to ensure no leaks.
Caution: When fully filled with water, this sprayer will
weigh 240 lbs.. Consult the owner's manual for your
vehicle to verify that you are within it's load carrying
capacity.
***IMPORTANT REMINDER***
This sprayer comes with an On/Off (shut-off) valve located at the inlet location
of the tank, towards the underside. (See Detail A). You must make sure the
valve is in the "open" position before using your sprayer.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195127
Detail A
(02/19)]
Page 1
