EVAL-M1-05-84D User Manual
iMOTION™ Modular Application Design Kit
Main features

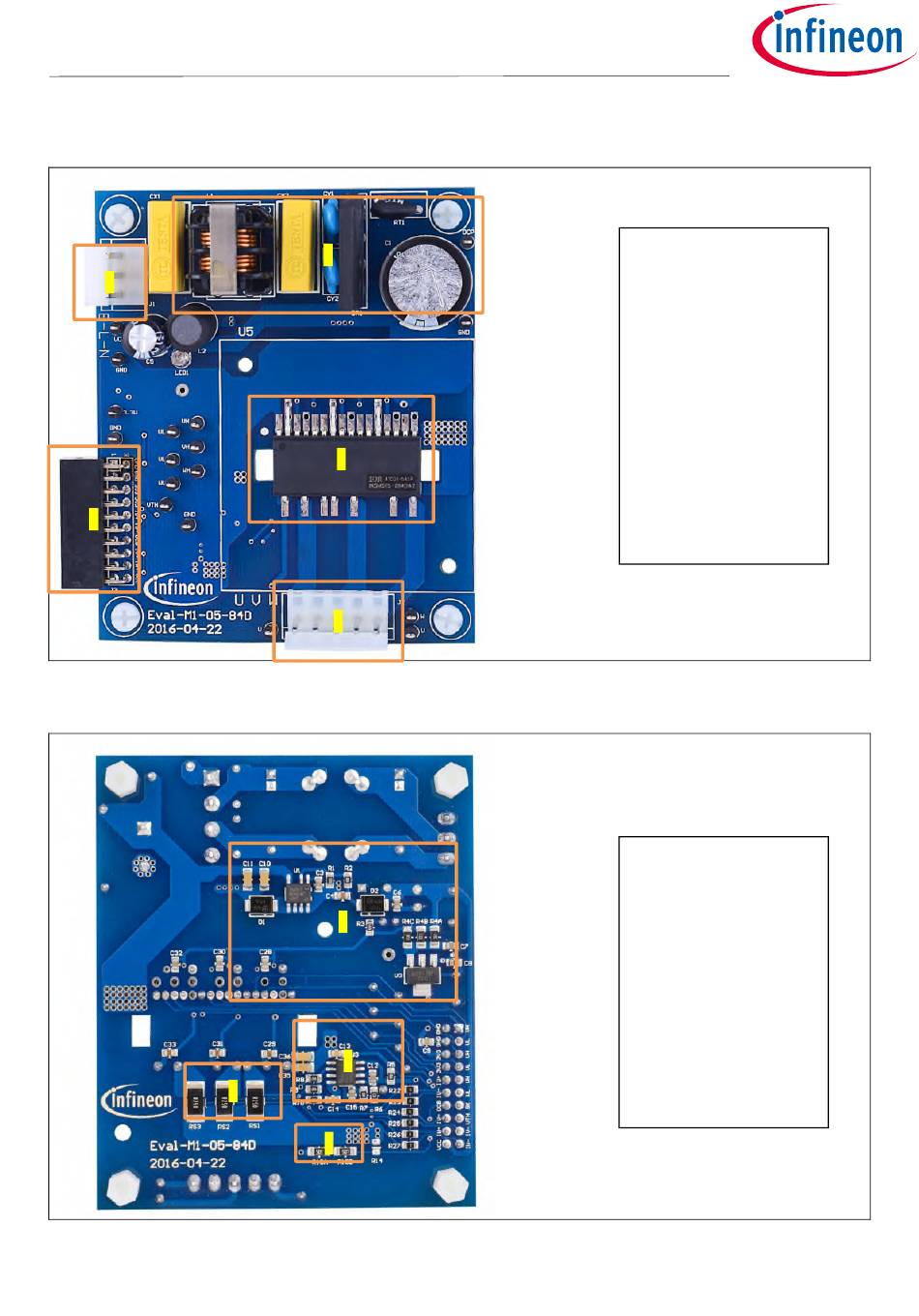

Figure 3 and Figure 4 hint out the functional groups of the EVAL-M1-05-84D evaluation board.
4
3
Figure 3 Functional groups of the EVAL-M1-05-84D evaluation board's top side
Figure 4 Functional groups of the EVAL-M1-05-84D evaluation board's bottom side
User Manual
5
1
2
6
7
8
9
9
1. µIPM™ -DIP
module
2. Motor phase
connector (J2)
3. Interface 20 pin
connector for
control board
(J3)
4. AC line input
connector (J1)
5. EMI filter and
rectifier group
6. On board power
supply for 15 V
and 3.3 V
generation
7. Over current
comparator
8. Shunt resistors
9. Voltage divider
for DC bus
voltage sensing
