Mocka Eclipse Assembly Instructions Manual page 7

Eclipse
Entertainment Unit
11
x2
Tighten the
screws 90%..
N
N
M

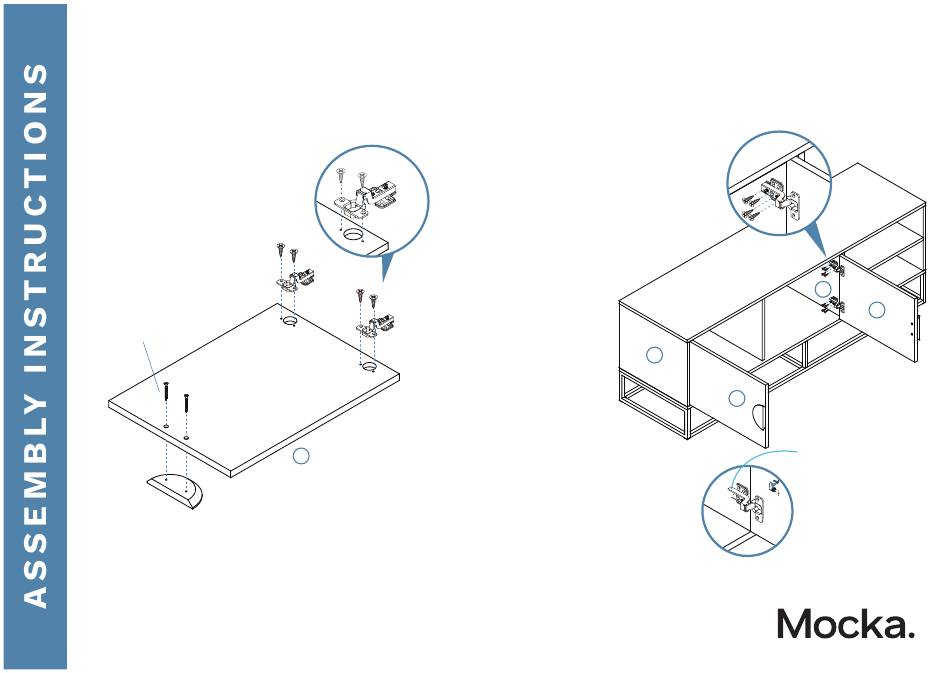

Attach 2x hinges (G) to panel [15] using 4x screws (F),
and attach 1x handle (M) to panel [15] and secure with
2x screw (N). Tighten with a screwdriver.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
F
F
G
F F
G
F F
G
15 3
12
3
15 3
Attach hinges on panels [15] to panels [3] and [5] and secure
with 16x screws (F). Tighten with a screwdriver.
Ensure the doors open and close easily.
F
F
5
15 3
F
NOTE: If the doors are
uneven or there is a gap
in the middle, loosen or
tighten the screw on the
door hinge until they are
sitting flush.
