H3C VG 10-10/10-11 Voice Gateway
User Manual
Hangzhou Huawei-3Com Technology Co., Ltd.
http://www.huawei-3com.com
Manual Version: T2-08014J-20060523-C-1.00
Product Version: BCM 1.06-0007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VG 10-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for H3C VG 10-10

Summary of Contents for H3C VG 10-10

  • Page 1 H3C VG 10-10/10-11 Voice Gateway User Manual Hangzhou Huawei-3Com Technology Co., Ltd. http://www.huawei-3com.com Manual Version: T2-08014J-20060523-C-1.00 Product Version: BCM 1.06-0007...
  • Page 2 All Rights Reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou Huawei-3Com Technology Co., Ltd. Trademarks H3C, Aolynk, , IRF, H3Care, , Neocean, , TOP G, SecEngine, SecPath, COMWARE, VVG, V2G, VnG, PSPT, NetPilot, and XGbus are trademarks of Hangzhou Huawei-3Com Technology Co., Ltd.
  • Page 3 About This Manual Related Documentation In addition to this manual, each H3C VG 10-10/10-11 Voice Gateway documentation set includes the following: Manual Description H3C VG 10-10/10-11 Voice Gateway It briefly introduces the users the device Quick Start installation and basic configurations.
  • Page 4 I. Command conventions Convention Description Boldface The keywords of a command line are in Boldface. italic Command arguments are in italic. Items (keywords or arguments) in square brackets [ ] are optional. Alternative items are grouped in braces and separated by { x | y | ...

  • Page 5: Table Of Contents

    User Manual H3C VG 10-10/10-11 Voice Gateway Table of Contents Table of Contents Chapter 1 Product Overview ......................1-1 1.1 Introduction ........................1-1 1.1.1 About VoIP ......................1-1 1.1.2 About the Product ....................1-1 1.2 Product Features ....................... 1-2 1.2.1 Two IP Configuration Modes................... 1-2 1.2.2 Various Services .....................
  • Page 6 4.5.1 Network Status Query ................... 4-18 4.5.2 Hardware Information Query................. 4-20 4.5.3 Version Information Query ..................4-20 Chapter 5 Configuration Example ....................5-1 5.1 VG 10-10/10-11 Configuration Example................5-1 5.1.1 GK Client Application ....................5-1 5.1.2 PSTN Application ....................5-2 5.1.3 Fax Application......................5-4 Chapter 6 Appendix........................

  • Page 7: Chapter 1 Product Overview

    Furthermore, it provides multiple coding/decoding modes and supports DHCP client function. VG 10-10 provides one PHONE port and two Ethernet ports (WAN port and LAN port). The PHONE port is used to connect ordinary analog phone sets and fax machines. The Ethernet ports operate in non-forwarding mode and provide functions similar to hubs by using switching chips.

  • Page 8: Product Features

    PSTN phones. 1.2.4 Interoperability VG 10-10/10-11 supports standard H.323 protocol. It is interoperable with other relevant products and is suitable for enterprise-level VoIP solutions. 1.2.5 Stable System High-quality components and seriously tested system software ensure the stable operation of the VG 10-10/10-11, thus providing better service for users.

  • Page 9: Hardware Features

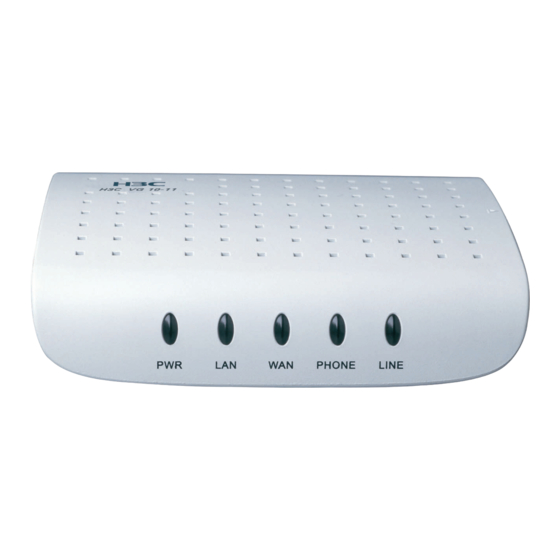

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 1 Product Overview 1.3 Hardware Features 1.3.1 Appearance Figure 1-1 VG 10-10 front view Figure 1-2 VG 10-10 rear view Figure 1-3 VG 10-11 front view...

  • Page 10: Led

    Chapter 1 Product Overview Figure 1-4 VG 10-11 rear view Figure 1-5 Mounting set 1.3.2 LED VG 10-10 has five LEDs on the front panel, as shown in the following figure. (1) Power LED (2) LAN LED (3) WAN LED...
  • Page 11 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 1 Product Overview Table 1-1 LED description Description Power LED Steady ON means the power is being supplied. OFF means the power is not being supplied. LAN LED Blinking means the data is being transmitted/received.

  • Page 12: System Description

    LINE Steady ON means the user has switched to PSTN line. OFF means the user has not switched to PSTN line. 1.3.3 System Description Table 1-3 System description for VG 10-10/10-11 Item VG 10-10 VG 10-11 Two 10/100 M Ethernet...

  • Page 13: Port Attributes

    Flash (Flash memory) is used to save program files, configuration files and so on. 1.3.4 Port Attributes VG 10-10/VG 10-11 provides 10/100 M Ethernet ports, analog PHONE port and LINE port (LINE, VG 10-11). The port attributes are listed in the following table.

  • Page 14: Rst Button Attributes

    Connector RJ-11 Number of ports Cable type Phone line 1.3.5 RST Button Attributes VG 10-10/10-11 provides one RST (reset) button. The attributes of the button are listed in the following table. Table 1-7 RST button attributes Attribute Description Position In the hole at the left side of the VG rear panel...

  • Page 15: Chapter 2 Device Installation

    Chapter 2 Device Installation Chapter 2 Device Installation 2.1 Installation Precautions Reserve more than 10 cm (4 in.) of clearance around the VG 10-10/10-11 for heat dissipation. Fix the device and power adapter well if mount them on the wall.

  • Page 16: Connecting To Lan Or Internet

    Connect the VG 10-10/10-11 and the power socket via special power adapter. Power on the device. After powering on the VG 10-10, the PWR LED keeps on steadily and the SYS LED keeps blinking; after powering on the VG 10-11, the PWR LED keeps on steadily.

  • Page 17: Chapter 3 Web Configuration Guide

    TCP/IP protocol is enabled 3.1.2 Network Configuration Requirements The initial IP address of Ethernet port on VG 10-10/10-11 is 192.168.1.1 and the subnet mask is 255.255.255.0. Before accessing the configuration page, configure the IP address of PC to be in the same subnet with VG 10-10/10-11.

  • Page 18: Login

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 3 Web Configuration Guide 3.2 Login Run the Internet Explorer. Type the IP address of the device “http:// xxx. xxx. xxx. xxx" in the address bar and press <Enter>, then the Web login page will appear. VG 10-10/10-11 provides Chinese and English Web pages;...

  • Page 19: Overview On Configuration Web Page

    H3C VG 10-10/10-11 Voice Gateway Chapter 3 Web Configuration Guide The default factory setting user information of VG 10-10/10-11 is listed in Table 3-2. It is recommended that you change the password for the first login, refer to 4.2.3 Modifying User Password for related details.
  • Page 20 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 3 Web Configuration Guide gateway. Figure 3-2 VG 10-10/10-11 configuration Web page...

  • Page 21: Chapter 4 Vg Configuration

    H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Chapter 4 VG Configuration 4.1 Introduction to VG Configuration The configuration of VG 10-10/10-11 voice gateway can be classified into four parts: Basic configuration Advanced configuration System management Device information query...
  • Page 22 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Configuration Step Description Detail Type item Select “Provision -> VG Config” navigation configure the advanced parameters of the voice gateway correctly. VG configuration 4.3.1 Optional The configuration items include dial interval, dial...

  • Page 23: Basic Configuration

    “Optional” items can be selected as needed. 4.2 Basic Configuration 4.2.1 Configuring IP Configuration Modes VG 10-10/10-11 supports two IP configuration modes: DHCP mode (obtains IP address dynamically) and static IP mode (specifies static IP address). I. DHCP mode You can tick the check box “Use DHCP” in the interface configuration items and click “Set Values”...
  • Page 24 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Figure 4-1 Enable DHCP client function to obtain IP address dynamically II. Static IP mode You can clear the tick on “Use DHCP” check box in the interface configuration items, and then the network parameters can be edited.

  • Page 25: Configuring Call Mode

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Configuration Description Type item Enabled with the DHCP client function, the voice gateway obtain address dynamically from the DHCP server. Use DHCP Optional After the DHCP client function is enabled, the IP address, subnet mask and the IP address of the default gateway cannot be configured.
  • Page 26 Optional with the slave GK. The GK ID can contain at most 31 characters. Call Mode Table 4-4 Description on the call modes of VG 10-10/10-11 Call Mode Operation Set the phone number of the voice gateway correctly. Then call...

  • Page 27: Modifying User Password

    Chapter 4 VG Configuration II. End to end mode In the voice network that is set up using VG 10-10/10-11, you can manage the voice calls without using GK; instead, you can make calls by dialing the IP address of the voice gateway.
  • Page 28 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration I. Password modification by administrator If you log into the voice gateway as an administrator and want to change the administrator’s password, you need to enter the old password before you change it, as shown in Figure 4-5.

  • Page 29: Restarting The Voice Gateway

    Figure 4-7 Modify the password as plain user 4.2.4 Restarting the Voice Gateway After you modify the parameters or update the version of VG 10-10/10-11, you have to restart the voice gateway to make your configuration effective. Select “Others -> Reset”...

  • Page 30: Advanced Configuration

    Figure 4-9 The voice gateway is restarting Figure 4-10 The voice gateway is restarted successfully Note: You can also use the RST button on the rear panel of the VG 10-10/10-11 to restart the voice gateway. 4.3 Advanced Configuration 4.3.1 VG Configuration The advanced configuration of voice gateway includes the dial interval, dial terminator, the input and output gain level and so on.
  • Page 31 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Figure 4-11 VG configuration items Table 4-5 Description on the configuration parameters for the voice gateway Default Item Description Caution Type value Do not set the interval short. You can set the interval...
  • Page 32 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Default Item Description Caution Type value If you do not use the GK client mode, cannot dial the “*” as dial The last character that you terminator, or can dial, which can be “#”, else you are “*”...
  • Page 33 Line party or the Hotline number Optional Number PSTN switch number PSTN. It only serves as the peer phone number in GK call mode. Caution: The VG 10-10/10-11 does not support the numbers that begin with “#” or “*”. 4-13...

  • Page 34: Advanced Call Configuration

    Configurati Description Type on item VG 10-10/10-11 deals with the voice calls. It is up to the calling party to decide whether to enable the Fast Connect mode. Ruled by Recommendation H.225.0, when the Fast Connect mode is enabled, the standard H.245 message...
  • Page 35 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Configurati Description Type on item Fax mode configuration Standard T.38 fax protocol Fax transparent transmission protocol, which can interoperate with the mainstream devices Mode in the industry when the two-party voice...

  • Page 36: System Management

    I. Upgrading the version in normal state VG 10-10/10-11 provides software upgrading function to meet the requirements for using new services. You can upgrade the software of VG 10-10/10-11 easily in the upgrading page. Figure 4-13 shows the operation page for version upgrading.

  • Page 37: Configuring Management Ip Address

    TFTP server automatically and restores the system to normal state. 4.4.2 Configuring Management IP Address For user’s convenience, VG 10-10/10-11 provides management IP address configuration. You can access the Web configuration page not only by using the IP address of the Ethernet port on the voice gateway (refer to 4.2.1 for configuration), but also by using the management IP address via LAN port.

  • Page 38: Device Information Query

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Table 4-7 Management IP address configuration Configuration Description Caution Default value Type item You can use this IP address to log into Management IP the voice gateway 192.168.192.1 Required...
  • Page 39 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration Figure 4-14 Network status query page Refer to Table 4-8 for detailed description on the parameter information. Table 4-8 Description on network status information Attribute Description Status Description Disconnected A link is disconnected.

  • Page 40: Hardware Information Query

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 4 VG Configuration 4.5.2 Hardware Information Query Select “Status -> Hardware” in the navigation bar to enter the hardware information page and you can view the device platform, CPU and the size and type of memory devices, as shown in Figure 4-15.

  • Page 41: Chapter 5 Configuration Example

    Chapter 5 Configuration Example 5.1 VG 10-10/10-11 Configuration Example 5.1.1 GK Client Application I. Network requirements The voice network built up by VG 10-10/10-11 and GateKeeper (GK) which delivers abundant voice services and functions provides flexible VoIP applications. II. Network diagram GateKeeper 192.168.10.2/24...

  • Page 42: Pstn Application

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 5 Configuration Example Configuration Step Description Type item Select “Provision -> Call Mode” in the navigation bar. Tick the “Use GateKeeper Client Mode” in the configuration items to enable the GK client. Then, configure the...
  • Page 43 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 5 Configuration Example number.) Meantime, when power is off, the voice gateway switches to the PSTN network, then you can dial the phone at the PSTN side directly. II. Network diagram GateKeeper 192.168.80.100/24...

  • Page 44: Fax Application

    Do not unplug the phone line off the LINE port during conversation via PSTN network. 5.1.3 Fax Application I. Network requirements In the user LAN network, by building up the voice network using VG 10-10/10-11 and GK, you can fax or make calls by dialing the phone number of the called voice gateway.
  • Page 45 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 5 Configuration Example II. Network diagram GateKeeper 192.168.80.100/24 192.168.80.50/24 VG A VG B PHONE 192.168.10.100/24 Router 192.168.20.100/24 PHONE FAX A FAX B 1001 2001 Figure 5-3 Fax application III. Configuration procedure Step...
  • Page 46 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 5 Configuration Example Step Configuration item Description Type Configuration on VG B Select “Provision -> Interface” Obtains IP address navigation bar. Tick “Use Required dynamically (DHCP) DHCP” to enable the DHCP, so as to obtain IP address dynamically.

  • Page 47: Chapter 6 Appendix

    Chapter 6 Appendix Chapter 6 Appendix 6.1 Command Line Interface VG 10-10/10-11 voice gateway provides basic maintenance commands for administrators (admin). You can perform basic maintenance and query system information of the voice gateway by using Command Line Interface (CLI).

  • Page 48: Command Line Information

    User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 6 Appendix 6.1.3 Command Line Information Table 6-1 Command line list Command Description Test the IP network connection and whether the route to the host is reachable. ping <addr> <count> addr is the destination IP address.
  • Page 49 User Manual H3C VG 10-10/10-11 Voice Gateway Chapter 6 Appendix ROUTE NET TABLE Destination Gateway Flags Refcnt Use Interface -------------------------------------------------------------------- 0.0.0.0 172.31.6.41 0x103 bcm0 172.31.0.0 172.31.0.3 0x101 bcm0 192.168.192.0 192.168.192.10 0x101 bcm0 -------------------------------------------------------------------- ROUTE HOST TABLE Destination Gateway Flags Refcnt Use...

  • Page 50: Troubleshooting

    The problem of the cable: Connect the two ends of the network cable to the LAN port and WAN port of VG 10-10/10-11 respectively and check the LAN LED and WAN LED on the front panel. If they do not light, the cable must have problem, and you need to change a new one.
  • Page 51 Check that: The phone set is correctly connected to the corresponding port on the VG 10-10/10-11. Reconnect the cable between the phone set and VG 10-10/10-11 to ensure full contact. The Ethernet port on VG 10-10/10-11 is connected properly. VI. When having conversation with PSTN users using VG 10-11, if the external...

  • Page 52: Product Features And Specifications

    If the GK client mode is enabled, check whether the local gateway and the peer gateway have registered with the GK successfully. 6.3 Product Features and Specifications Table 6-3 VG 10-10/10-1 software features and specifications Item Description ITU-T H.323 IEEE 802.3 /802.3 u...
