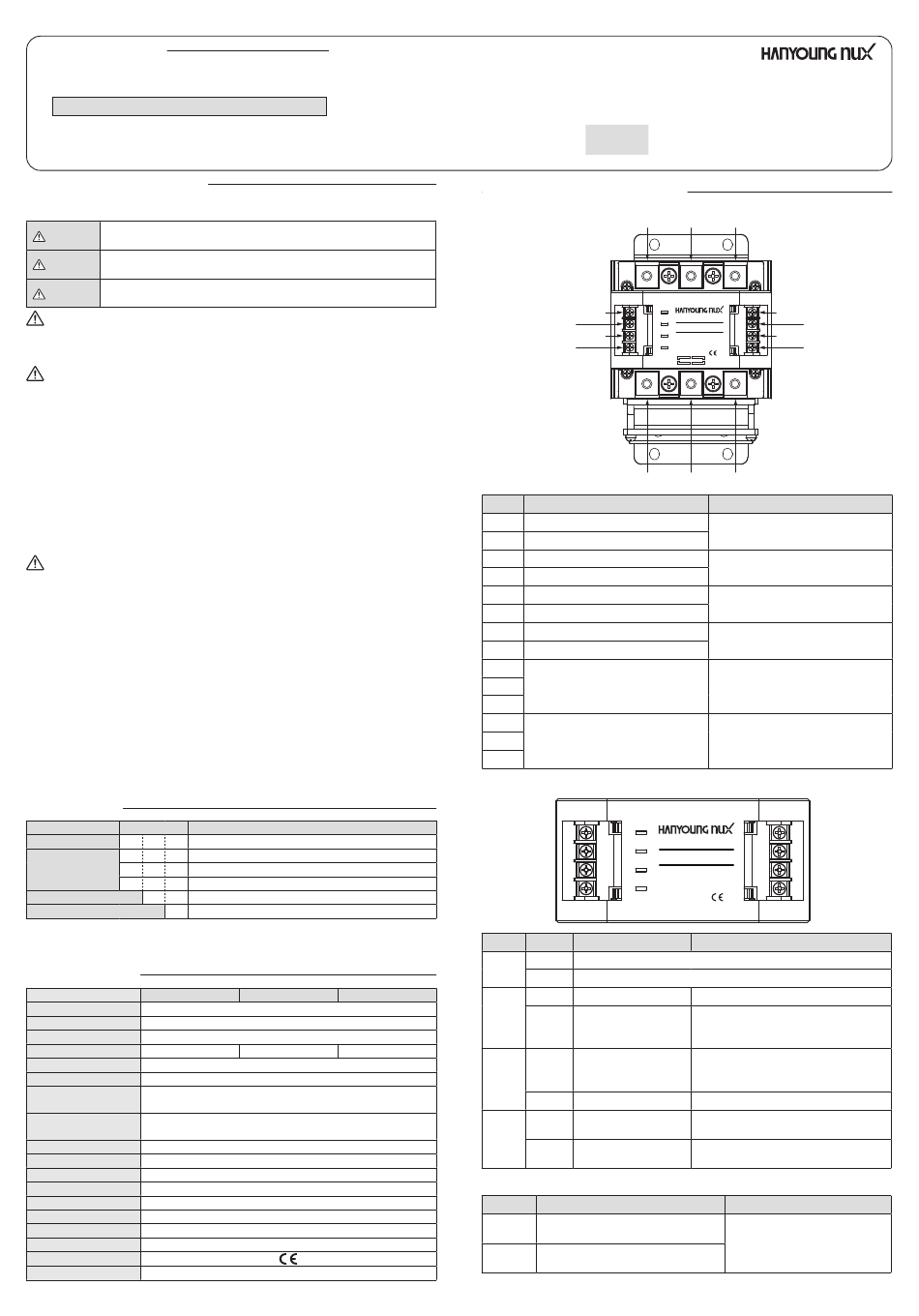

HANYOUNG NUX TPR-3M Instruction Manual

TPR-3M
Power REGULATOR
INSTRUCTION MANUAL
Thank you for purchasing HANYOUNG product.
Please check whether the product is the exactly same as you ordered.
Before using the product, please read this instruction manual carefully.
Please keep this manual where you can view at any time
Safety information
Before using the product, please read the safety information thoroughly and use it properly.Alerts
declared in the manual are classified to Danger, Warning and Caution by their criticality
DANGER indicates an imminently hazardous situation which,
DANGER
if not avoided, will result in death or serious injury
WARNING indicates a potentially hazardous situation which,
WARNING
if not avoided, could result in death or serious injury
CAUTION indicates a potentially hazardous situation which,
CAUTION
if not avoided, may result in minor or moderate injury
Danger
• To prevent electric shock while it is running, put to earth with the fixed screw of the unit and
do not touch the radiator panel since it is very hot.
• Do not touch or contact the input/output terminals because they cause electric shock.
Warning
• Please install appropriate protective circuit on the outside if malfunction or an
incorrect operation may be a cause of leading to a serious accident.
• If you use the product with methods other than specified by the manufacturer,
there may be bodily injuries or property damages.
• Since this product is not designed as a safety device if it is used with systems,
machines and equipment that could lead to a risk of life or property damage,
please implement safety devices and protections for both lives and the
applications and plan for preventing accidents.
• To prevent damage or failure of this product, please supply the rated power voltage.
• To prevent electric shock or equipment failure,
please do not turn on the power until completing wiring.
• Never disassemble, modify, or repair the product.
There is a possibility of malfunction, electric shock, or a risk of fire.
• Please turn off the power when mounting / dismounting of the product. This is a cause of
electric shock, malfunction, or failure.
Caution
• Since the product operating environment influences the product performance and expected life span,
please avoid using in the following places.
· a place where humidity is high and air flow is inappropriate.
· a place where dust or impurity accumulates, ambient temperature is high and vibration level is high.
· a place where corrosive gas (such as harmful gas, ammonia, etc.) and flammable gas occur.
· a place where there is direct vibration and a large physical impact to the product.
· a place where there is water, oil, chemicals, steam, dust, salt, iron or others (Contamination class 1 or 2).
· a place where excessive amounts of inductive interference and electrostatic and magnetic noise occur.
· a place where heat accumulation occurs due to direct sunlight or radiant heat.
• Please do not wipe this product with organic solvents such as alcohol, benzene and others.
(Please use mild detergent)
• Please make sure to inspect the product if exposed to water since there is a possibility
of electric leakage or a risk of fire.
• Please connect the product and other units after turning off all the power of the product,
instruments and units.
• Please make sure that the power control (TPR) is installed perpendicularly.
• Please install the product inside of the control panel and install an exhaust fan onto the top of the
control panel.
• Pay attention to the edge of heat sink which is sharp.
Suffix code
Model Code
TPR-3M □ □ -□ Slim 3-phase miniature power regulator
25 25 A
Load current 45 45 A
55 55 A (Made-to-order, inquire for pricing)
Load voltage L 90 - 240 V a.c. (Low)
Option IS Power isolated type
※ Option IS type is a product that can connect up to 5 in series with one temperature
controller and power supply (SMPS). The general type requires a 1 to 1 connection to
the temperature controller with a 24 V d.c. partial power circuit as a non-isolated type.
Specification
Model TPR-3M25L
Load voltage
Circuit operating power
Power frequency
Rated current 25 A
Applying load
Control Input
Phase control (Fixed Cycle control, Variable Cycle control
Control method
More than 98 % of the power supply voltage
Output voltage
Cooling method
Display method
Insulation resistance
Dielectric strength
Line noise
Storage temperature
Ambient temperature
Ambient Humidity
Approval
Weight
Information
TPR-3M45L TPR-3M55L
90 - 240 V a.c.
24 V d.c. 8 W
50 / 60 Hz
45 A
Resistive load
4 - 20 ㎃ d.c. (Impedance : 100 Ω)
Option)
(In case of maximum current input)
Forced cooling (24 V d.c. FAN)
4 LED display status and alarm status
Min 100 MΩ (Base on 500 V d.c. mega)
2,500 V a.c. 50 / 60 Hz for 1 min
Noise by noise simulator (2,000 V)
-30 ~ 90 ℃
-20 ~ 80 ℃ (Without Condensation)
45 ~ 85 % RH
1,756 g
Part name and function
Number
No. 1 Control input terminal (4 - 20 mA +)
No. 2 Control input terminal (4 - 20 mA －)
No. 3 Circuit power supply (24 V d.c. +)
No. 4 Circuit power supply (24 V d.c. －)
No. 5
No. 6
No. 7
No. 8
No. 9
No. 10
No. 11
No. 12
No. 13
No. 14
█ LED indicator and description
LED Status
Flashing
POWER
Light on
Flashing
EMG
Light on
55 A
Flashing
HB
Light on
Flashing
OT
Light on
█ Explanation for alarm output
Alarm
Forced shutdown
Alarm1
(alarm output, LED display)
Normal operation
Alarm2
(alarm output, LED display)
3
HANYOUNGNUX CO.,LTD
HEAD OFFICE/
28, Gilpa-ro 71beon-gil, Michuhol-gu, Incheon, Korea
FACTORY
TEL : +82-32-876-4697 FAX : +82-32-876-4696
http://www.hanyoungnux.com
⑨ ⑩ ⑪
①
POWER
Thyristor Power Regulator
②
TPR-3M25L
EMG
③
~
LOAD : 100 - 240 V
HB
④
Maximum rated current : 25A
OT
MADE IN KOREA
⑫ ⑬ ⑭
Name
temperature controller, PLC, and etc
Power input for circuit drive with
Alarm1 (Middle alarm) +
Alarm terminal to PLC, relay, etc
Alarm1 (Middle alarm) －
Alarm2 (Light alarm) +
Alarm terminal to PLC, relay, etc
Alarm2 (Light alarm) －
R, S, T load power input
U, V, W load terminal
(Delta connection, Y connection, etc)
POWER
Thyristor Power Regulator
TPR-3M25L
EMG
~
LOAD : 100 - 240 V
HB
Maximum rated current : 25A
OT
MADE IN KOREA
Alarm
When 4 - 20 mA control input is applied
When 24 V d.c. power is applied separately
Over current (Alarm2) Over 55 A over current
During operation (output is going out)
Power failure (Alarm2) when load power applied to
TPR is cut off
When the deviation of the maximum and
Load imbalance
minimum values of load connected to
(Alarm2)
U, V, W is more than 10 A
SCR error (Alarm1) When the input current is 0 % (4 mA).
Heat sink overheated When the heat sink temperature is
60 ℃ (Alarm2) above 60 ℃
Heat sink overheated When the heat sink temperature is
80 ℃ (Alarm1) above 80 ℃
TPR status
(High signal at abnormal detection)
MB0801KE230515
⑤
⑥
⑦
⑧
Description
Current input terminal from
power supply(SMPS) and etc
3 Phase AC load power input
3 phase load connection
Description
Alarm output
NPN transistor open
collector output
