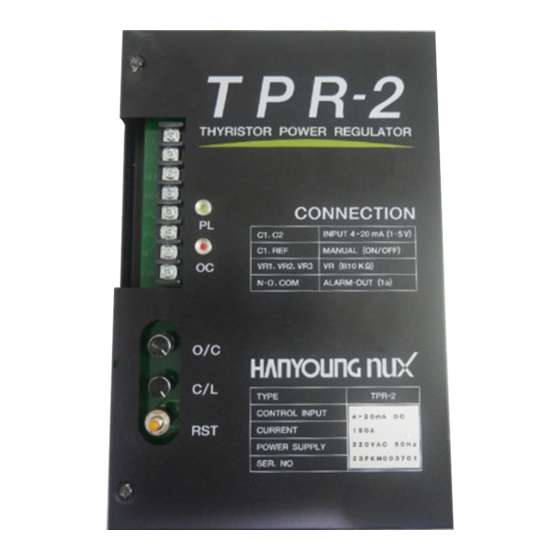

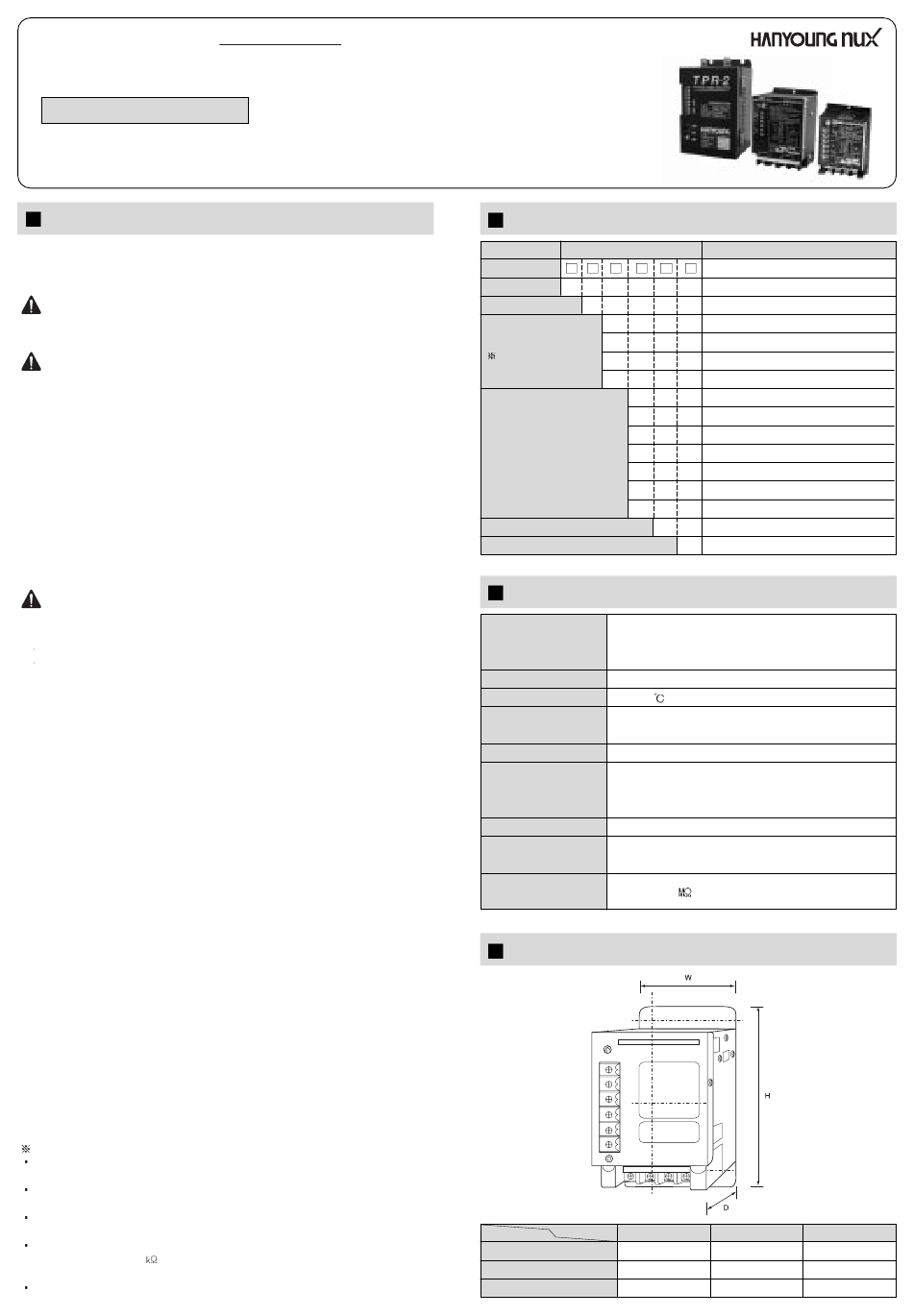

HANYOUNG NUX TPR-2 Instruction Manual

Thyristor Power Regulator
TPR-2
INSTRUCTION MANUAL
We appreciate you for purchasing HanYoung NUX Co.,Ltd
product. Before using the product you have purchased,
check to make sure that it is exactly what you ordered. Then,
please use it following the instructions below.
Safety information
Before you use, read safety precautions carefully, and use this product properly.
The precautions described in this manual contain important contents related with
safety; therefore, please follow the instructions accordingly. The precautions are
composed of DANGER, WARNING and CAUTION.
DANGER
There is a danger of occurring electric shock in the input/output terminals so
please never let your body or conductive substance is touched.
WARNING
1. If this product is used with the machinery which may be caused human injury
or serious property damage then use it after surely installing the protection
equipment for two or three times.
2. To prevent defection or malfunction of this product, apply a proper power
voltage in accordance with the rating.
3. To prevent electric shock or malfunction of product, do not supply the power
until the wiring is completed.
4. Do not decompose, modify, revise or repair this product. This may be a cause
of malfunction, electric shock or fire.
5. Reassemble this product while the power is OFF. Otherwise, it may be a
cause of malfunction or electric shock.
6. If you use the product with methods other than specified by the manufacturer,
there may be bodily injuries or property damages.
7. There is a possibility of occurring electric shock so please use this product
after installing it onto a panel while it is operating.
CAUTION
1. The place of operating this product affect to the its functions and life cycle so
that avoid to use it in the following circumstance.
A place of having high humidity and not circulating air
A place of piling up dust or impurity or having high ambient temperature or
high vibration
2. The contents of this manual may be changed without prior notification.
3. Before using the product you purchased, make sure that it is exactly what you
ordered.
4. Make sure that there is no damage or abnormality of the product during the
delivery.
5. After turning OFF power sources of all instruments, please wire them.
6. The Thyristor Power Regulator should be installed perpendicularly.
7. Install exhausting fan in internal and upside of the panel.
8. Tighten BOLT of the input and output wire enough.
9. Distribute the load equally.
10. Do not use this product at any place with corrosive (especially noxious gas or
ammonia) or flammable gas.
11. Do not use this product at any place with direct vibration or impact.
12. Do not use this product at any place with liquid, oil, medical substances, dust,
salt or iron contents. (Use at Pollution level 1 or 2)
13. Do not polish this product with substances such as alcohol or benzene. (Use
neutral detergent.)
14. Do not use this product at any place with a large inductive difficulty or
occurring static electricity or magnetic noise.
15. Do not use this product at any place with possible thermal accumulation due
to direct sunlight or heat radiation.
16. Install this product at place under 2,000 m in altitude.
17. When the product gets wet, the inspection is essential because there is
danger of an electric leakage or fire.
18. Do not connect anything to the unused terminals.
19. After checking the polarity of terminal, connect wires at the correct position.
20. For the continuous and safe use of this product, the periodical maintenance is
recommended.
21. Some parts of this product have limited life span, and others are changed by
their usage.
22. The warranty period for this product including parts is one year if this product
is properly used.
How to Operate
When installing the unit, the input and output terminals should be attached in
the direction of facing downward perpendicularly for the natural cooling.
Make sure that install high-speed breaking fuse between terminal R and power
source.
By the internal volume, the output voltage can be limited. (Only if the external
volume is not connected)
When the output voltage limitation setting is externally used, connect the
external volume (B 10 1 W) to VR1, VR2, VR3 terminals. At this time, make
sure that the internal volume should be set at max (INC side).
When using without the external signal (when a temperature controller is not
used), please connect ref terminal and C1 (+) terminal.
MAIN PRODUCTS
- DIGITAL : Temperature Controller, Counter, Timer,Speedmeter,
Tachometer, Panel Meter, Recorder
- SENSOR : Proximity Sensor/Photo Electric Sensor,
Rotary Encoder, Optical Fiber Sensor,
Pressure Sensor
- ANALOG : Timer, Temperature Controller
HEAD OFFICE
1381-3, Juan-Dong, Nam-Gu Incheon, Korea
TEL: (82-32)876-4697 FAX : (82-32)876-4696
Model and Suffix code
Model Name
TPR-
Phase
Control Method
Power Supply
(AC 60 Hz)
25A of TPR-2 are
only available 110 V
and 220 V.
Rated Current
Input Method
Load Characteristic
Ratings
Power Supply
Rated Current
Ambient temperature
Protection Circuit
Applied Load
Control Input
Output Voltage
Cooling Method
Insulation
Resistance
Aspect Dimension
Capacity
25 A
35 A, 50 A, 70 A
100 A, 150 A, 200 A
Suffix Code
Single Phase
2
Phase
P
Control
110
110 V
220
220 V
380 380 V
440 440 V
25 25 A
35 35 A
50 50 A
70 70 A
100 100 A
150 150 A
200 200 A
M 4 ~ 20 mA
R Resistive Load
110 V AC, 220 V AC, 380 V AC, 440 V AC, 60Hz
(But, 25 A of TPR-2 are only available 110 V and
220 V)
25 A, 35 A, 50 A, 70 A, 100 A, 150 A, 200 A
0 ~ 50 (humidity below 90 %)
Above 100 A protected by high - speed breaking
fuse
Resistive Load
Current Input : 4 ~ 20 mA DC, Voltage
Input : 1 ~ 5 V DC
Contact Input : ON-OFF
Above 97 % of input voltage
Natural Cooling, forced cooling by fan for above
100 A
Above 200 (500 V mega)
Dimension
W
86
126
165
MB0101E050907
Description
[Unit : mm]
D
H
130 63
190 116
305 170
