Lowry / Mitchell / Fulton
Sideboard Buffet with Wine Rack
Model # AXCLRY-12DCB
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXCLRY-12DCB and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME AXCLRY-12DCB

Summary of Contents for SIMPLIHOME AXCLRY-12DCB

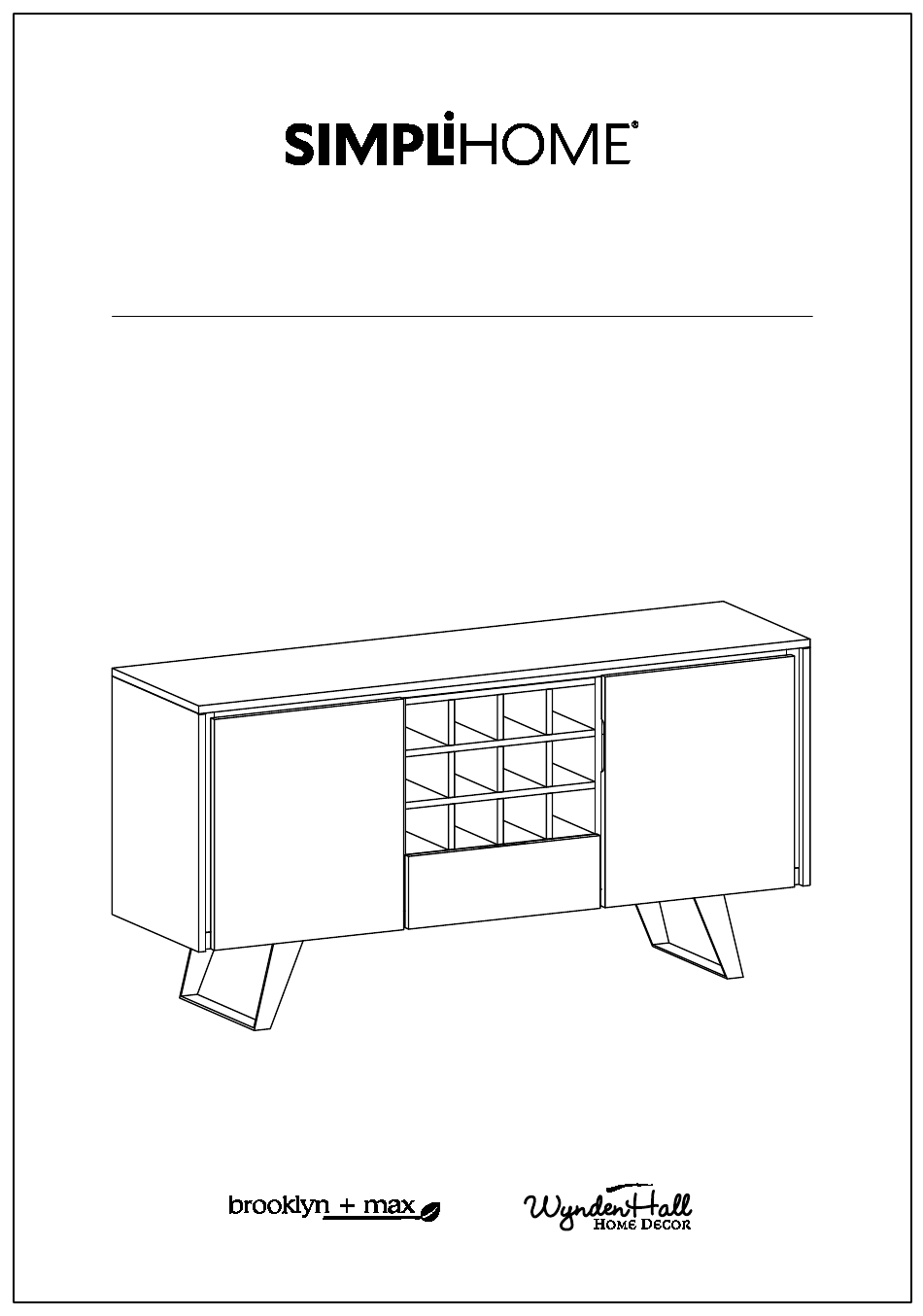

  • Page 1 Lowry / Mitchell / Fulton Sideboard Buffet with Wine Rack Model # AXCLRY-12DCB...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 7 Pre-Assembly Information Model # AXCLRY-12DCB Part Description LEFT SIDE BOTTOM FRAME QTY 1 QTY 1 QTY 1 RIGHT SIDE LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 TOP SHELF MIDDLE SHELF BOTTOM SHELF QTY 1 QTY 2 QTY 1...
  • Page 8 Pre-Assembly Information Model # AXCLRY-12DCB Part Description Warning Label TOP BACK PANEL BOTTOM BACK PANEL SHELF QTY 1 QTY 1 QTY 2 DRAWER FRONT JOINING STRIP LEFT DRAWER SIDE QTY 1 QTY 1 QTY 1 RIGHT DRAWER SIDE DRAWER BACK...
  • Page 9 Pre-Assembly Information Model # AXCLRY-12DCB Hardware Description LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY SCREW M8 x 20 mm M6 X 30mm Ø12 / Ø8 x 1.5 mm Ø19 / Ø8 x 1 mm QTY 12 QTY 38 QTY 12...
  • Page 10 Components - Key Diagram Model # AXCLRY-12DCB...
  • Page 11 Assembly Model # AXCLRY-12DCB Step 1 1. Attach four Cam Lock Pins 14 into pre-drilled holes on Drawer Front O . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 12 Assembly Model # AXCLRY-12DCB Step 3 1. Slide Drawer Bottom R firmly into slots on Drawer Sides PL ,PR and Drawer Front O . 2. Align Drawer Back Q with Drawer Bottom R and press firmly into slot . 3. Attach Drawer Back using two Phillip Screws 4 through guide holes on each Drawer Side PL , PR .
  • Page 13 Assembly Model # AXCLRY-12DCB Step 4 1. Insert Wood Dowels 11 into guide holes on each part DL , DR , G . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 14 Assembly Model # AXCLRY-12DCB Step 5 1. Align Wood Dowels with guide holes on Dividers DL , DR and attach Bottom Shelf G to Dividers DL , DR. 2. Use three Allen Key Screws 4 to attach each Divider DL , DR through guide holes.
  • Page 15 Assembly Model # AXCLRY-12DCB Step 7 1. Repeat Step - 6 for the rest parts H and F . Step 8 1. Align Wood Dowels with guide holes on Top Shelf E and attach Top Shelf E to Dividers H .
  • Page 16 Assembly Model # AXCLRY-12DCB Step 9 1. Insert Wood Dowels 11 into guide holes on each part B , CL , CR . 2. Use rubber mallet to tap Dowels 11 into bottom of holes securely. 1/2 length of Dowels should be exposed.
  • Page 17 Assembly Model # AXCLRY-12DCB Step 10 1. Align Wood Dowels with guide holes on Bottom Frame B and attach Dividers DL , DR to Bottom Frame B . 2. Use six Allen Key Screws 4 to attach Bottom Frame B through guide holes.
  • Page 18 Assembly Model # AXCLRY-12DCB Step 11 1. Align Wood Dowels with guide holes on sides CL , CR and attach Sides CL , CR to Bottom Frame B . 2. Use six Allen Key Screws 4 to attach Bottom Frame B through guide holes.
  • Page 19 Assembly Model # AXCLRY-12DCB Step 12 1. Align Wood Dowels with guide holes on Top A and attach parts CL , CR , DL , DR to Top A . 2. Use three Allen Key Screws 4 to attach each part CL , CR , DL , DR through guide holes.
  • Page 20 Assembly Model # AXCLRY-12DCB Step 13 1. Attach Legs S to Bottom Frame B . 2. Use twelve Allen Key Bolts 1 , twelve Lock Washers 2 and twelve Washers 3 to secure part B and S (six Bolts, six Lock Washers and six Washers on each Leg).
  • Page 21 Assembly Model # AXCLRY-12DCB Step 14 Warning Label NOTE: The screwdriver is not included in the hardware pack. 1. Attach the Top Back Panel L to back frame by using Phillips Screws 6 . Only 1st top row of screws to be screwed in advance.
  • Page 22 Assembly Model # AXCLRY-12DCB Step 15 1. Attach Adjustable Hinges 12 to Doors IL , IR using Phillips Screws 10 into guide holes on Doors IL , IR .
  • Page 23 Assembly Model # AXCLRY-12DCB Step 16 1. Attach Adjustable Hinges 12 on Doors IL , IR to Sides CL , CR using Phillips Screws 10 into guide holes on Sides CL , CR . 2. Attach Magnets 7 using Phillips Screws 9 into guide holes on Left Divider DL and Right Divider DR .

  • Page 24: Important Note

    Assembly Model # AXCLRY-12DCB Step 17 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1.
  • Page 25 Assembly Model # AXCLRY-12DCB Step 18 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 8 for each Shelf K in desired location . 2. Two Shelf Supports 8 may be used on back top of each Shelf K as a tipping restraint.
  • Page 26 Assembly Model # AXCLRY-12DCB Step 19 1. Insert assembled drawer into glides on assembled sideboard.
  • Page 27 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 20 NOTE: The screwdriver is not included in the hardware pack.
  • Page 28 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
