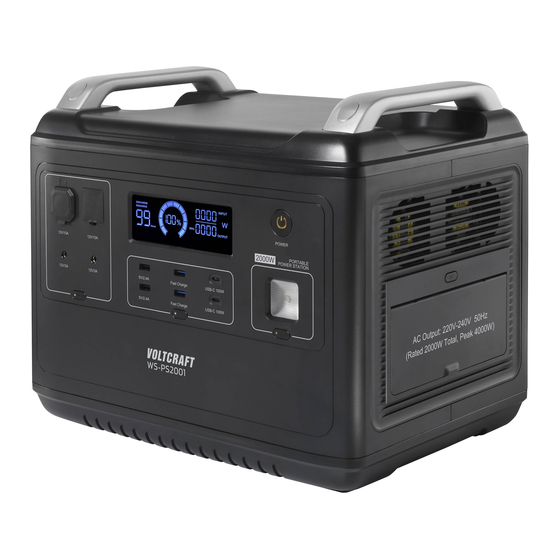

- Page 1 Operating Instructions WS-PS2001 Portable Power Station 2000 W Item no: 2619335...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............................Intended use..............................Delivery contents ............................Latest product information ..........................Description of symbols........................... Safety instructions ............................General.............................. Handling ............................Operating environment........................Charging............................Operation............................Mains cable ............................LED light............................Connected devices..........................Product overview ............................Front view............................Side views ............................Display............................... - Page 3 17 Technical data ............................... 17.1 Rechargeable battery........................17.2 Output power............................. 17.3 Protection ............................17.4 UPS (Uninterruptable power supply)....................17.5 Input ..............................17.6 DC Output ............................17.7 AC output ............................17.8 Light..............................17.9 Operating and storage environment....................17.10 Others..............................
-
Page 4: Introduction
1 Introduction Dear customer, Thank you for purchasing this product. If there are any technical questions, please contact: www.conrad.com/contact 2 Intended use The product is a portable rechargeable power station. Use the product: ■ to power mains-powered appliances (230 V/AC) ■... -
Page 5: Description Of Symbols
5 Description of symbols The following symbols are on the product/appliance or are used in the text: The symbol warns of hazards that can lead to personal injury. The symbol warns of dangerous voltage that can lead to personal injury by electric shock. This product must only be used in dry, enclosed indoor areas. -
Page 6: Charging
■ Protect the product from high humidity and moisture. ■ Protect the product from direct sunlight. 6.4 Charging ■ You are strongly advised to attend the product while it is being charged. In case of malfunction, immediately dis- connect the power supply to the product. ■... -
Page 7: Led Light
■ Do not touch the mains cable if it is damaged. – First, power down the respective mains socket (e.g. via the respective circuit breaker) and then carefully pull the mains plug from the mains socket. – Never use the product if the mains cable is damaged. ■... -
Page 8: Product Overview
7 Product overview 7.1 Front view Component Function/Description Display Power button POWER Press and hold for 3s to switch on. Press and hold for 3s to switch off. Light Light with light modes: solid, SOS, flashing, off Light button LIGHT Press to switch light on. -
Page 9: Side Views
Component Function/Description Cigarette lighter output port 12V/10A Connect and power devices via cigarette lighter cable. XT60 output port 12V/10A Connect and power DC devices via XT60 connector. WARNING! No built-in balancer. Risk of explosion! Do not connect rechargeable batteries. 7.2 Side views Component Function/Description Mains input socket... -
Page 10: Display
7.3 Display D3 D4 D9 D10 D11 D13 D14 D15 D16 D17 D18 Component Description Remaining time indicator Remaining charging time or remaining discharging time. Charging indicator Indicates if the product battery is being charged of dis- charged. Discharging indicator Fan status indicator Lights up if cooling fans run. -
Page 11: Getting Started
Component Description Light indicator Lights up if the light is activated. 8 Getting started 8.1 Switching on/off You can switch the product on and off manually via the power button. Notes: – You cannot switch the product off while the product battery is being charged. –... -
Page 12: Charging Product Battery (Input)
9 Charging product battery (Input) 9.1 Charging via mains supply (230 V/AC) The most efficient way to charge the product battery is via mains supply (230 V/AC). Note: You can charge the product battery and power connected AC appliances at the same time but the total available output power is reduced. -
Page 13: Charging Via Road Vehicle (12/24 V/Dc)
9.3 Charging via road vehicle (12/24 V/DC) You can charge the product battery with your vehicle (12 or 24 V/DC) by connecting a suitable cable to the Ander- son port. Figure 2: Car charging setup 1. Read the instructions on supplying power to external devices in the vehicle’s user manual. Make sure to observe restrictions to prevent damage or hazards. -
Page 14: Powering Devices (Output)
10 Powering devices (Output) 10.1 Connecting devices The product can power AC and DC powered devices. Connect your device to a port that meets the voltage and power requirements of the device. 1. Switch off the device. 2. Select a port on the product that meets the requirements of your device you want to power. Refer to the “Tech- nical data”... -
Page 15: Using As Ups (Uninterruptible Power Supply)
11 Using as UPS (uninterruptible power supply) You can set the product up as an uninterruptible power supply (UPS) that allows you to power mains-powered devices during power outages. If a power outage occurs, the product will switch to UPS mode and temporarily take over the power supply. -
Page 16: Configuring Parameters
12 Configuring parameters 12.1 Configuring AC output voltage (220/230 V/AC) Depending on the requirements of your appliance, you can set the AC output voltage to either 220 V/AC or 230 V/AC. 1. Quickly press the AC output activation button 10 times to change voltages. à... -
Page 17: Troubleshooting
13 Troubleshooting Problem Possible cause Suggested solution Input overload protection 1. Press and hold the power button for 3 seconds to switch AC input symbol was triggered. the product off. flashing. 2. Disconnect all consumers that are connected to the product. -
Page 18: Cleaning
14 Cleaning Important: – Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions. They damage the hous- ing and can cause the product to malfunction. – Do not immerse the product in water. 1. Switch the product off. 2. -
Page 19: Technical Data
17 Technical data 17.1 Rechargeable battery Unit Value Battery type LiFePO4 Rated battery voltage 51.2 Battery capacity Charging methods Mains supply, solar, road vehicle Approx. charging duration - mains supply 17.2 Output power Unit Value Off-grid rated power (total) 2000 Off-grid peak power (total) 4000 17.3 Protection... -
Page 20: Input
17.5 Input AC input port Unit Value Number of ports Input voltage V/AC 220 - 240 Input voltage frequency Rated power 1100 Anderson input port Unit Value Number of ports Input voltage V/DC 11.5 - 50 PV input voltage V/DC 11.5 - 50 Max. -
Page 21: Ac Output
USB-A output port (5 V / 2.4 A) Unit Value Number of ports Output voltage V/DC Output current Max. output power USB-A output port (Fast Charge) Unit Value Number of ports Output voltage/current V/DC, A 5 V/DC, 3 A; 9 V/DC, 2A; 12 V/DC, 1.5 A Max. -
Page 22: Operating And Storage Environment
17.9 Operating and storage environment Unit Value Operating temperature - Charging °C 0 to +45 Operating temperature - Discharging °C -18 to +45 Operating humidity (non-condensing) % RH 10 - 90 Storage temperature °C 0 to +25 Storage humidity (non-condensing) % RH 10 - 90 17.10 Others... - Page 24 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is pro- hibited.
