VOLTCRAFT SPS-2000B- Switched-Mode Power Supply Manual

INTENDED USE

This product is designed to supply power for USB devices such as iPods™ and iPhones™. Up to four consumer loads can be supplied with voltage at the same time. The connected load's current consumption must not exceed the maximum output rating of the product. Power is supplied via a standard mains socket (100 - 240 V/AC, 50/60 Hz). The product should only be used in dry indoor areas. The product features both short-circuit and overload protection.

This product fulfils European and national requirements related to electromagnetic compatibility (EMC). CE conformity has been verified and the relevant statements and documents have been deposited at the manufacturer.

Unauthorised conversion and/or modification of the device are inadmissible because of safety and approval reasons (CE). Any usage other than described above is not permitted and can damage the product and lead to associated risks such as short-circuit, fire, electric shock, etc. Please read the operating instructions thoroughly and keep them for further reference.

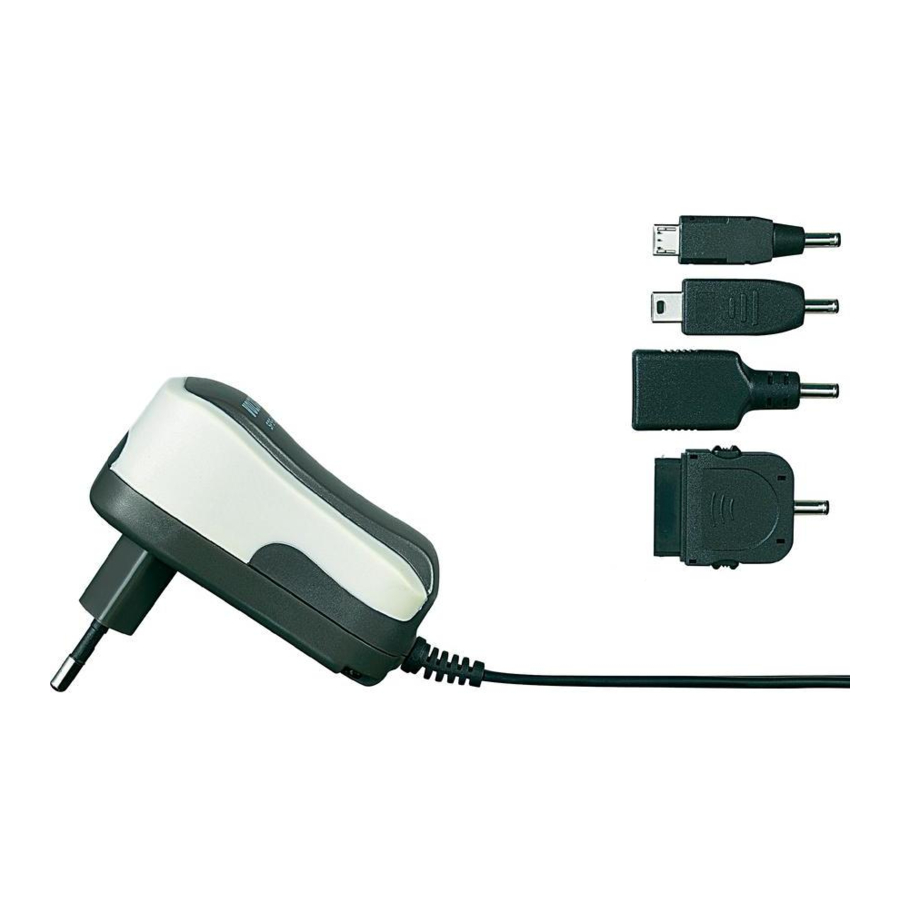

CONTENT Of DELIVERY

• Power supply
• Adapter cable
• 4 x adapter
• Operating instructions

SAFETY INSTRUCTIONS

We do not assume liability for resulting damages to property or personal injury if the product has been abused in any way or damaged by improper use or failure to observe these operating instructions. The warranty/ guarantee will then expire!

The icon with exclamation mark indicates important information in the operating instructions. Carefully read the whole operating instructions before operating the device, otherwise there is risk of danger.

Persons / Product

• The product is not a toy and should be kept out of reach of children!
• When used in conjunction with other devices, observe the operating instructions and safety notices of connected devices.
• The product must not be subjected to heavy mechanical stress.
• The product must not be exposed it to extreme temperatures, direct sunlight, intense vibration, or dampness.
• Never touch the device with wet or moist hands. There is a danger of electrocution.
• On commercial premises, the accident prevention regulations of the relevant professional insurance association for electrical systems and operating materials are to be observed.
• Operation in unfavourable ambient conditions is not permitted. Adverse ambient conditions are:
  • moisture or excessive humidity
  • dust and combustible gases, vapours or solvents
• Since the device generates heat when operating, ensure that it is adequately ventilated. The housing must not be covered!
• If you have reason to assume that safe operation is no longer possible, then disconnect the device immediately and secure it against inadvertent operation. It can be assumed that safe operation is no longer possible if:
  • the device is visibly damaged,
  • the device no longer functions
  • it has been stored for long periods of time under unfavourable conditions or
  • it has been subject to considerable stress in transit.
• Never switch the device on immediately after having taken it from a cold to a warm environment. Under adverse conditions, the resulting condensation could destroy the device. Allow the device to reach room temperature before switching it on.
• Power units are not designed for application to human beings or animals.

Miscellaneous

• Repair works must only be carried out by a specialist/ specialist workshop.
• If you have queries about handling the device, that are not answered in this operating instruction, our technical support is available under the following address and telephone number: Voltcraft^®, 92242 Hirschau, Lindenweg 15, Germany, phone 0180 / 586 582 7

OPERATION

• Periodically check the technical safety of the device, e.g. check for damage to the housing etc.
• Always lay the cable so that nobody can trip over or become entangled in it. This poses a risk of injury.
• The power supply unit's output voltage must match the input voltage of the electric consumer.

1. Connect the adapter cable with the power supply unit's output cable.
2. Select the plug adapter which fits your consumer load. Connect the plug adapter to one of the four sockets of the adapter cable.
   → You can connect up to max. four consumer loads at the same time. But make sure that the current consumption of all connected loads does not exceed 2 A.
3. Connect the adapter plug to the switched-off consumer.
4. Connect the mains plug to a standard mains socket (100 - 240 V/AC, 50/60 Hz). The LED on the top of the power supply unit indicates operational readiness.
5. Now switch the connected consumer on. If it does not function properly, switch it off immediately and disconnect it from the power supply unit.
6. To remove the consumer, proceed in reverse sequence.
7. Remove the power supply unit from the mains when it is no longer in use.

MAINTENANCE

When cleaning, the power supply must be disconnected from mains socket and electrical loads. Only use dry and soft cloth to clear the housing of the power supply. Do not use abrasive or solvents!

TROUBLESHOOTING

DISPOSAL

In order to preserve, protect and improve the quality of environment, protect human health and utilise natural resources prudently and rationally, the user should return unserviceable product to relevant facilities in accordance with statutory regulations.

The crossed-out wheeled bin indicates the product needs to be disposed separately and not as municipal waste.

TECHNICAL DATA

Adapter plugs

	Micro USB
	Mini USB
	USB female
	iPod™, iPhone™
